Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement (Chevrolet Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

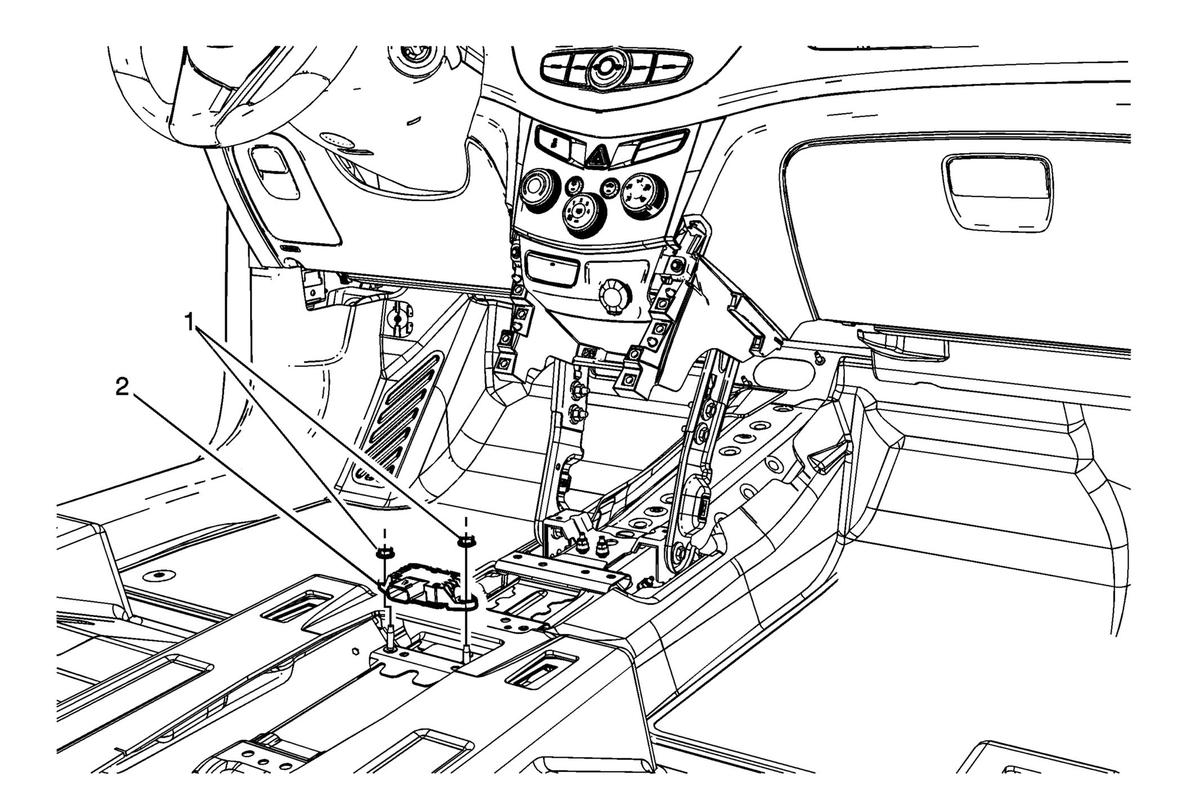

Fig 1: Vehicle Yaw Sensor with Vehicle Lateral Accelerometer (Chevrolet Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement (Chevrolet) .
1	Vehicle Yaw Sensor Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Procedure Disconnect the electrical connector. After the installation is complete, configure the yaw sensor. Refer to Service Programming System (SPS) . After the installation is complete, perform the Vehicle Yaw Sensor Learn .

Callout

Component Name

Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement (Chevrolet) .

Vehicle Yaw Sensor Nut (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Vehicle Yaw Sensor with Vehicle Lateral Accelerometer

Procedure

Disconnect the electrical connector.
After the installation is complete, configure the yaw sensor. Refer to Service Programming System (SPS) .
After the installation is complete, perform the Vehicle Yaw Sensor Learn .
