Rear Side Door Window Switch Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

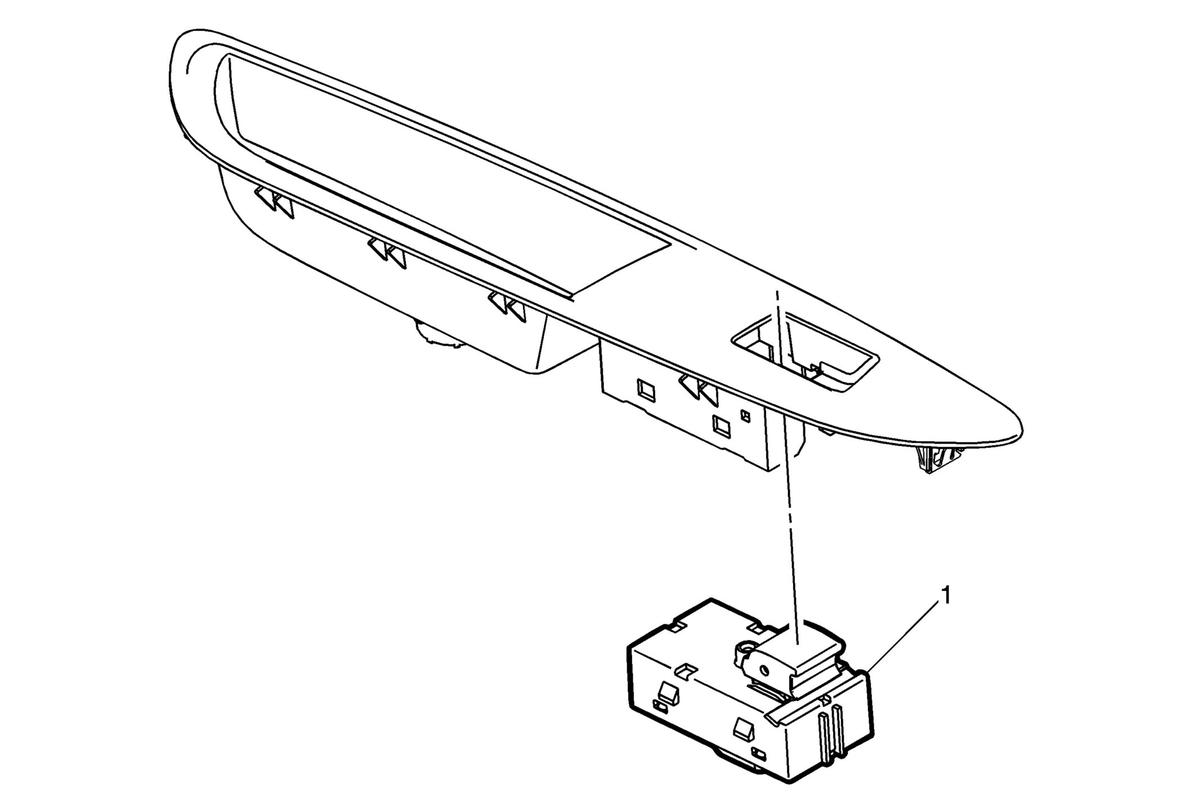

Fig 1: Rear Side Door Window Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door accessory switch mount plate. Refer to Rear Side Door Accessory Switch Mount Plate Replacement (Encore)Rear Side Door Accessory Switch Mount Plate Replacement (Trax) .
1	Rear Side Door Window Switch Assembly Procedure Release the tabs on switch to remove from the rear side door accessory switch mount plate. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the rear side door accessory switch mount plate. Refer to Rear Side Door Accessory Switch Mount Plate Replacement (Encore)Rear Side Door Accessory Switch Mount Plate Replacement (Trax) .

Rear Side Door Window Switch Assembly

Procedure

Release the tabs on switch to remove from the rear side door accessory switch mount plate.
Refer to Control Module References for programming and set up procedures.
