Rear Side Door Accessory Switch Mount Plate Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

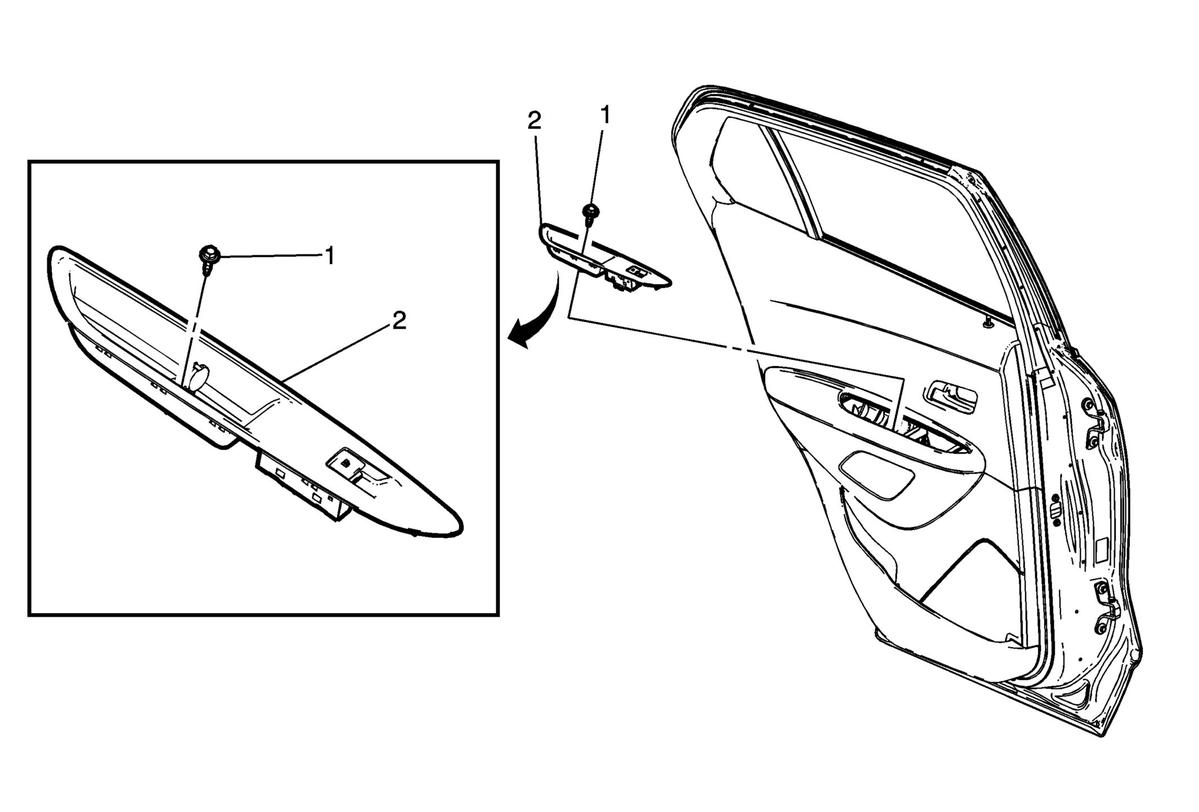

Fig 1: Rear Side Door Accessory Switch Mount Plate (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Accessory Switch Mount Plate Fastener CAUTION: Refer to Fastener Caution . Procedure Use a flat-bladed tool to open the rear side door trim integral cap to access the fastener.
2	Rear Side Door Accessory Switch Mount Plate Assembly Procedure Starting from the front portion of the switch mount plate, use a flat-bladed plastic trim tool in order to release the rear side door accessory switch mount plate from the door trim assembly. Disconnect the electrical connector, if equipped. Transfer parts as necessary.

Callout

Component Name

Rear Side Door Accessory Switch Mount Plate Fastener

CAUTION:

Refer to Fastener Caution .

Procedure
Use a flat-bladed tool to open the rear side door trim integral cap to access the fastener.

Rear Side Door Accessory Switch Mount Plate Assembly

Procedure

Starting from the front portion of the switch mount plate, use a flat-bladed plastic trim tool in order to release the rear side door accessory switch mount plate from the door trim assembly.
Disconnect the electrical connector, if equipped.
Transfer parts as necessary.
