Rear Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

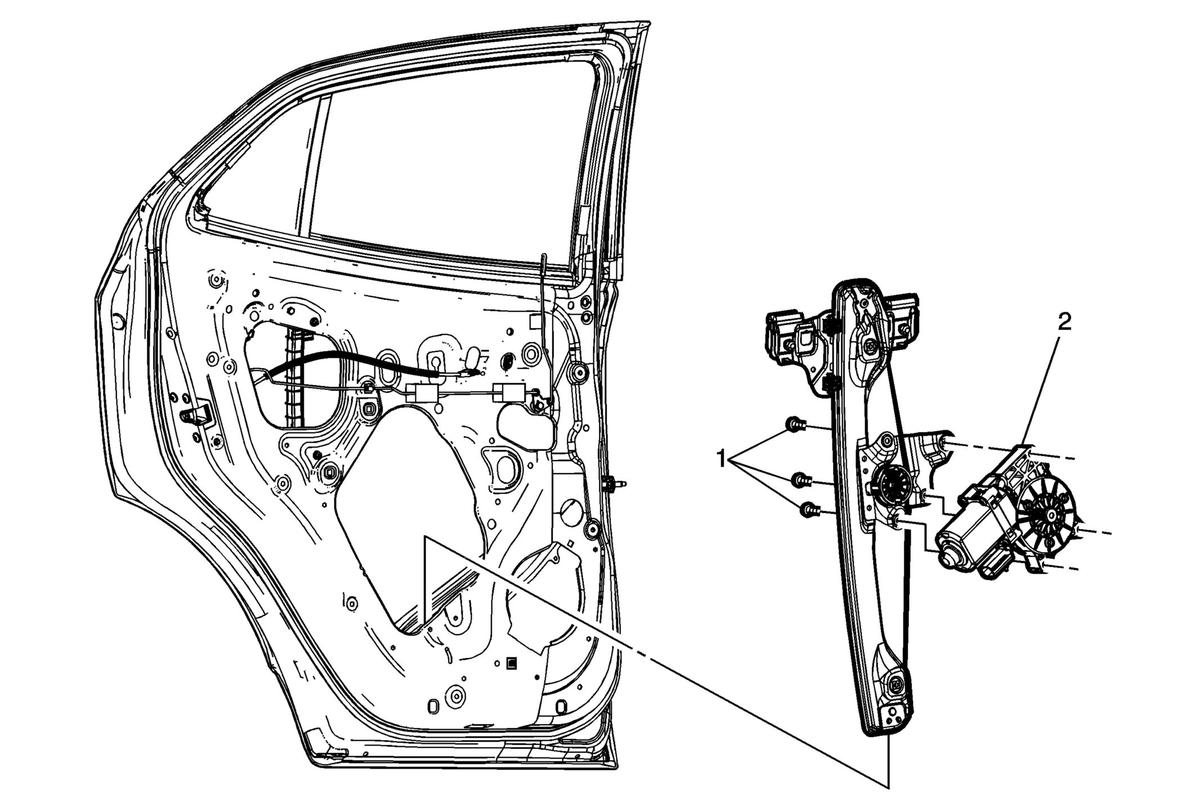

Fig 1: Rear Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement (Power) Rear Side Door Window Regulator Replacement (Manual) .
1	Rear Side Door Power Window Regulator Motor Screw (Qty: 3). CAUTION: Refer to Fastener Caution . Procedure Remove the rear side door water deflector. Disconnect the electrical connector from the window regulator motor. Tighten 5 N.m (44 lb in)
2	Rear Side Door Power Window Regulator Motor Procedure Inspect the door window for proper operation before installing the door trim.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Preliminary Procedure Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement (Power) Rear Side Door Window Regulator Replacement (Manual) .

Rear Side Door Power Window Regulator Motor Screw (Qty: 3).

CAUTION:

Refer to Fastener Caution .

Procedure

Remove the rear side door water deflector.
Disconnect the electrical connector from the window regulator motor.

Tighten
5 N.m (44 lb in)

Rear Side Door Power Window Regulator Motor
Procedure
Inspect the door window for proper operation before installing the door trim.
