Rear Side Door Window Regulator Replacement (Manual)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

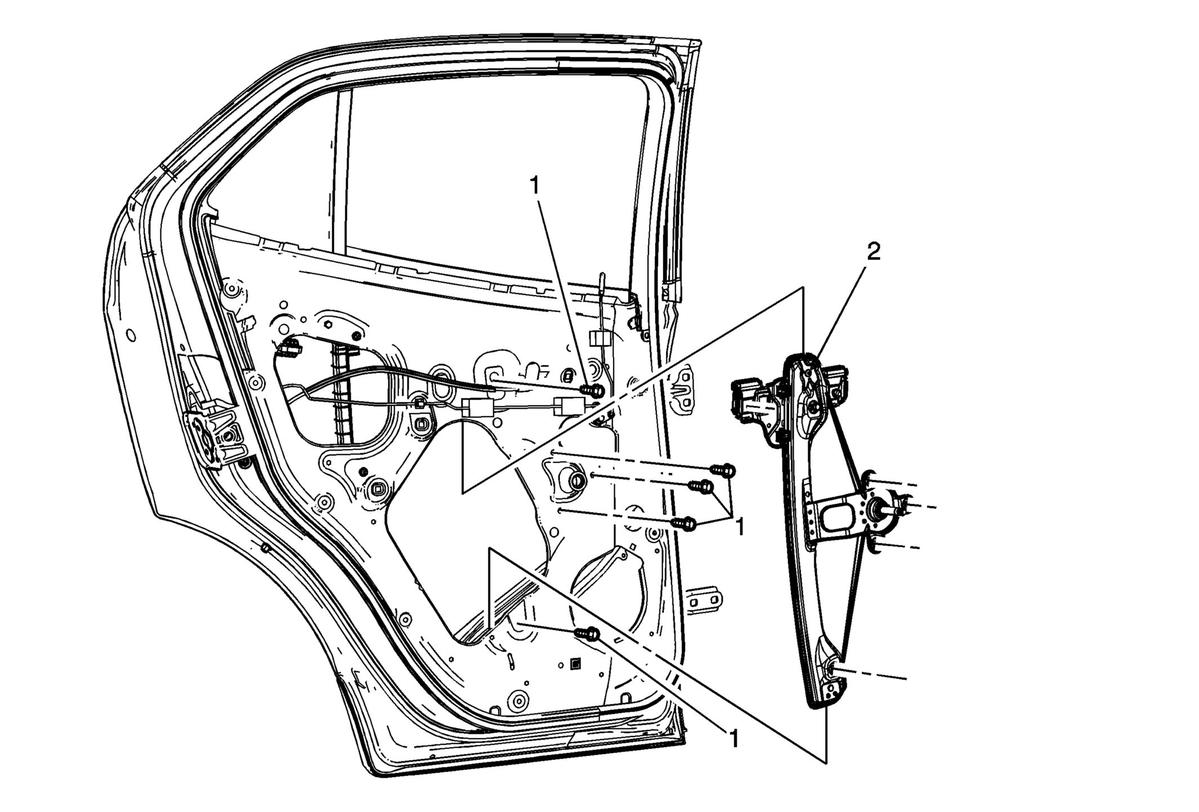

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear side door window from the window regulator guide nuts. Do Not remove the window from the vehicle, raise the window to the full up position, tape in place. Refer to Rear Side Door Window Replacement . |
|
| 1 | Rear Side Door Manual Window Regulator Bolts (Qty: 5)
CAUTION:
Refer to Fastener Caution . Procedure Remove the rear side door water deflector. Tighten 11 N.m (97 lb in) |
| 2 | Rear Side Door Manual Window Regulator Procedure Inspect the door window for proper operation before installing the door trim. |
