Rear Side Door Window Inner Sealing Strip Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

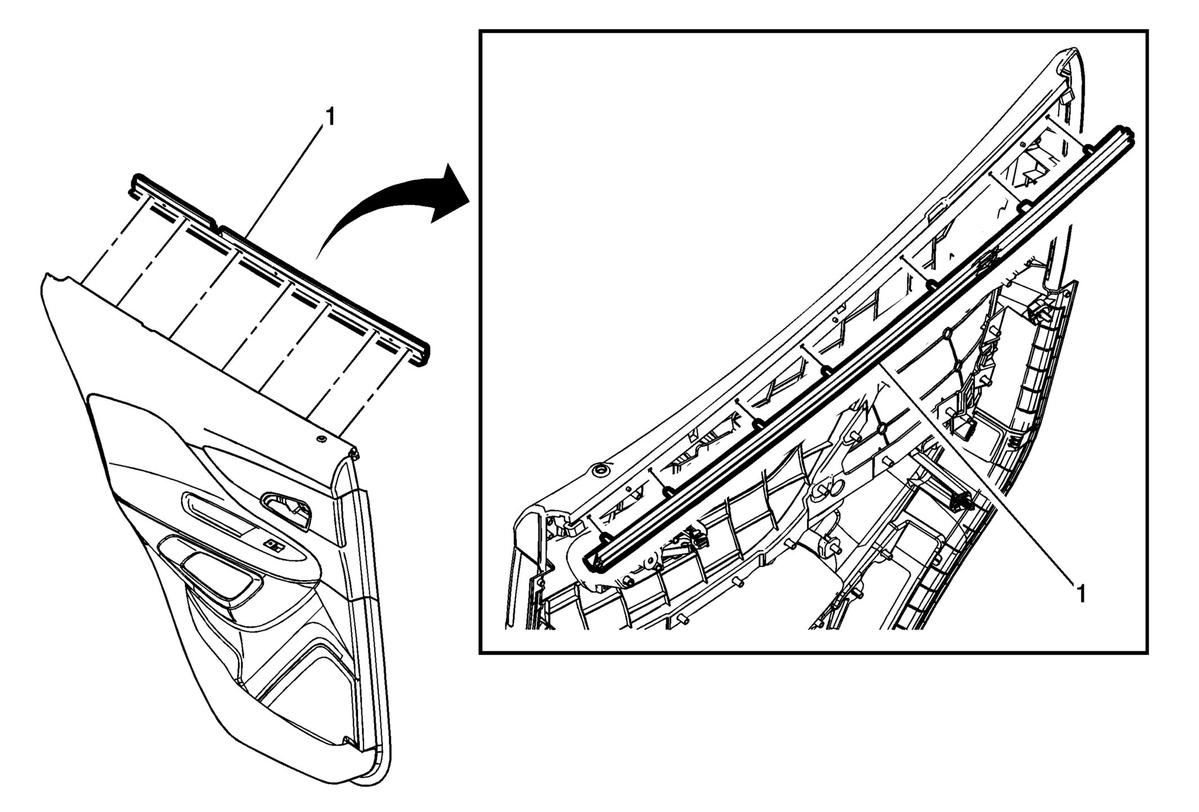

Fig 1: Rear Side Door Window Inner Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Window Inner Sealing Strip Assembly Procedure Unbend the metal retaining tabs fastening the inner sealing strip to the door trim panel. Pull outward to disengage sealing strip from door trim panel.

Callout

Component Name

Preliminary Procedure
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .

Rear Side Door Window Inner Sealing Strip Assembly

Procedure

Unbend the metal retaining tabs fastening the inner sealing strip to the door trim panel.
Pull outward to disengage sealing strip from door trim panel.
