Front Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

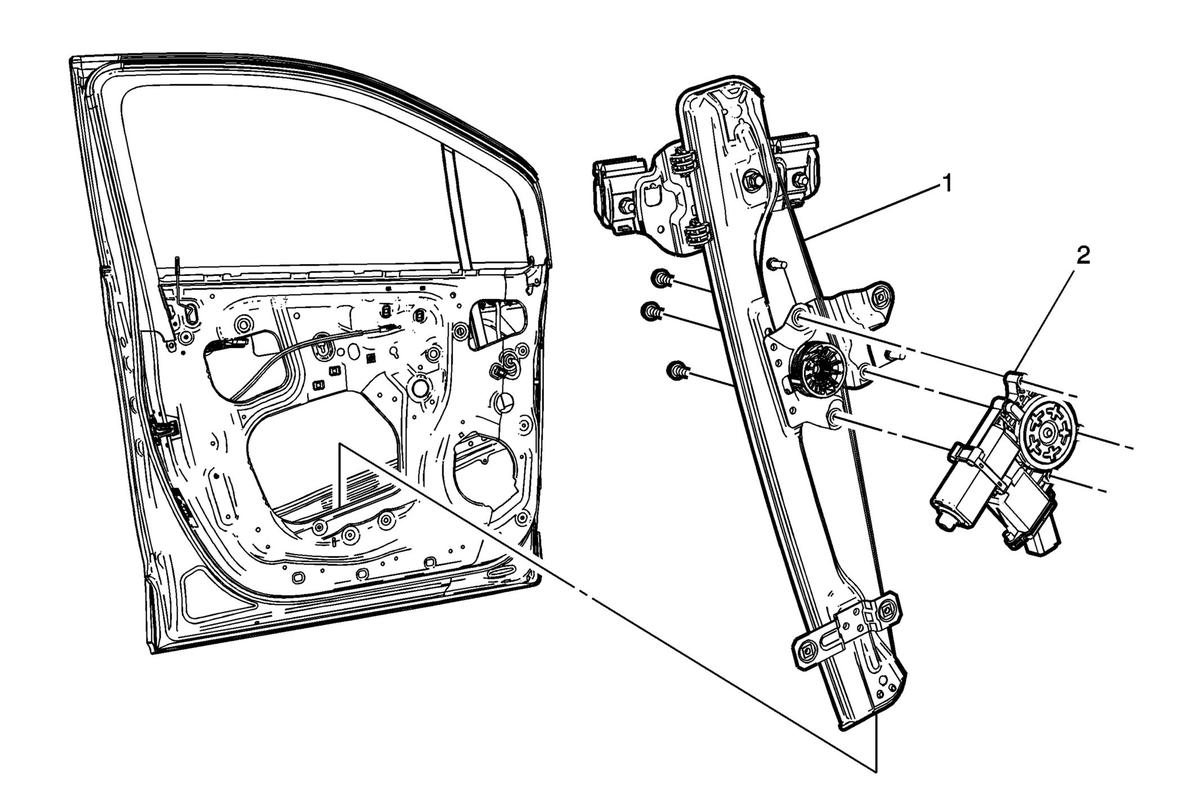

Fig 1: Front Side Door Window Regulator Motor
GM2780724Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Preliminary Procedure Remove the front side door window regulator. Front Side Door Window Regulator Replacement (Power) Front Side Door Window Regulator Replacement (Manual) .
1 Front Side Door Window Regulator Motor Screw (Qty: 3)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Remove the front side door water deflector.
  2. Disconnect the electric connector from the regulator motor.

Tighten
5 N.m (44 lb in)
2 Front Side Door Window Regulator Motor
Procedure
Inspect the door window for proper operation before installing the door trim.
