Front Side Door Window Regulator Replacement (Manual)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

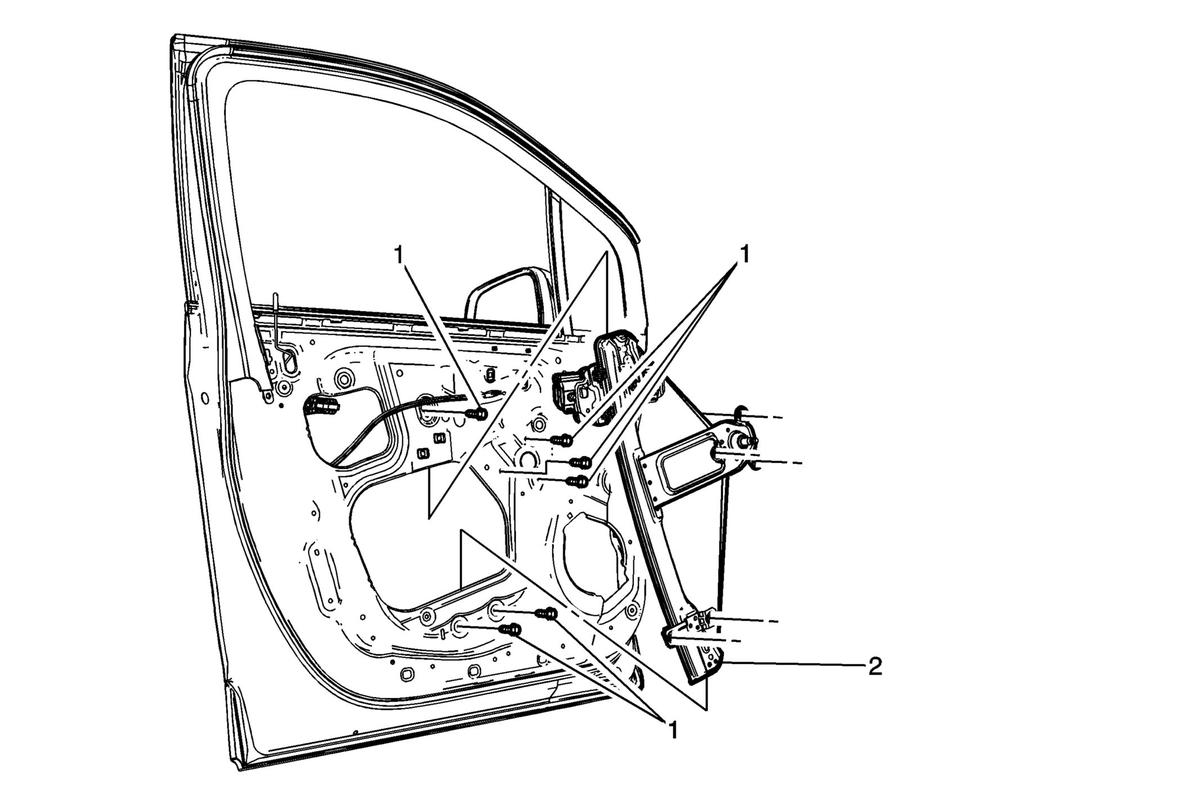

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Remove the front side door window from the window regulator guide nuts. Do Not remove the window from the vehicle, raise the window to the full up position, tape in place. Refer to Front Side Door Window Replacement .Refer to Glass and Sheet Metal Handling Warning . |
|
| 1 | Front Side Door Manual Window Regulator Screw (Qty: 5)
CAUTION:
Refer to Fastener Caution . Procedure Remove the front side door water deflector. Tighten 11 N.m (97 lb in) |
| 2 | Front Side Door Manual Window Regulator
NOTE:
Inspect the door window for proper operation before installing the door trim. |
