Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

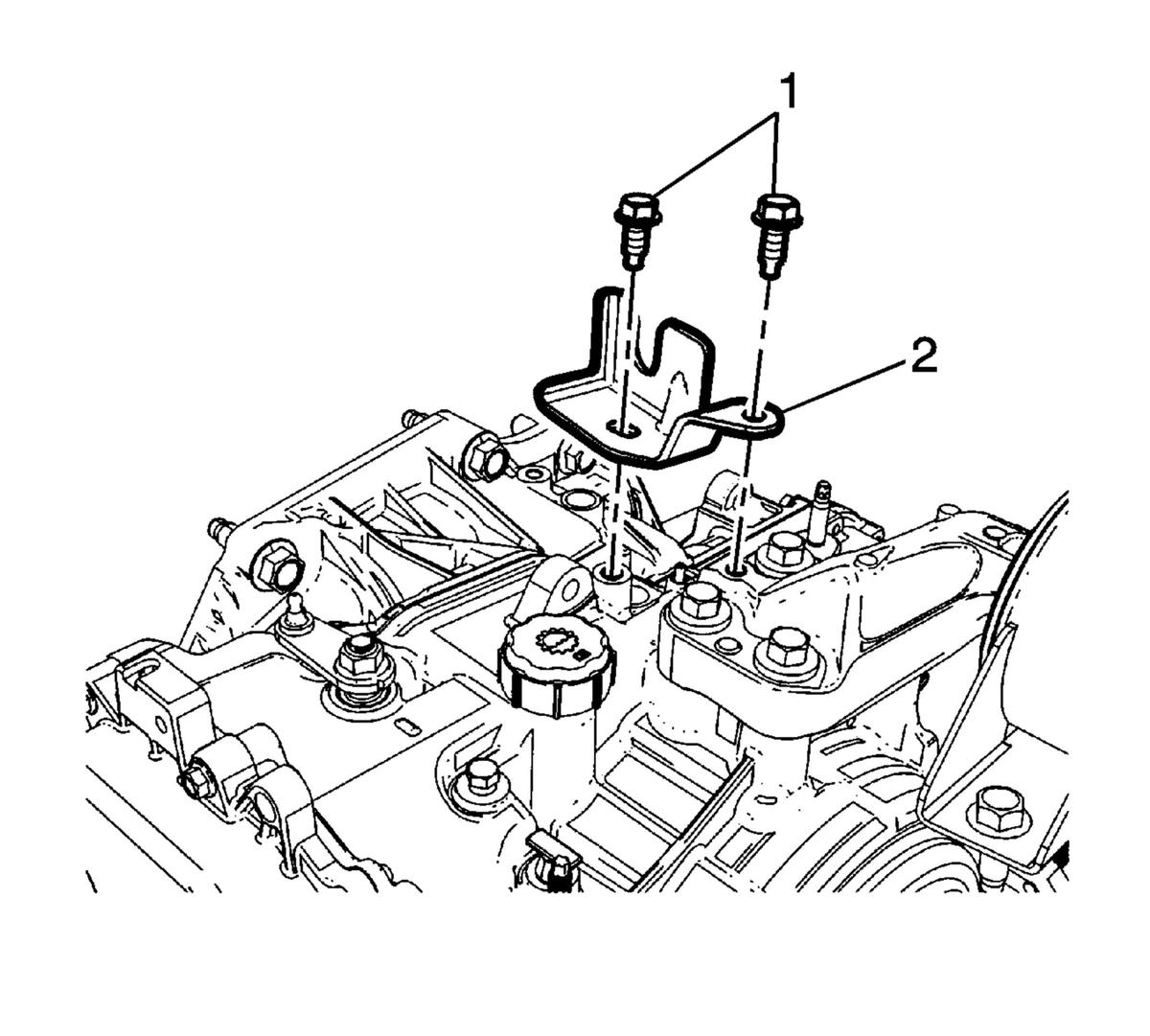

    Fig 1: Range Selector Cable Bracket And Bolts
    GM2853183Courtesy of GENERAL MOTORS COMPANY
  1. Install the transmission range selector cable bracket (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the transmission range selector cable bracket bolts (1) and tighten to 22 N.m (16 lb ft).

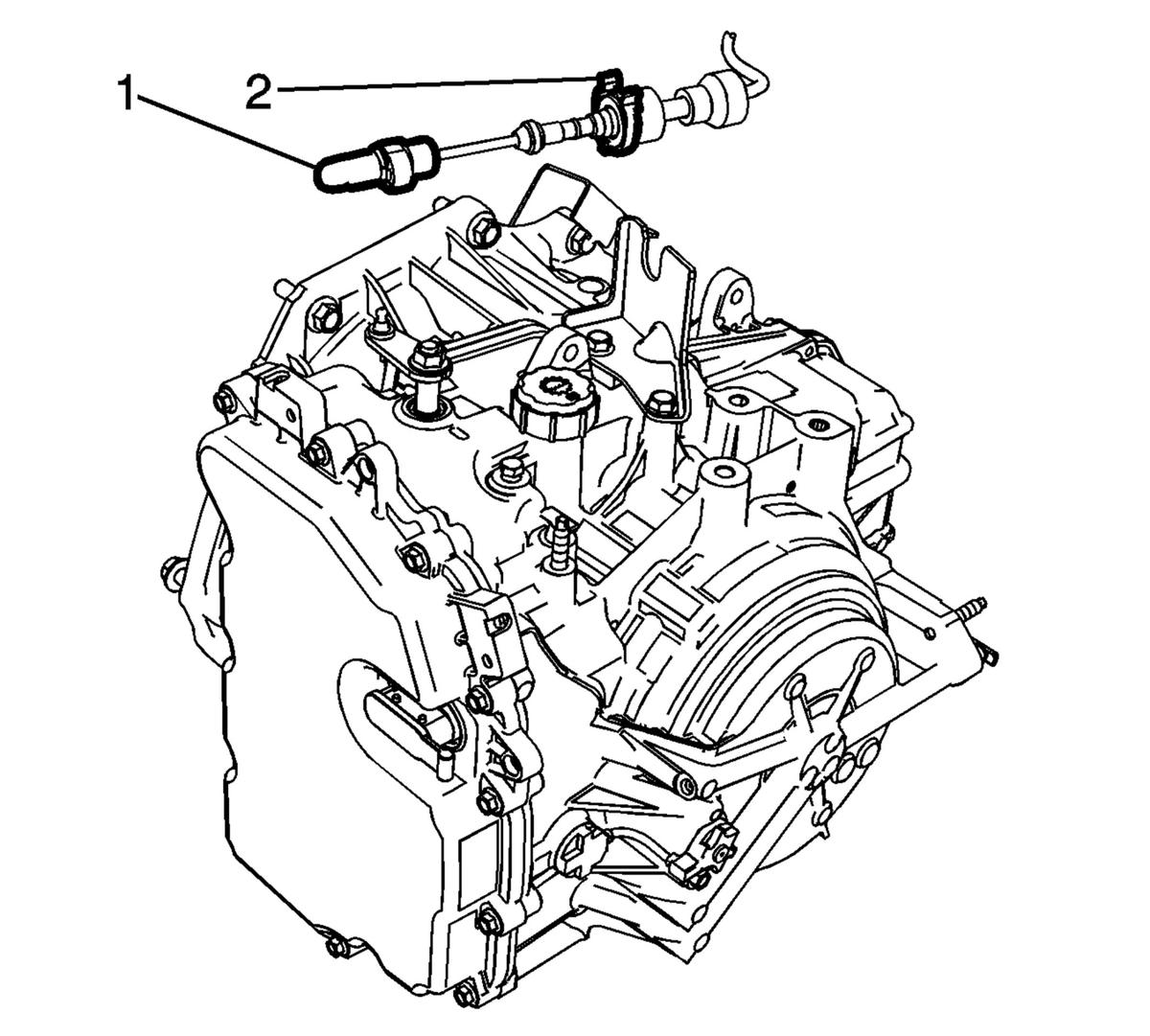

    3. Fig 2: Range Selector Lever Cable
    GM2527095Courtesy of GENERAL MOTORS COMPANY
  3. Connect the range selector cable (2) to the range selector cable bracket.
  4. Connect the range selector cable end (1) to the range selector lever.
  5. Check the range selector cable adjustment. Refer to Range Selector Lever Cable Adjustment .
  6. Install the battery tray. Refer to Battery Tray Replacement .
