Air Inlet Valve Actuator Replacement - Left Side

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

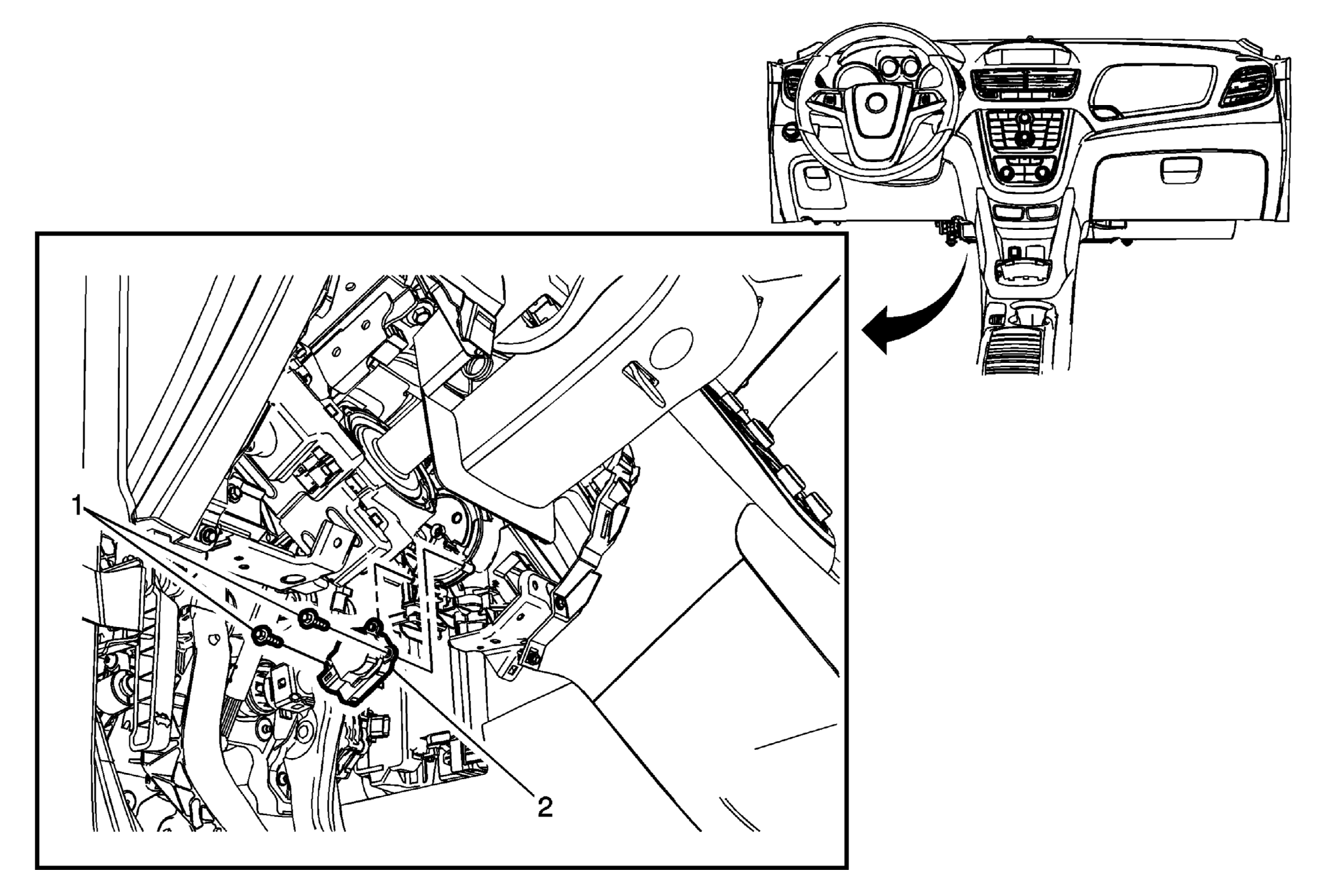

Fig 1: Air Inlet Valve Actuator - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left side front floor air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Encore)Floor Front Air Outlet Duct Replacement - Left Side (Trax) . Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Encore)Instrument Panel Knee Bolster Replacement (Trax) .
1	Air Inlet Valve Actuator Fastener (Qty: 2)
2	Air Inlet Valve Actuator Procedure Disconnect the air inlet valve actuator connector.

Callout

Component Name

Preliminary Procedures

Remove the left side front floor air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Encore)Floor Front Air Outlet Duct Replacement - Left Side (Trax) .
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Encore)Instrument Panel Knee Bolster Replacement (Trax) .

Air Inlet Valve Actuator Fastener (Qty: 2)

Air Inlet Valve Actuator
Procedure
Disconnect the air inlet valve actuator connector.
