Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

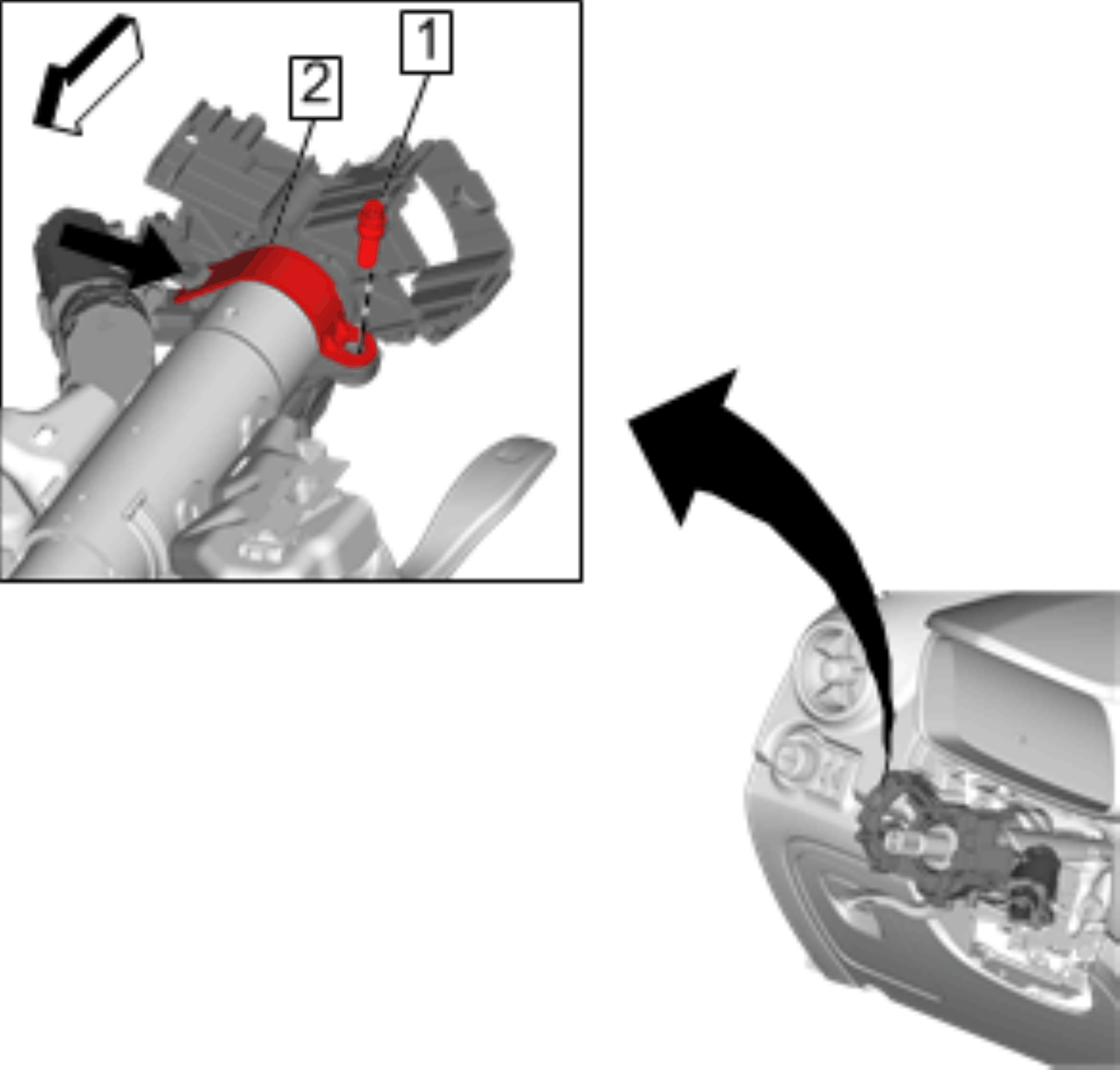

- Install the ignition and start switch housing (2) along with any attached components on the steering column.
- Secure the turn signal switch bracket retaining tab (1).
- Ignition and Start Switch Housing Strap<p01> - Install
- Ignition and Start Switch Housing Bolt<p01> - Install
Install the NEW ignition and start switch housing bolt and tighten until the bolt head breaks off.
- Connect the electrical connector.
- Ignition Lock Cylinder Replacement (Encore) Ignition Lock Cylinder Replacement (Trax) - Install
- Theft Deterrent Module Replacement (Encore)Theft Deterrent Module Replacement (Trax) - Install
- Windshield Wiper and Washer Switch Replacement (Encore)Windshield Wiper and Washer Switch Replacement (Trax) - Install
- Turn Signal Switch Replacement (Encore)Turn Signal Switch Replacement (Trax) - Install
- Steering Wheel Airbag Coil Replacement (Encore)Steering Wheel Airbag Coil Replacement (Trax) - Install
CAUTION:
Refer to Fastener Caution .
