Steering Wheel Airbag Coil Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

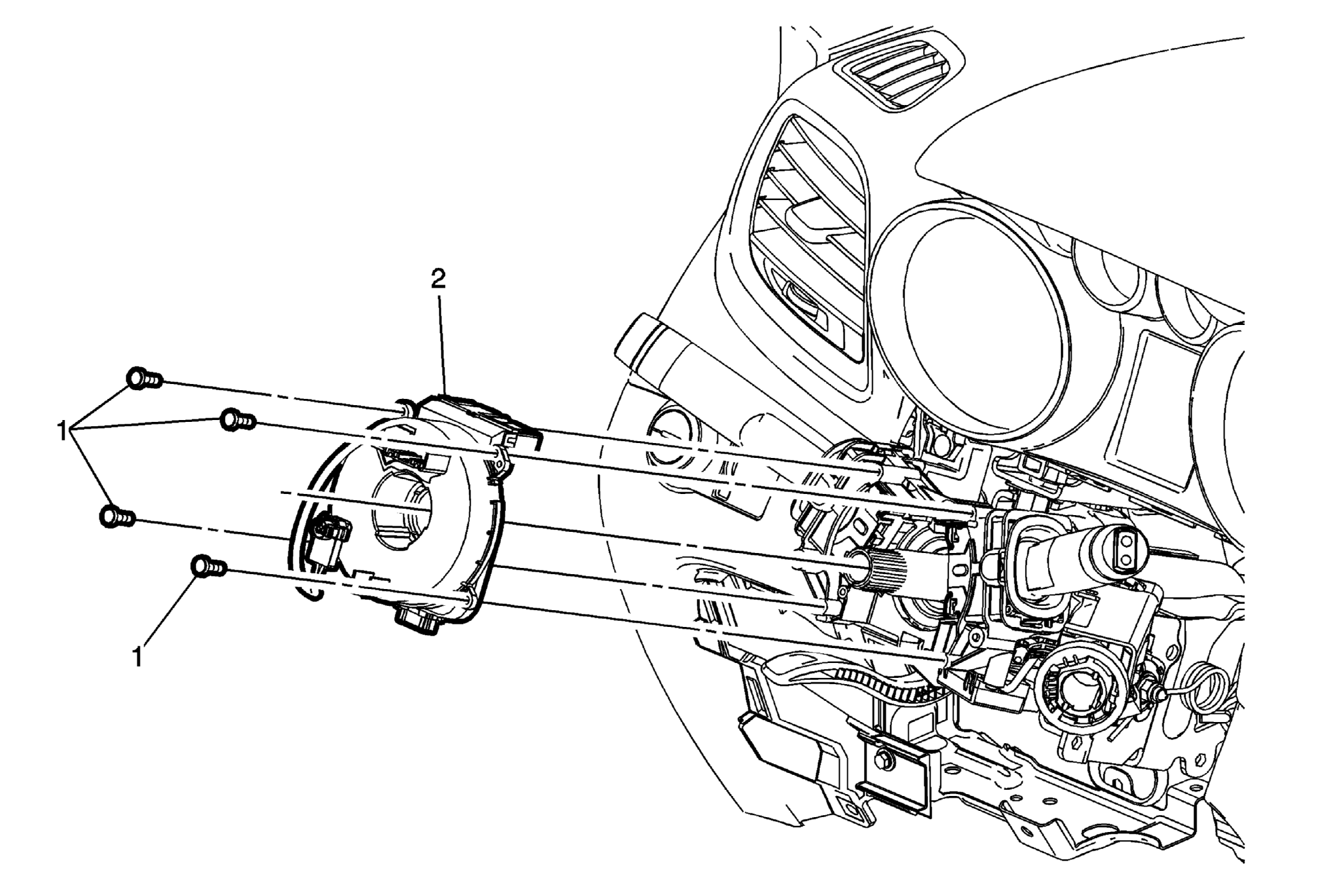

Fig 1: Steering Wheel Airbag Coil (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Steering Wheel Replacement (Encore) Steering Column Lower Trim Cover Replacement (Encore)
1	Steering Wheel Airbag Coil Bolt CAUTION: Refer to Fastener Caution .
2	Steering Wheel Airbag Coil Procedure Disconnect the electrical connectors. Transfer components as necessary. Ensure the steering wheel airbag coil is CENTERED during installation. Airbag Steering Wheel Module Coil Centering

Callout

Component Name

Preliminary Procedures

Steering Wheel Replacement (Encore)
Steering Column Lower Trim Cover Replacement (Encore)

Steering Wheel Airbag Coil Bolt

CAUTION:

Refer to Fastener Caution .

Steering Wheel Airbag Coil

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
Ensure the steering wheel airbag coil is CENTERED during installation. Airbag Steering Wheel Module Coil Centering
