Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Steering Wheel Airbag Coil Replacement (Encore)Steering Wheel Airbag Coil Replacement (Trax) - Remove
  2. Turn Signal Switch Replacement (Encore)Turn Signal Switch Replacement (Trax) - Remove
  3. Windshield Wiper and Washer Switch Replacement (Encore)Windshield Wiper and Washer Switch Replacement (Trax) - Remove
  4. Theft Deterrent Module Replacement (Encore)Theft Deterrent Module Replacement (Trax) - Remove
  5. Ignition Lock Cylinder Replacement (Encore) Ignition Lock Cylinder Replacement (Trax)  - Remove
  6. Disconnect the electrical connector.

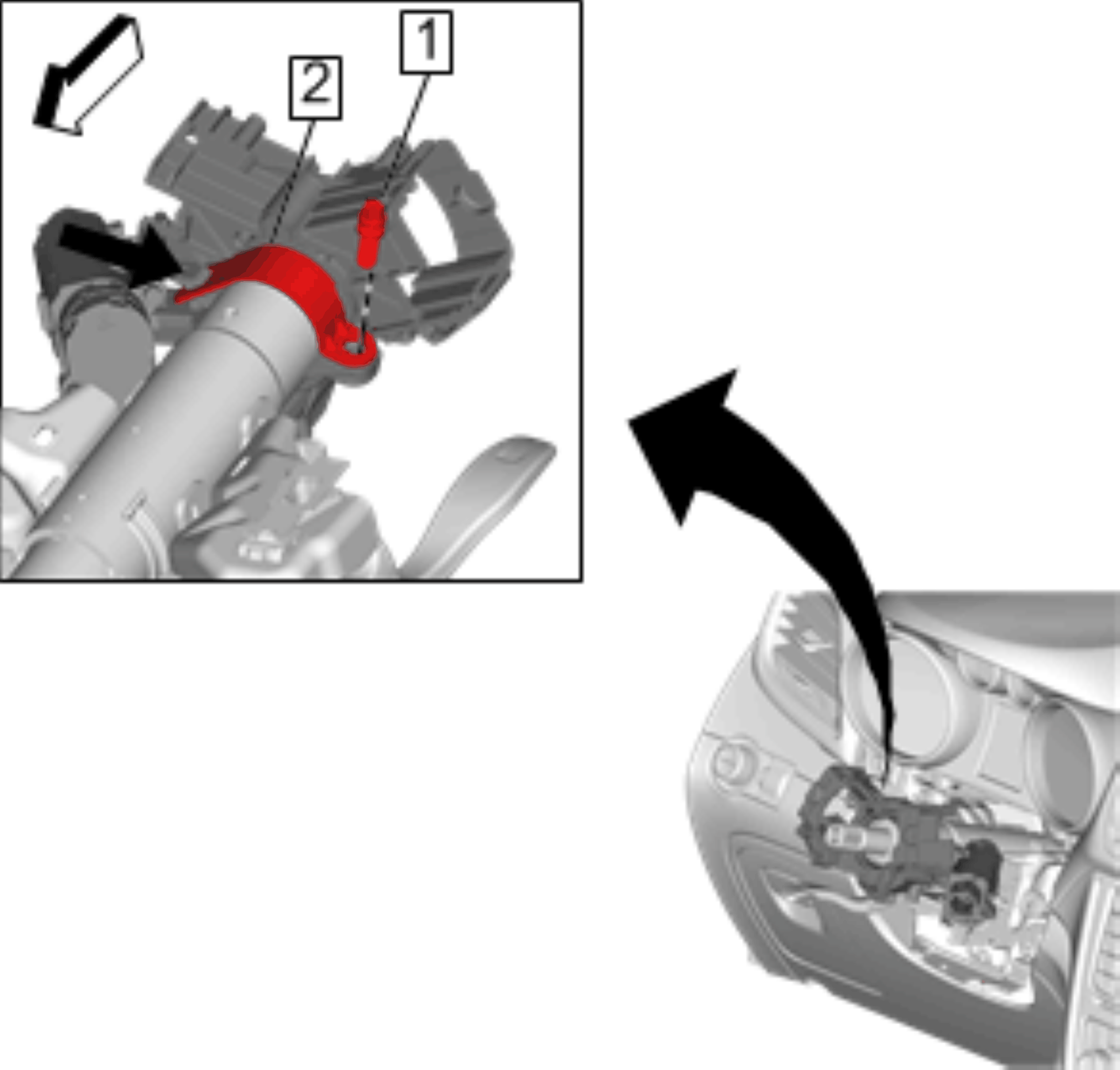

    7. Fig 1: Strap And Bolt
    GM4173847Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The ignition and start switch housing bolt can be removed with a pair of Vise-Grip™ locking pliers or equivalent.

  7. Ignition and Start Switch Housing Bolt (1) Remove

    DISCARD the bolt.

  8. Ignition and Start Switch Housing Strap (2) Remove

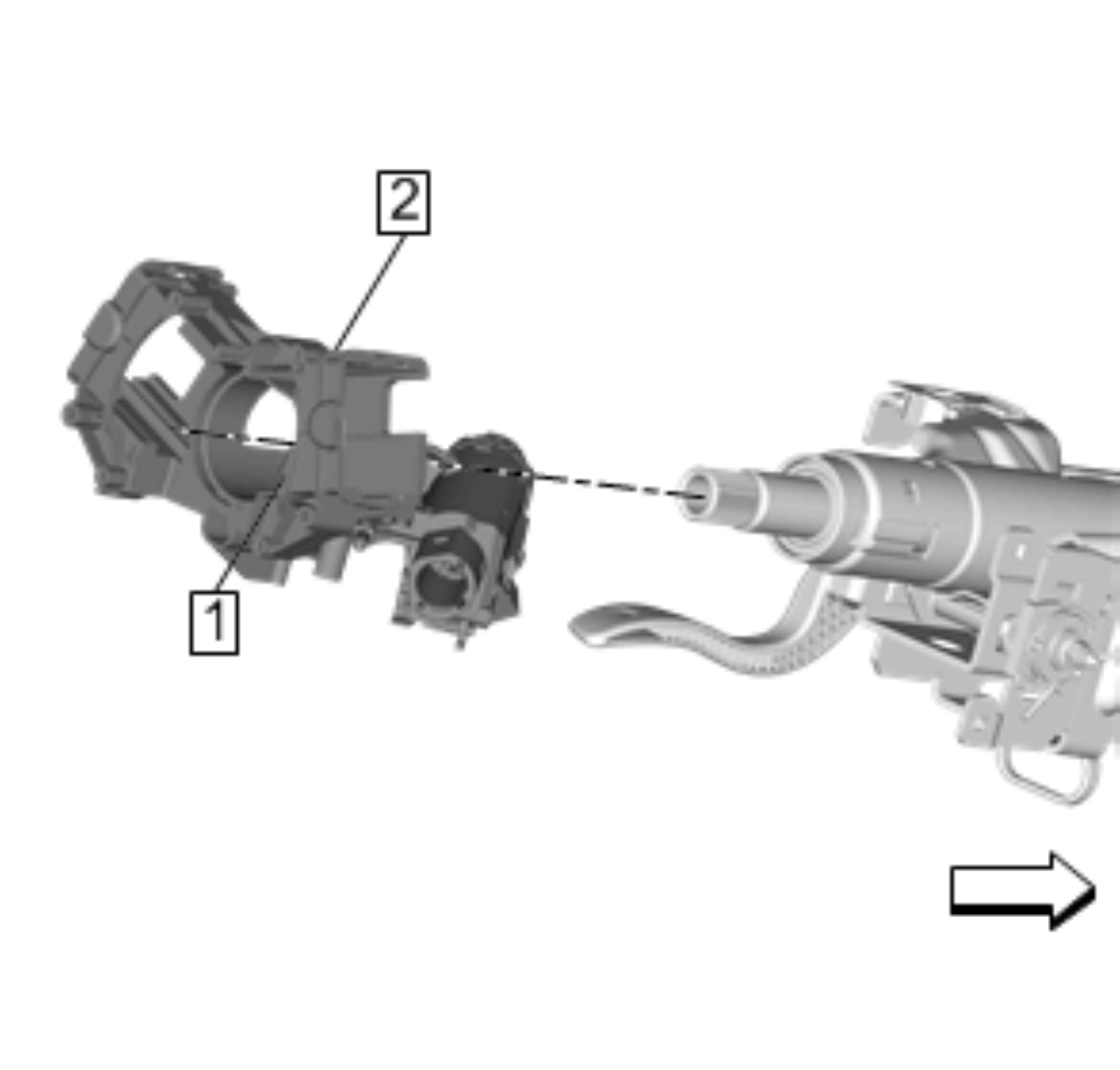

    9. Fig 2: Turn Signal Switch Bracket Retaining Tab
    GM4174273Courtesy of GENERAL MOTORS COMPANY
  9. Release the turn signal switch bracket retaining tab (1).
  10. Remove the ignition and start switch housing (2) along with any attached components from the steering column.
  11. Transfer components as necessary.
