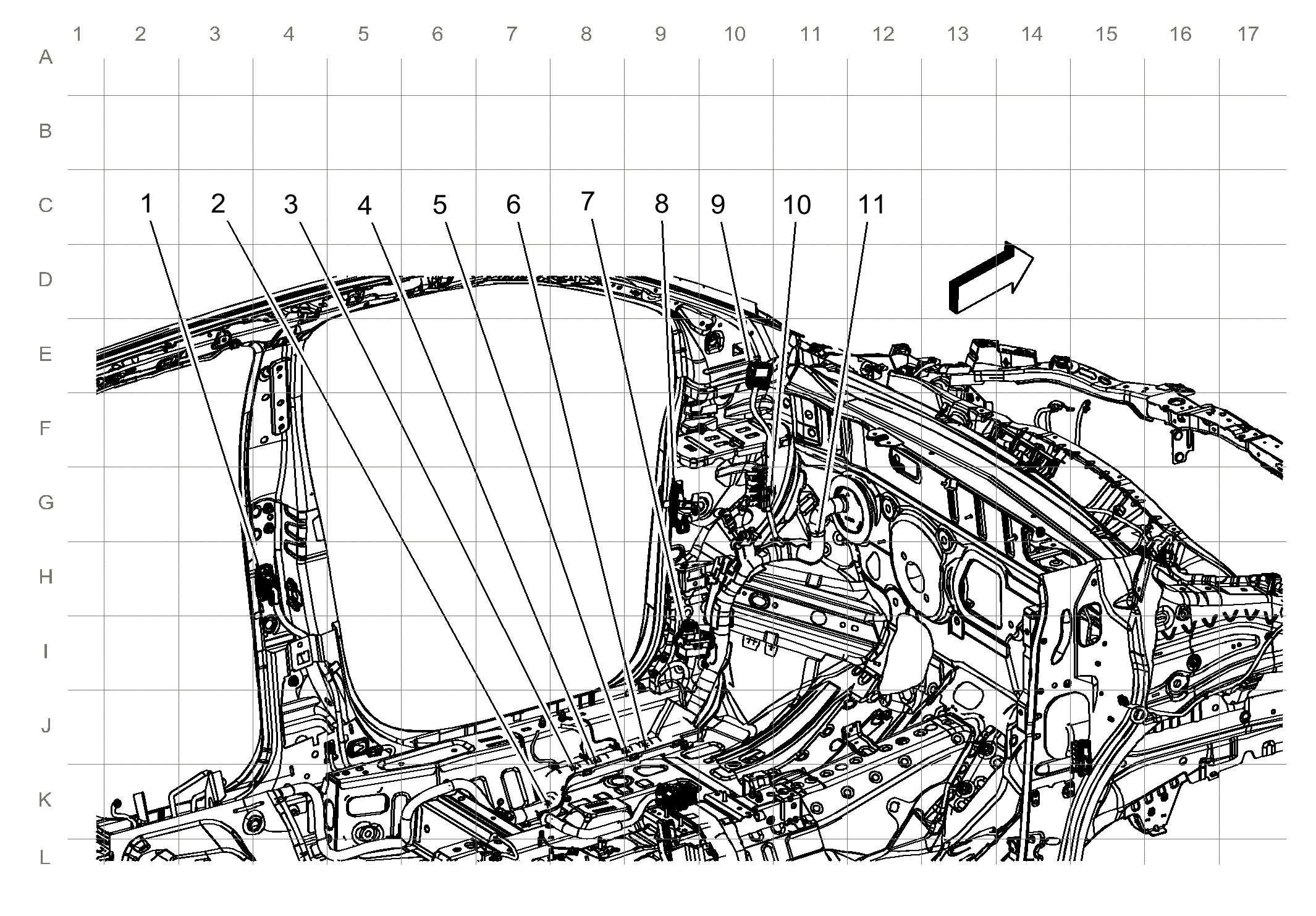

Body Harness Routing - Left Front of Passenger Compartment (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1:X700 X700 Left Rear Door Harness to Body Harness |
| 2:J265 |
| 3:J326 |
| 4:J230 |
| 5:J233 |
| 6:J225 |
| 7:X200 X200 Instrument Panel Harness to Body Harness |
| 8:X500 X500 Driver Door Harness to Body Harness |
| 9:X208 X208 Headliner Harness to Body Harness |
| 10:J331 |
| 11:J330 |
