Front Side Door Window Garnish Molding Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement (Encore) Front Side Door Trim Replacement (Trax) . |
|

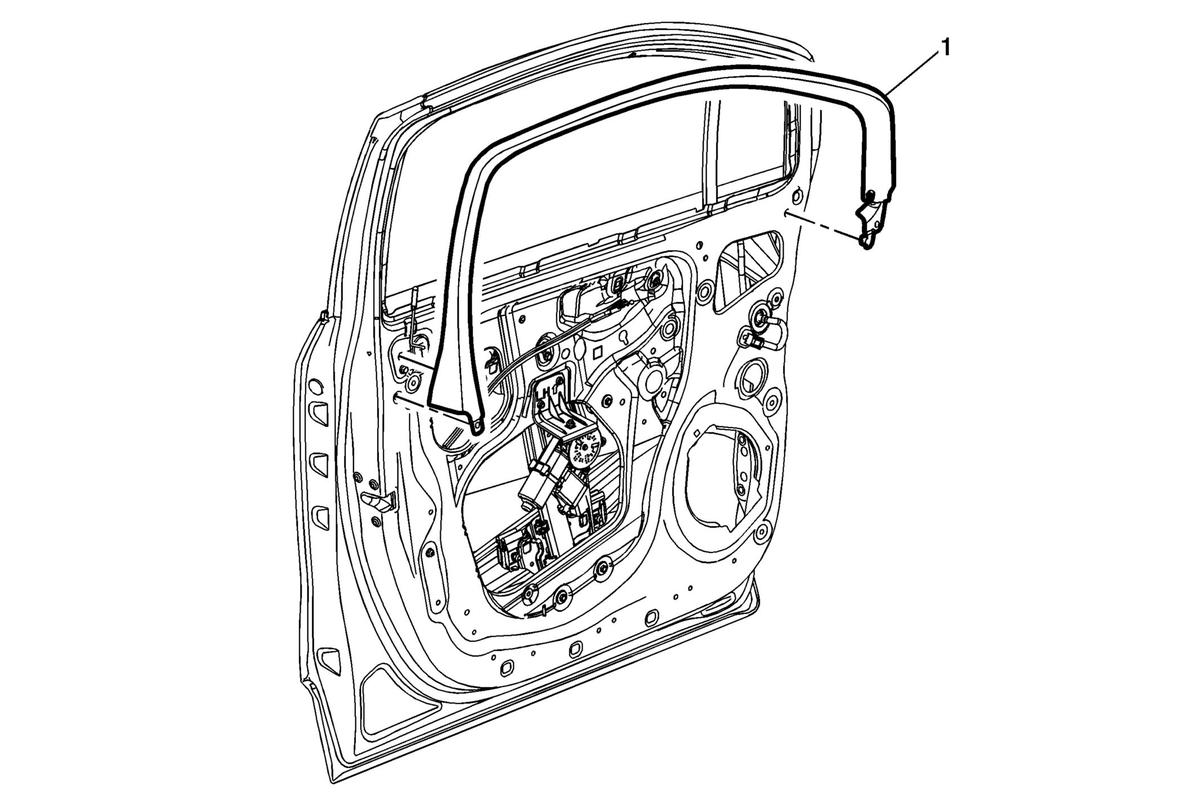

| 1 | Front Side Door Window Garnish Molding Assembly Procedure Pull outward starting at the front and moving slowly rearward to release the integral tabs from the front side door inner panel. |
