Installation Procedure

  1. Install the air cleaner upper housing (2).

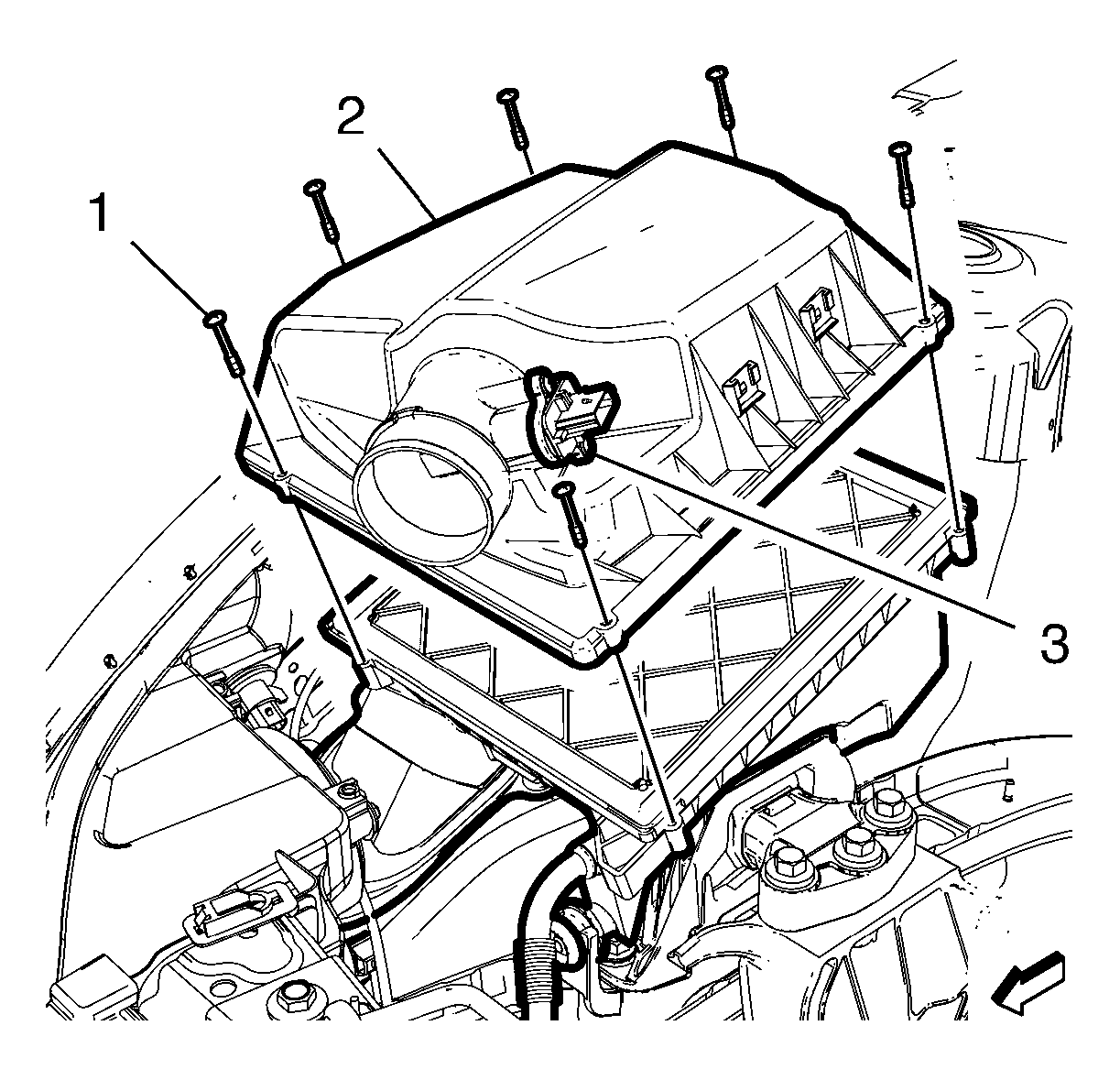

    Fig 1: Mass Air Flow Sensor
    GM2750584Courtesy of GENERAL MOTORS COMPANY
  2. Install the 6 air cleaner housing cover bolts (1) and tighten to 5 N.m (44 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install the mass air flow sensor (3) to the air cleaner upper housing (2). Refer to Mass Airflow Sensor Replacement .
  4. Install the air cleaner outlet duct (1). Refer to Air Cleaner Outlet Duct Replacement .

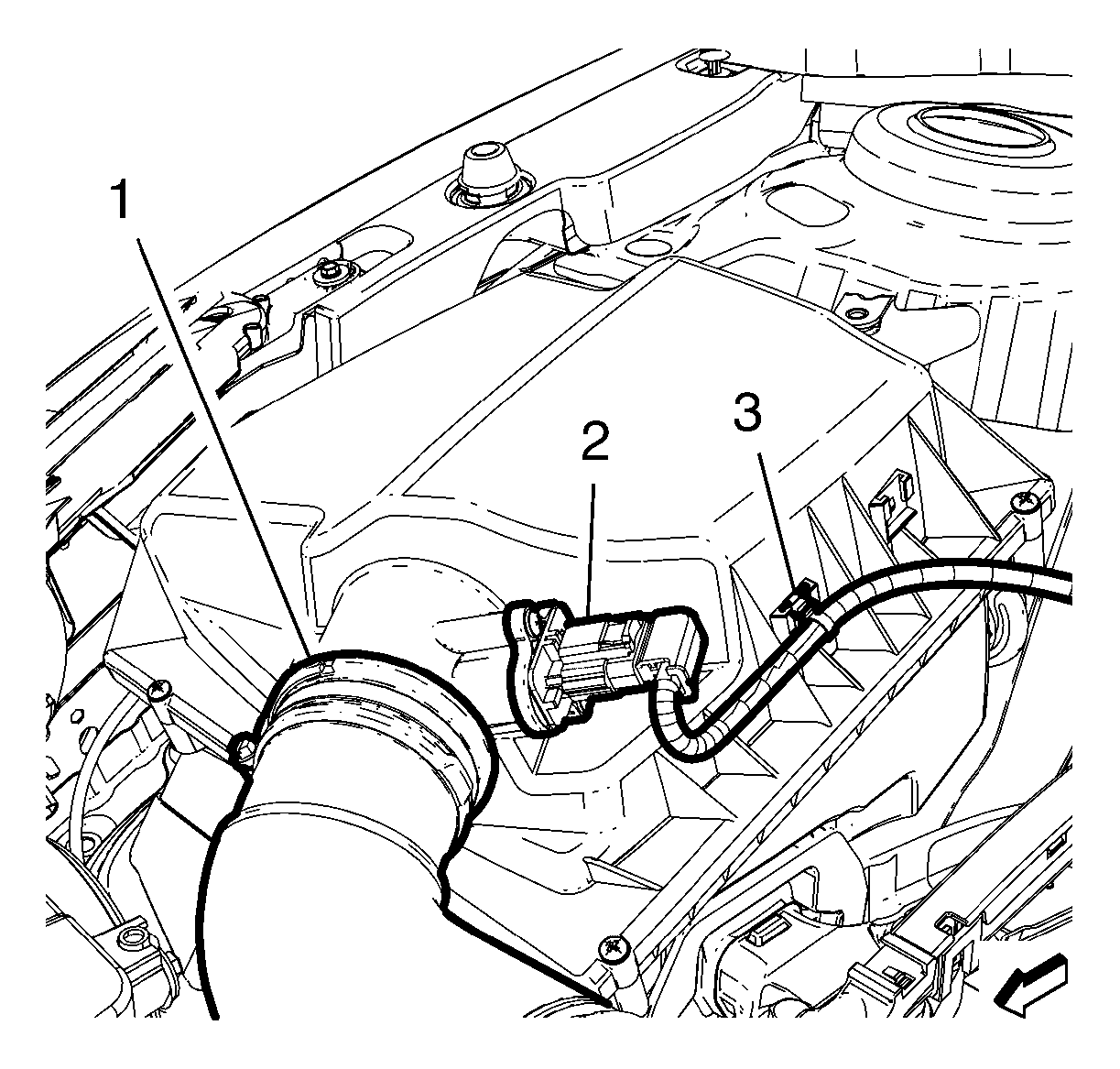

    Fig 2: Mass Airflow Sensor Wiring Harness Plug
    GM2750583Courtesy of GENERAL MOTORS COMPANY
  5. Connect the mass airflow sensor wiring harness plug (2).
  6. Clip in the ECM wiring harness (3) the air cleaner housing.
