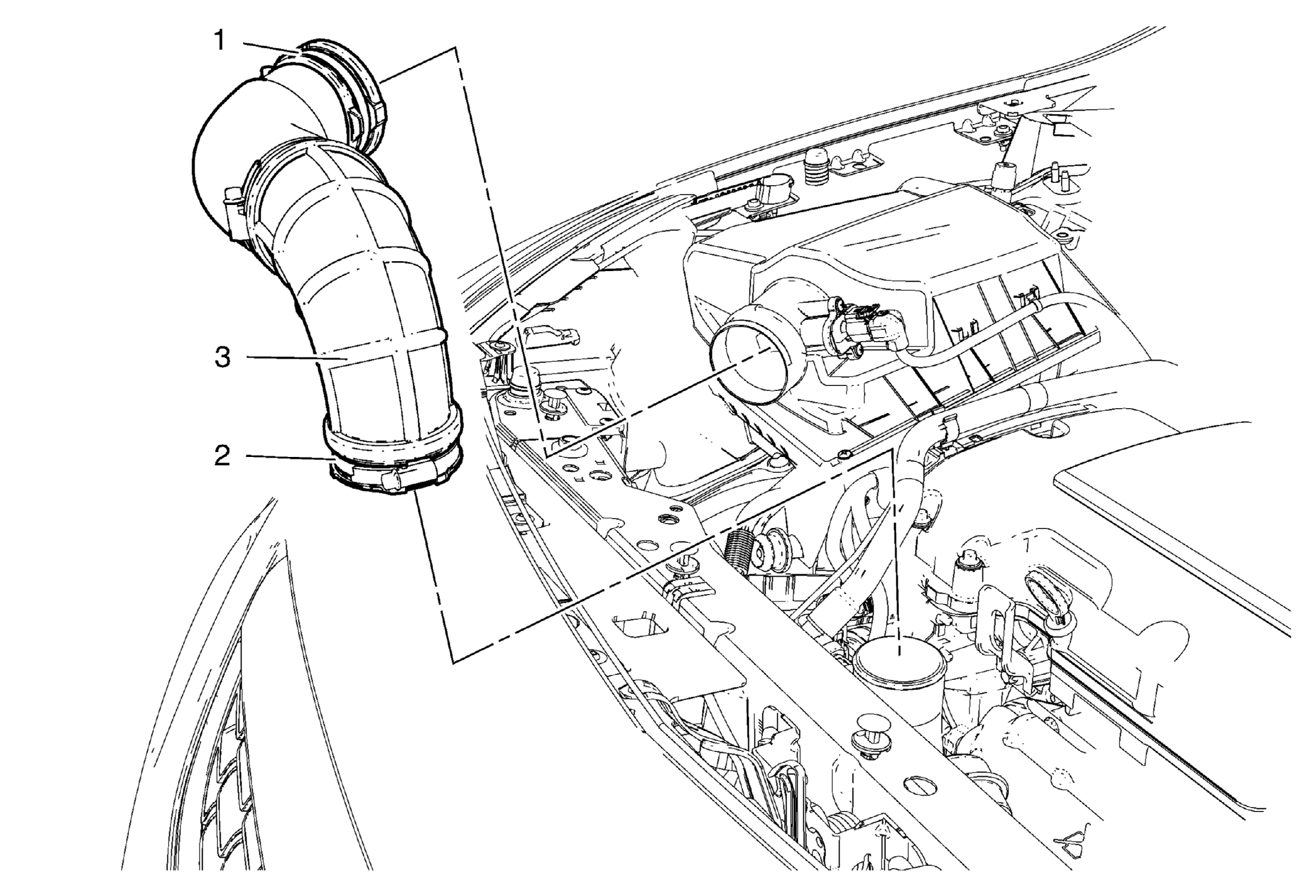

Air Cleaner Outlet Duct Replacement
| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct Clamp
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.
|
| 2 | Air Cleaner Outlet Duct Clamp
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.
|
| 3 | Air Cleaner Outlet Duct TIP: Air cleaner outlet front duct and air cleaner outlet rear duct are one part. |
