Installation Procedure

  1. Clean the sealing surfaces.
  2. Install the turbocharger oil feed pipe (2) along with a NEW rubber seal ring.

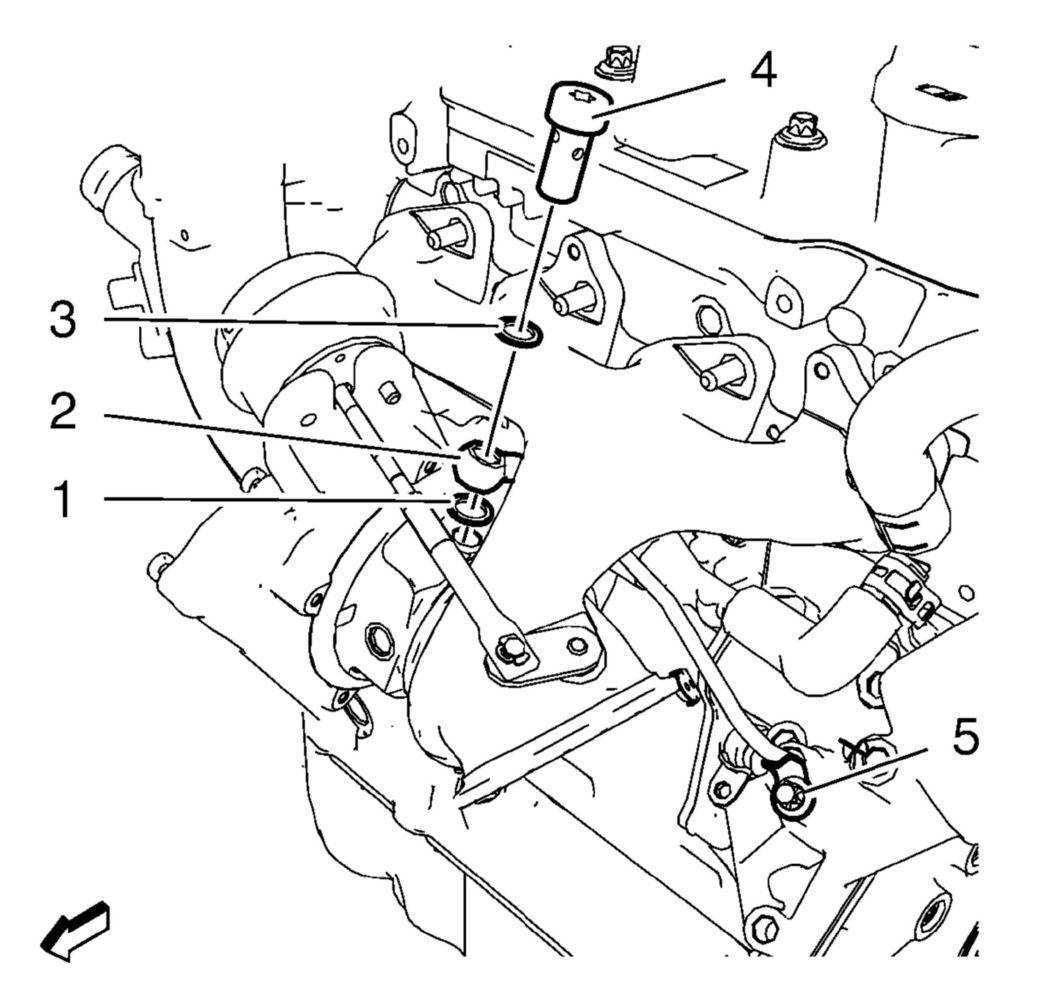

    Fig 1: Turbocharger Oil Feed Pipe Components
    GM2192280Courtesy of GENERAL MOTORS COMPANY
  3. Install the turbocharger oil feed pipe hollow screw (4) and 2 NEW seal rings (1) and (3).
  4. Install the turbocharger oil feed pipe bolt (5) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
  5. Tighten the turbocharger oil feed pipe hollow screw to 20 N.m (15 lb ft).
  6. Install the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement (1.4L LUV) .
  7. Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
