Exhaust Manifold Heat Shield Replacement (1.4L LUV)

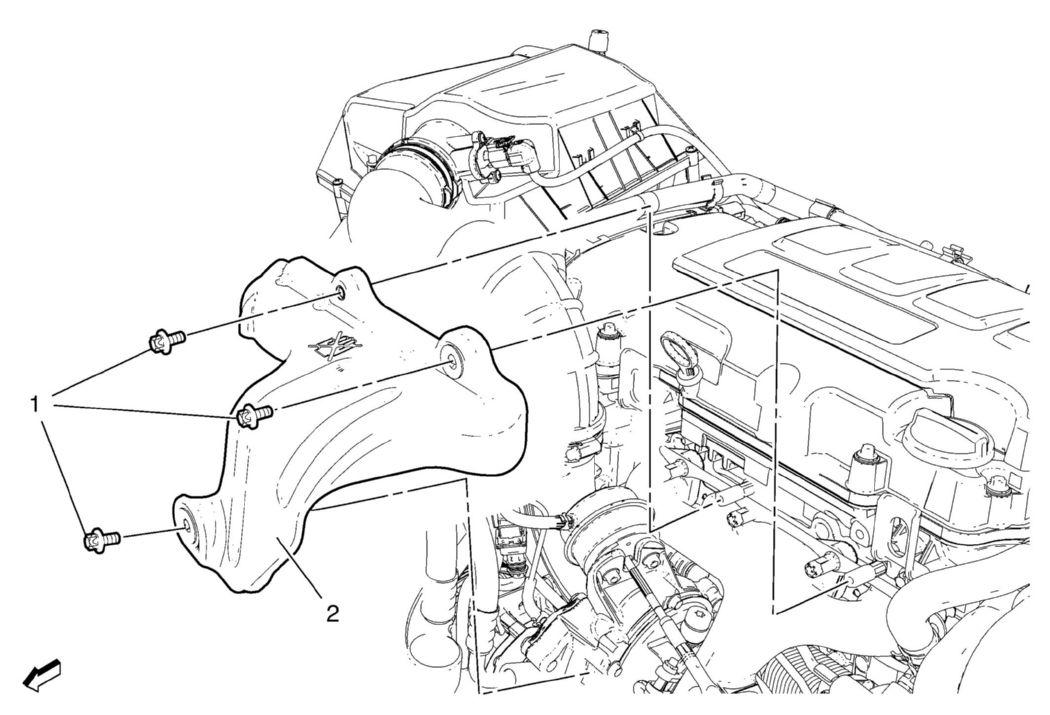

| Callout | Component Name |
|---|---|
|
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
|
|
| 1 | Exhaust Manifold Heat Shield Bolts (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Tighten 8 N.m (71 lb in) |
| 2 | Exhaust Manifold Heat Shield |
