Installation Procedure

  1. Install the positive crankcase ventilation pipe assembly (1) to the camshaft cover retainer clips.

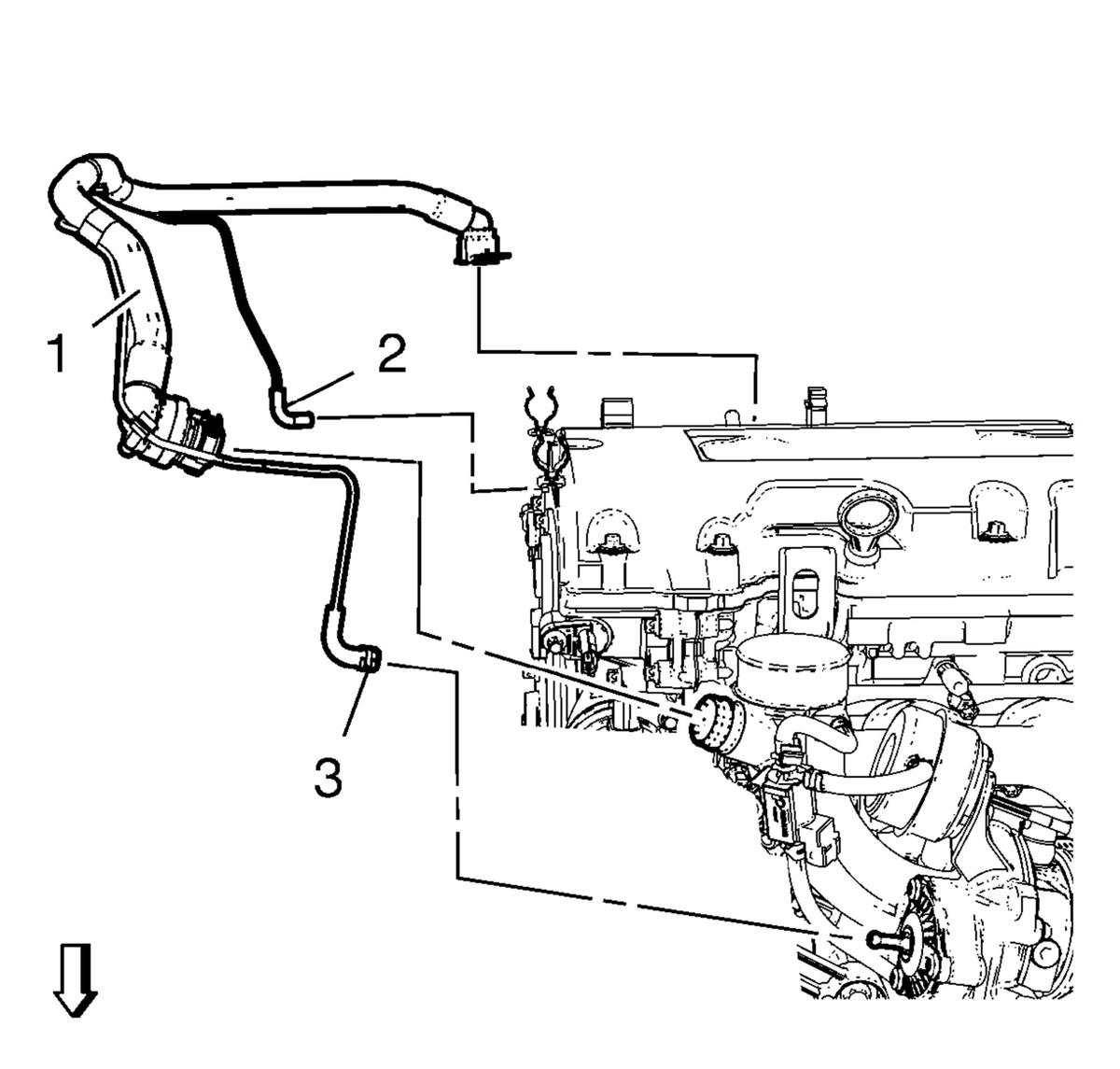

    Fig 1: Positive Crankcase Ventilation Pipe, Charger Air Bypass Valve Pipe And Clamp
    GM2191937Courtesy of GENERAL MOTORS COMPANY
  2. Connect the positive crankcase ventilation pipe to turbocharger.
  3. Install the charger air bypass valve pipe (2) to turbo charger wastegate regulator solenoid valve.
  4. Install the charger air bypass valve pipe to turbocharger.
  5. Fasten the charger air bypass valve pipe clamp (3).
  6. Install the positive crankcase ventilation pipe to the intake manifold and fix with retainer clamp (1).

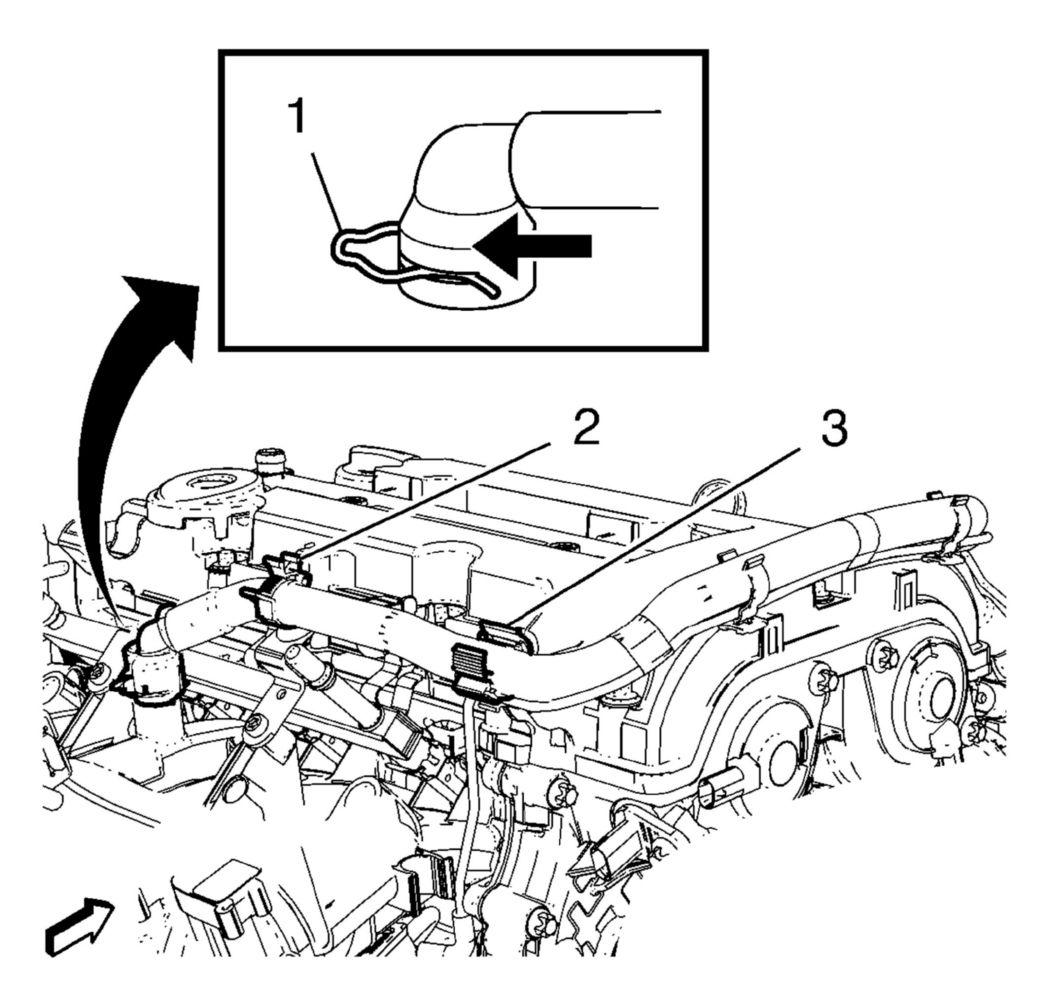

    Fig 2: Positive Crankcase Ventilation Pipe Retainer Clips And Clamp
    GM2191938Courtesy of GENERAL MOTORS COMPANY
  7. Clip in the positive crankcase ventilation pipe to the 2 retainer clips (2) and (3).
  8. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
