Removal Procedure

  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Drain engine coolant. Refer to Cooling System Draining and Filling (GE-47716 Fill)  and Cooling System Draining and Filling (Static Fill)
  3. Remove the turbocharger oil feed pipe. Refer to Turbocharger Oil Feed Pipe Replacement .
  4. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  5. Remove the warm up three way catalytic converter. Refer to Warm Up Three-Way Catalytic Converter Replacement .
  6. Lower vehicle.
  7. Turbocharger - Remove. Refer to TURBOCHARGER REPLACEMENT
  8. Remove the oil cooler outlet hose clamp (2).

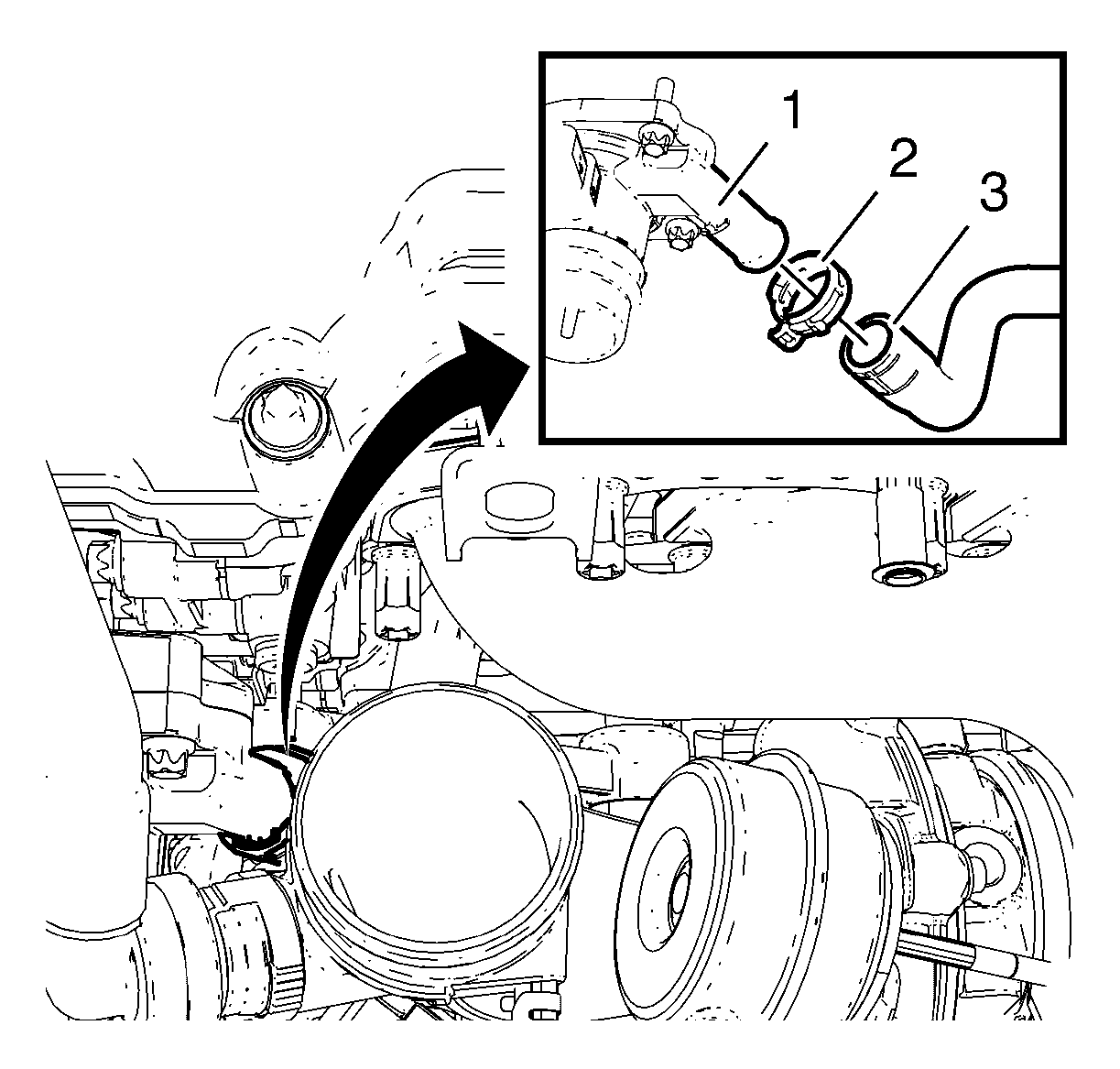

    Fig 1: Thermostat Housing And Oil Cooler Outlet Hose
    GM2371623Courtesy of GENERAL MOTORS COMPANY
  9. Remove the oil cooler outlet hose clamp (2).
  10. Remove the oil cooler outlet hose (3) from the thermostat housing (1).

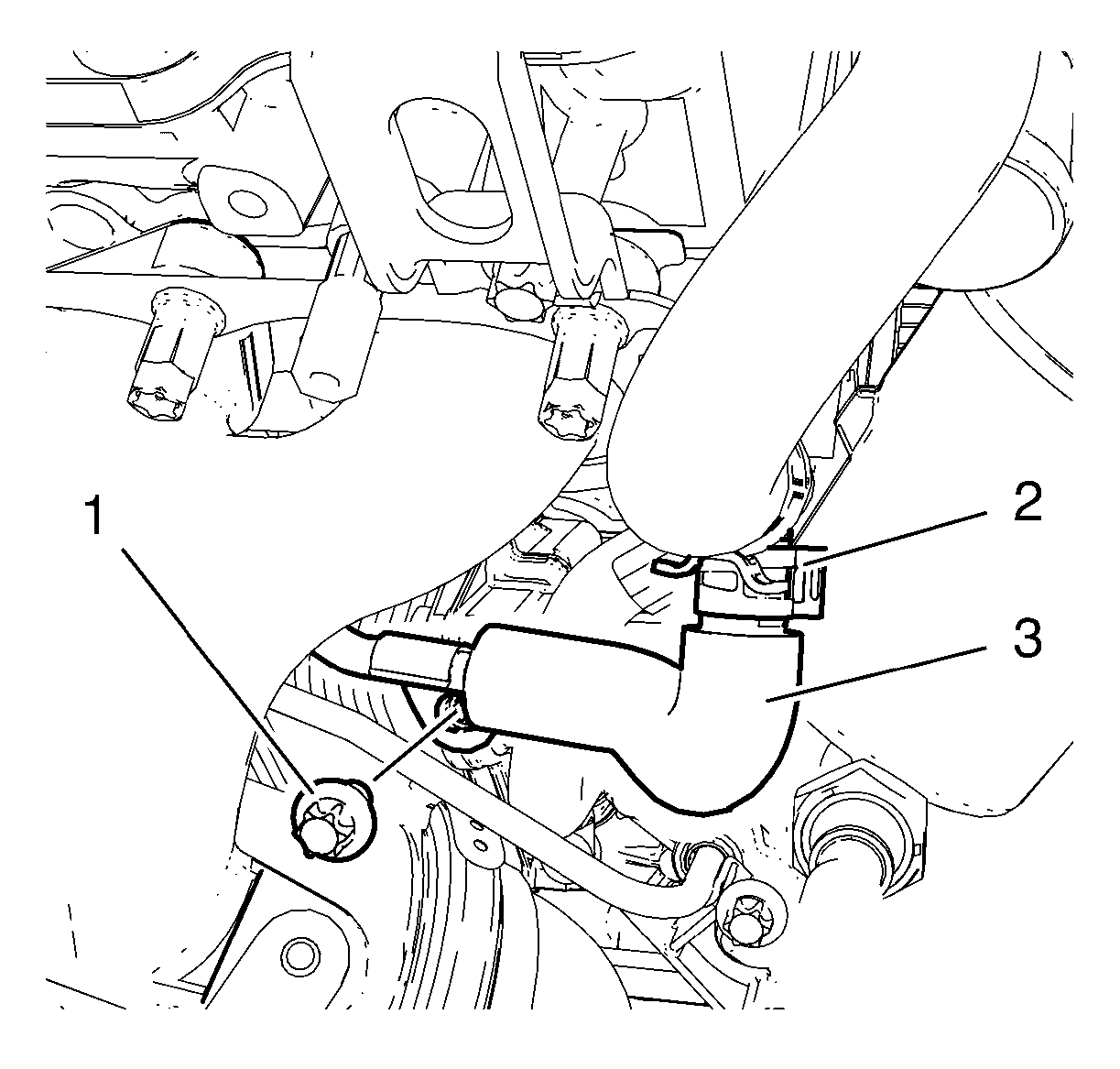

    Fig 2: Turbocharger Coolant Return Pipe Clamp And Bolt
    GM2371624Courtesy of GENERAL MOTORS COMPANY
  11. Engine Oil Cooler Inlet Hose to Water Outlet » Disconnect
  12. Remove the engine oil cooler bolt (5).
  13. Remove the engine oil cooler inlet pipe bolt (4).
  14. Remove the engine oil cooler inlet pipe (2).
  15. Engine Oil Cooler Inlet Pipe Gasket (3) Remove and DISCARD
  16. Raise vehicle.

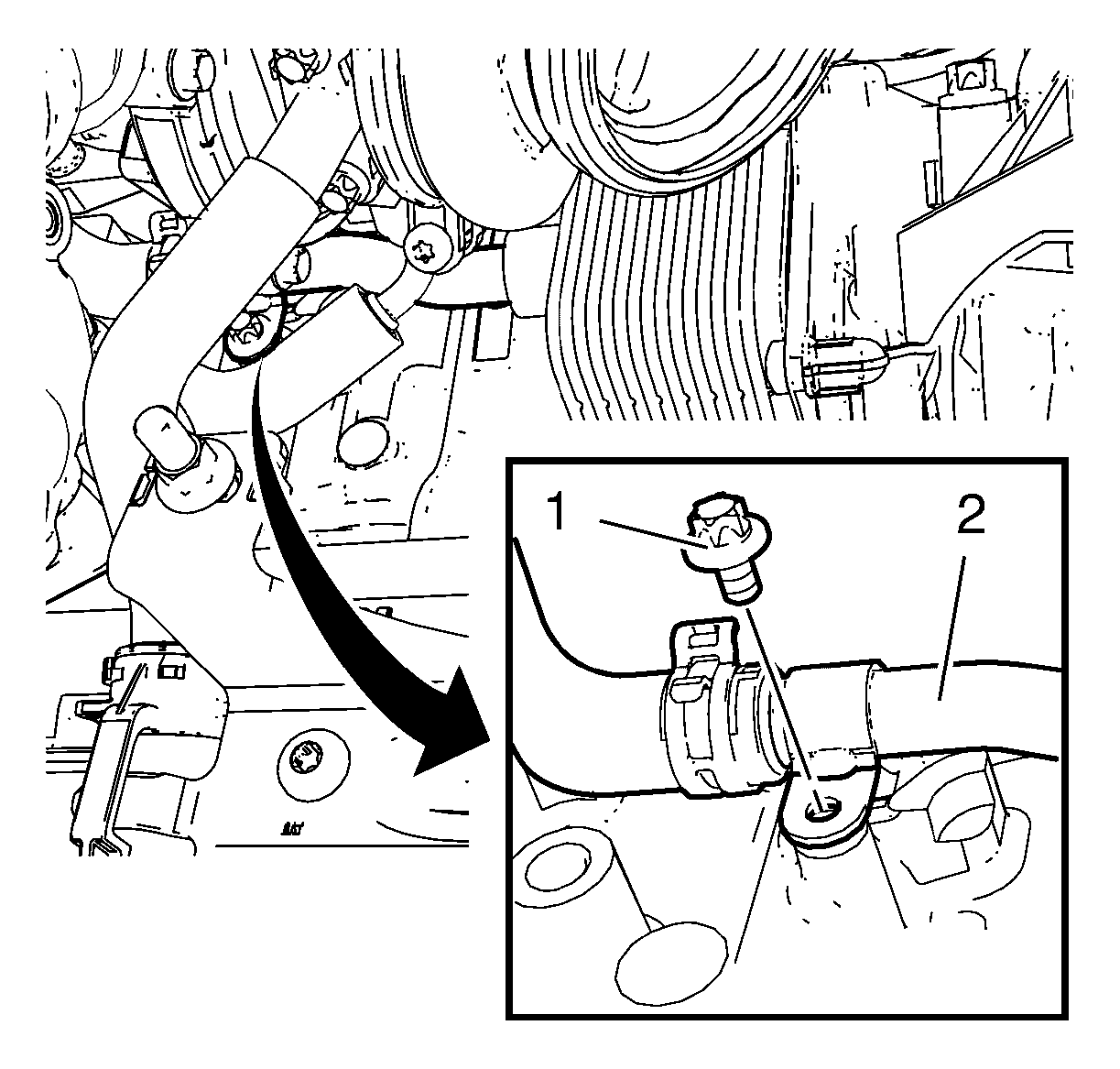

    Fig 3: Oil Cooler Outlet Pipe
    GM2371625Courtesy of GENERAL MOTORS COMPANY
  17. Remove the oil cooler outlet pipe bolt (1) .
  18. Remove the oil cooler outlet pipe (2) in compound with the oil cooler outlet hose.
  19. Lower vehicle.

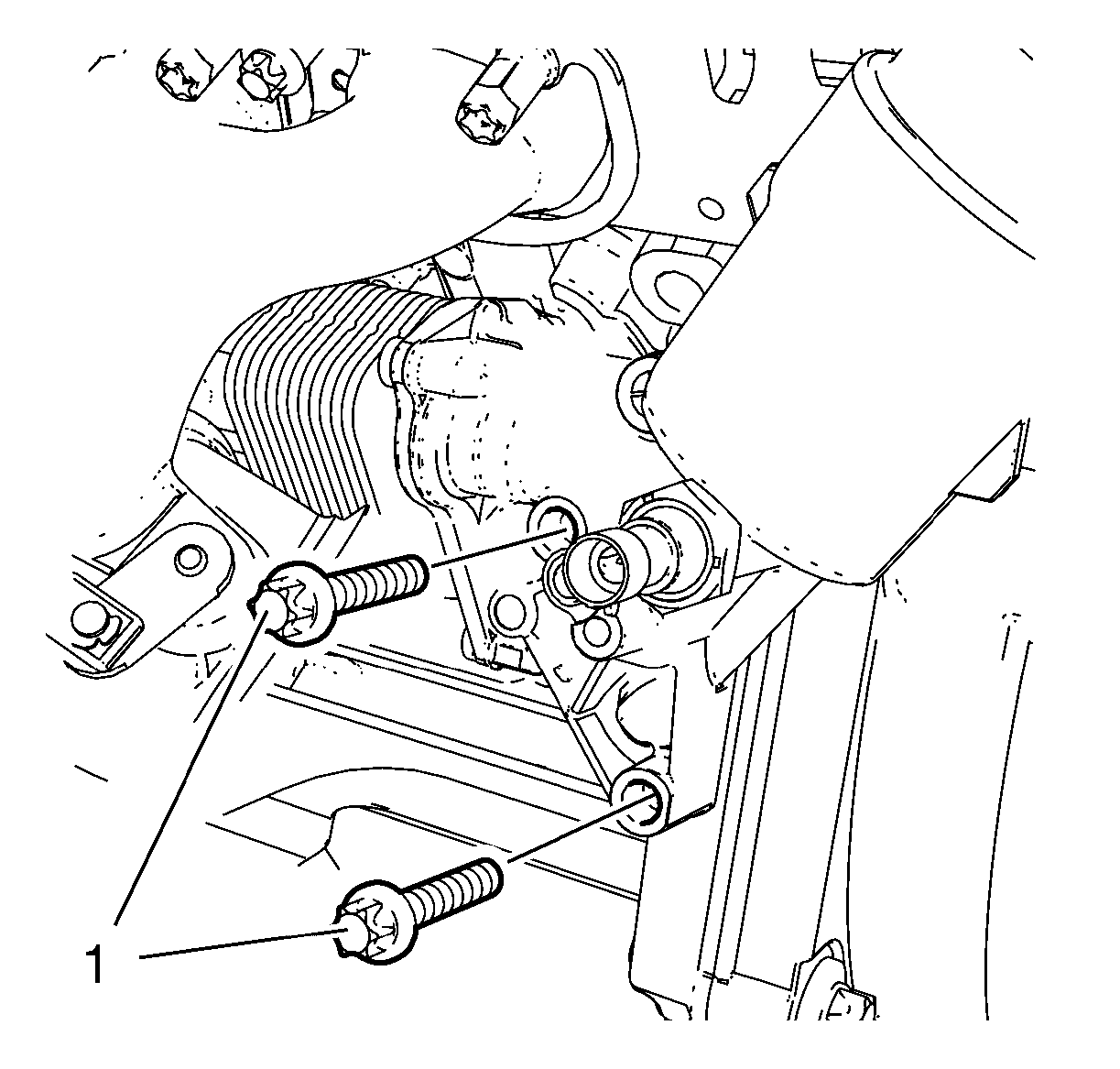

    20. Fig 4: Oil Cooler Bolts
    GM2371626Courtesy of GENERAL MOTORS COMPANY
  20. Electrical Connector to Engine Oil Pressure Indicator Switch » Disconnect
  21. Remove the 2 oil cooler bolts (1).
  22. Raise vehicle.

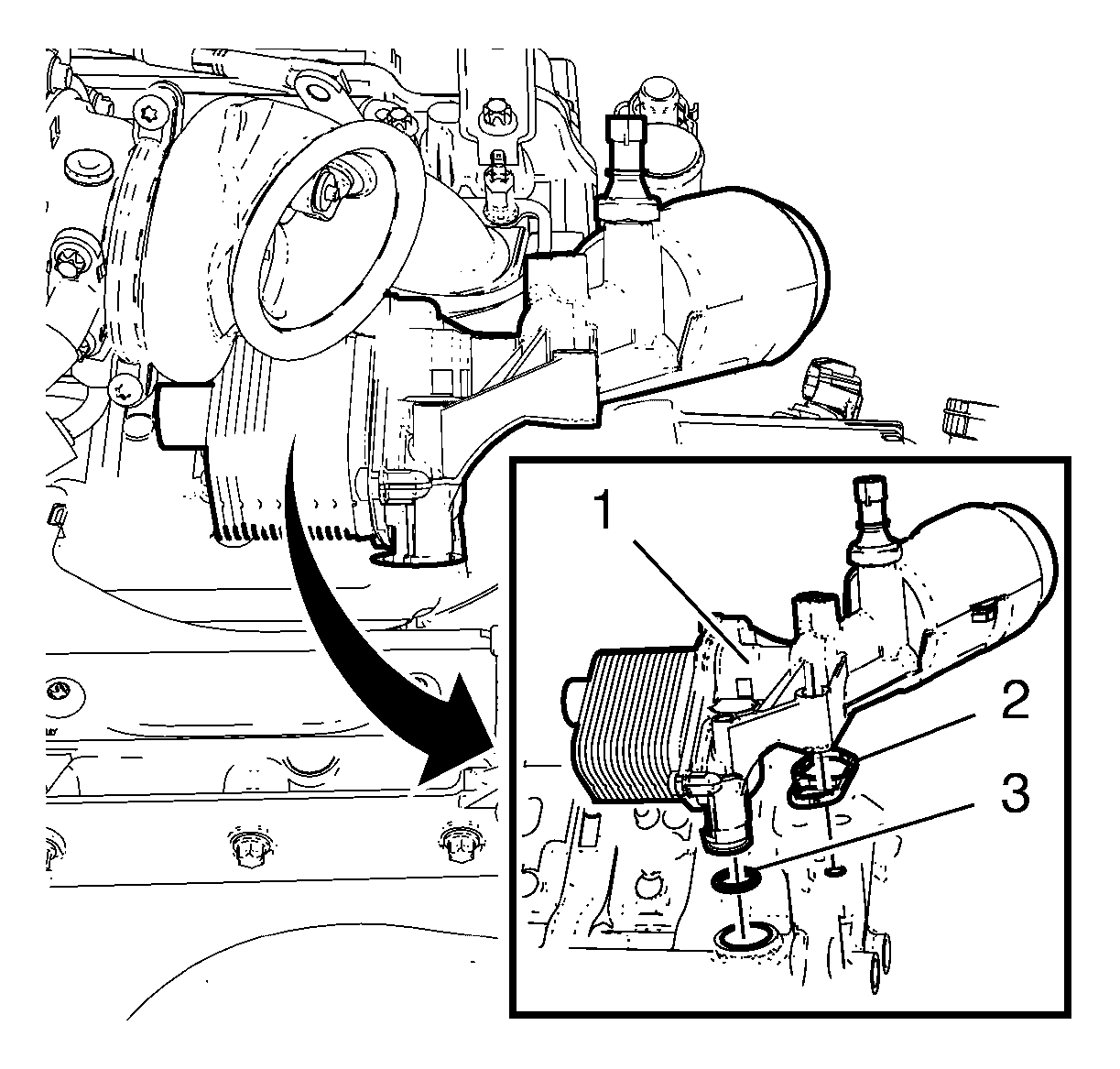

    23. Fig 5: Oil Cooler And Oil Cooler Gasket
    GM2371627Courtesy of GENERAL MOTORS COMPANY
  23. Remove the oil cooler (1).
  24. Engine Oil Cooler Seal (2, 3) » Remove and DISCARD
  25. Remove the oil pressure indicator switch from the oil cooler.
