Installation Procedure

  1. Install the engine oil cooler inlet pipe (2) in compound with a NEW seal ring (3).

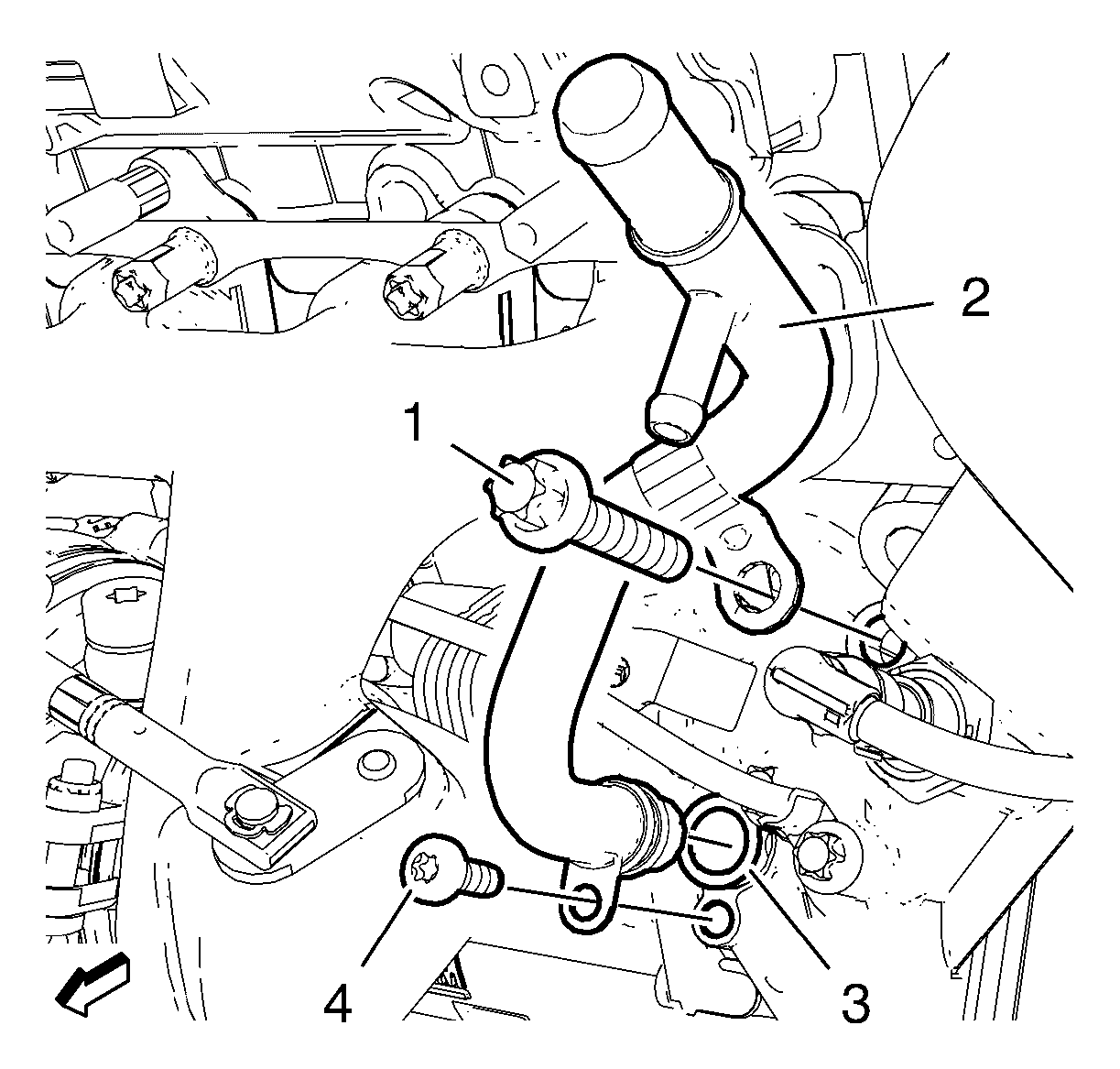

    Fig 1: Identifying Engine Oil Cooler Inlet Pipe
    GM2192292Courtesy of GENERAL MOTORS COMPANY
  2. Install the engine oil cooler bolt (1).
  3. Install the engine oil cooler inlet pipe bolt (4) and tighten to 10 N.m (89 lb in).
    CAUTION: Refer to Fastener Caution .
  4. Tighten the engine oil cooler bolt (1) to 20 N.m (15 lb ft).
  5. Install the turbocharger coolant return pipe hose (2) to the engine oil cooler inlet pipe.

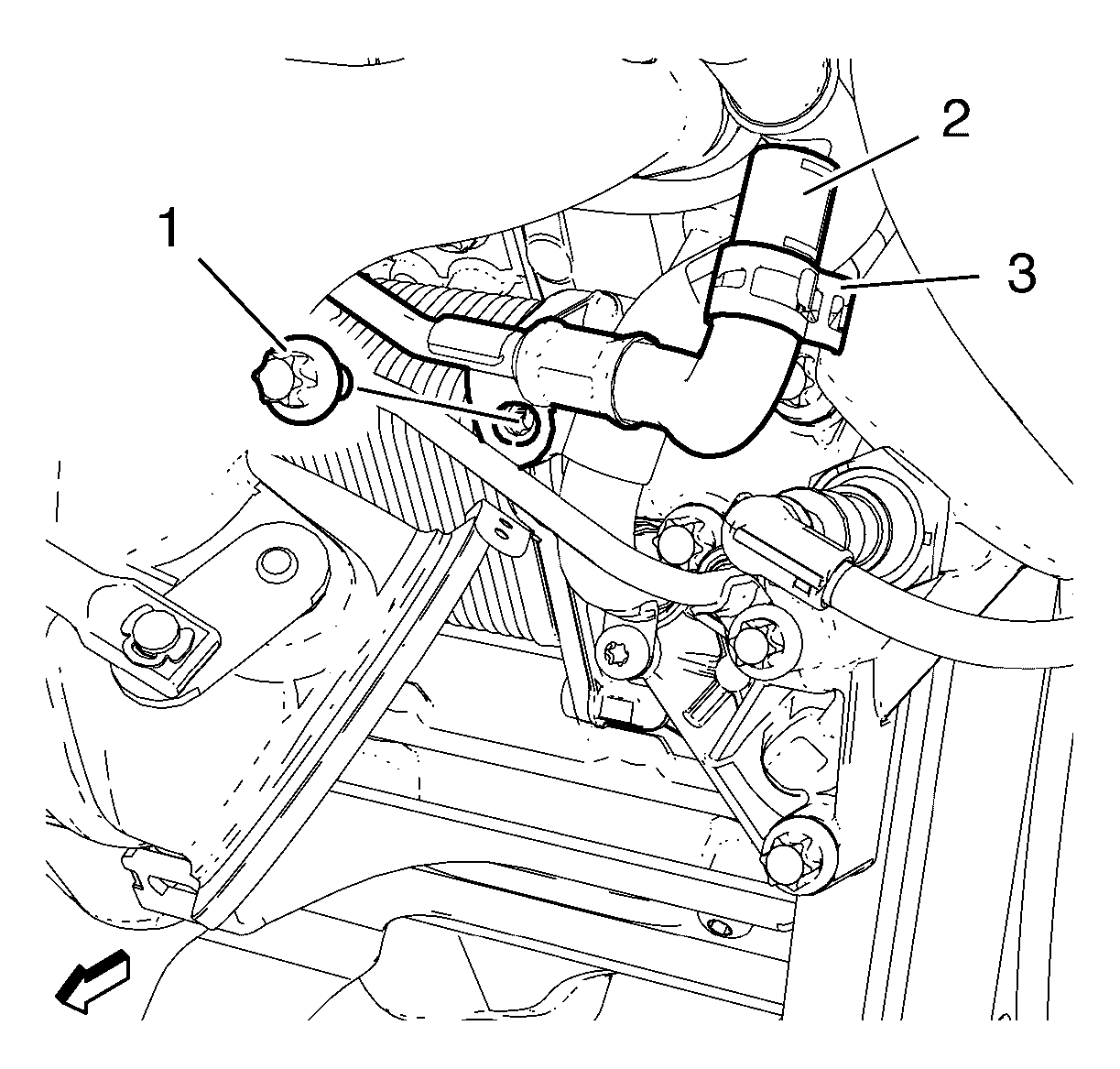

    Fig 2: Turbocharger Coolant Return Pipe Hose, Clamp And Bolt
    GM2192293Courtesy of GENERAL MOTORS COMPANY
  6. Install the turbocharger coolant return pipe hose clamp (3).
  7. Install turbocharger coolant return pipe bolt (1) and tighten to 10 N.m (89 lb in).
  8. Install the engine oil cooler inlet hose to the engine oil cooler inlet pipe. Refer to Engine Oil Cooler Inlet Hose Replacement (1.4L LUV, 1.8L LUW and LWE) .
  9. Install the warm up three way catalytic converter. Refer to Warm Up Three-Way Catalytic Converter Replacement .
  10. Fill up coolant fluid. Refer to Cooling System Draining and Filling (GE-47716 Fill)  and Cooling System Draining and Filling (Static Fill) .
