Installation Procedure

  1. Install the engine coolant air bleed hose (1) to the thermostat housing (3).
    Fig 1: Engine Coolant Air Bleed Hose
    GM2191154Courtesy of GENERAL MOTORS COMPANY
  2. Reposition the clamp (2).
  3. Install the engine coolant air bleed hose (1) to the surge tank (3).

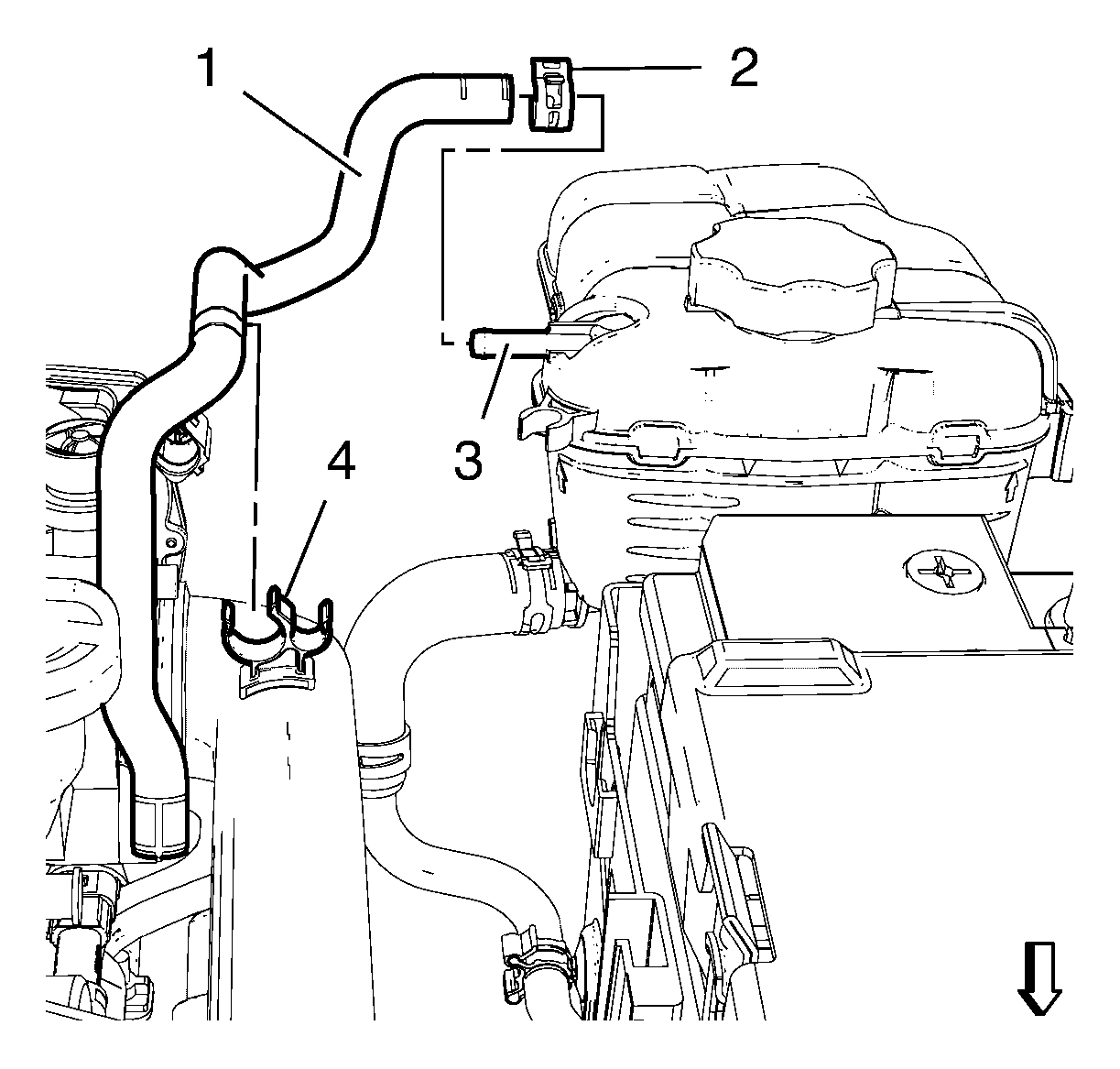

    Fig 2: Engine Coolant Air Bleed Hose Clamp
    GM2191153Courtesy of GENERAL MOTORS COMPANY
  4. Reposition the engine coolant air bleed hose clamp (2).
  5. Clip in the engine coolant air bleed hose (1) to the charge air cooler outlet air hose (4).
  6. Fill the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill)  and Cooling System Draining and Filling (Static Fill) .
  7. Install the engine sight shield. Refer to Engine Sight Shield Replacement .
  8. Close the hood.
