Ignition and Start Switch Replacement

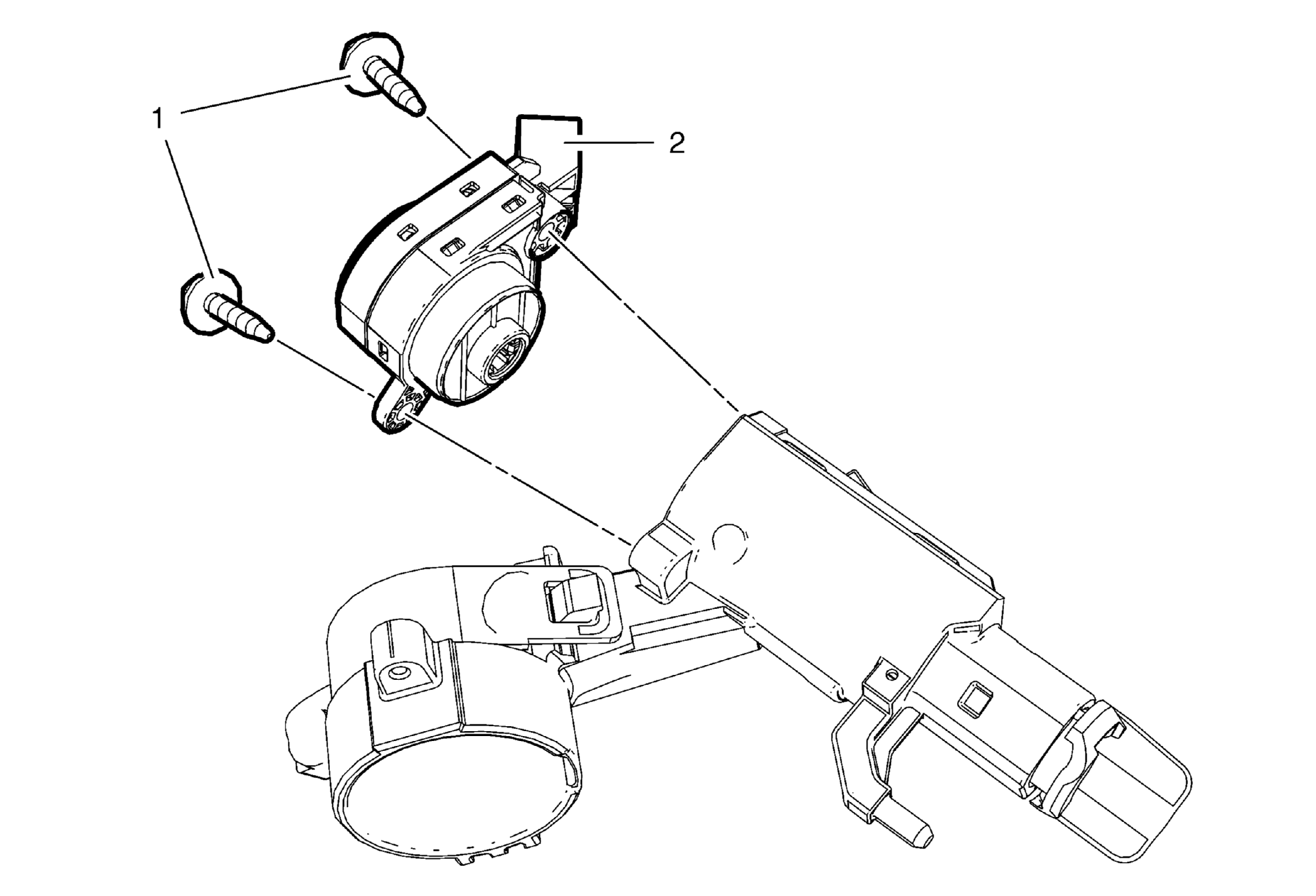

Fig 1: Ignition Switch And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement
1	Ignition and Start Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Reposition the steering column wiring harness retainers in order to gain access to the switch bolts.
2	Ignition and Start Switch

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement

Ignition and Start Switch Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Procedure
Reposition the steering column wiring harness retainers in order to gain access to the switch bolts.

Ignition and Start Switch
