Ignition and Start Switch Housing Replacement

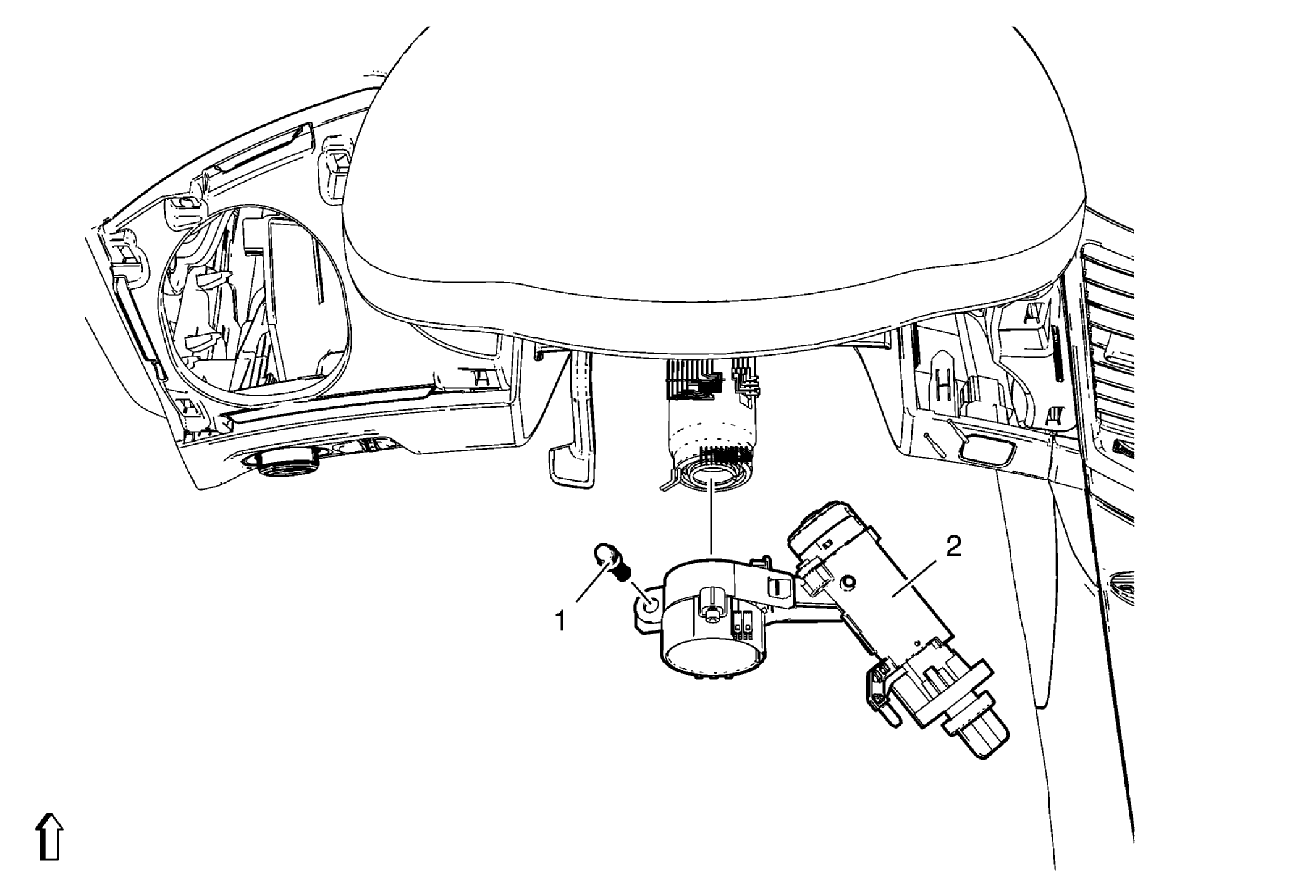

Fig 1: Ignition And Start Switch Housing
GM2028364Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement
  2. Remove the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement
1 Ignition Lock Cylinder Bolt
CAUTION: Refer to Fastener Caution .

Procedure

  1. Use a suitable chisel to remove bolt.
  2. Install NEW bolt and tighten until head tears off.
2 Ignition and Start Switch Housing

Procedure

  1. Disconnect the electrical connector.
  2. Remove ignition and start switch. Refer to Ignition and Start Switch Replacement .
