Front Compartment Fuse Block Housing Replacement

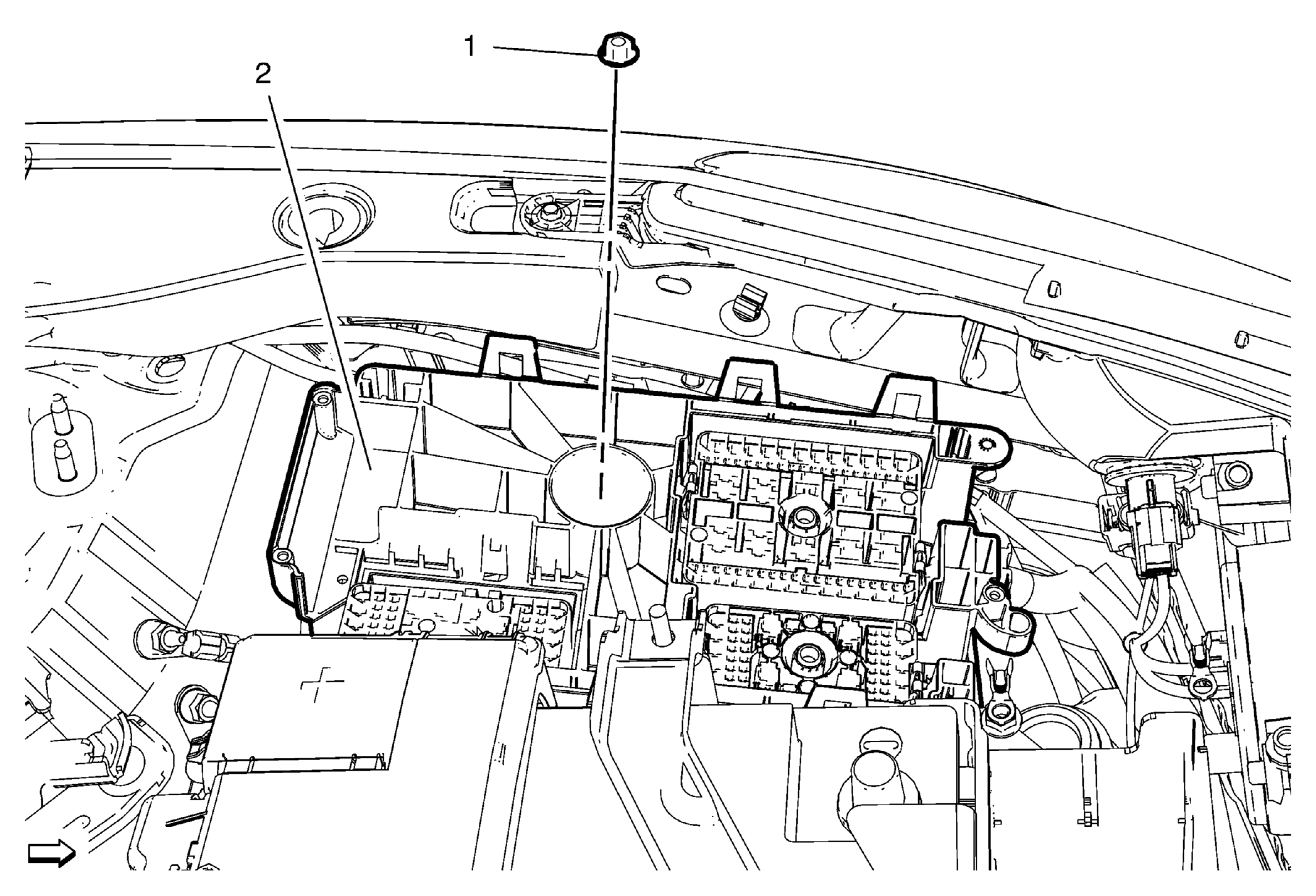

Fig 1: Identifying Front Compartment Fuse Block Housing And Nut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement . Remove front compartment fuse block. Refer to Front Compartment Fuse Block Replacement .
1	Front Compartment Fuse Block Housing Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front Compartment Fuse Block Housing Procedure Remove 3 electrical connectors from front compartment fuse block housing. Remove attaching parts and unclip wiring harnesses from front compartment fuse block housing.

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement .
Remove front compartment fuse block. Refer to Front Compartment Fuse Block Replacement .

Front Compartment Fuse Block Housing Nut

CAUTION: Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Front Compartment Fuse Block Housing

Procedure

Remove 3 electrical connectors from front compartment fuse block housing.
Remove attaching parts and unclip wiring harnesses from front compartment fuse block housing.
