Windshield Washer Solvent Container Filler Tube Replacement

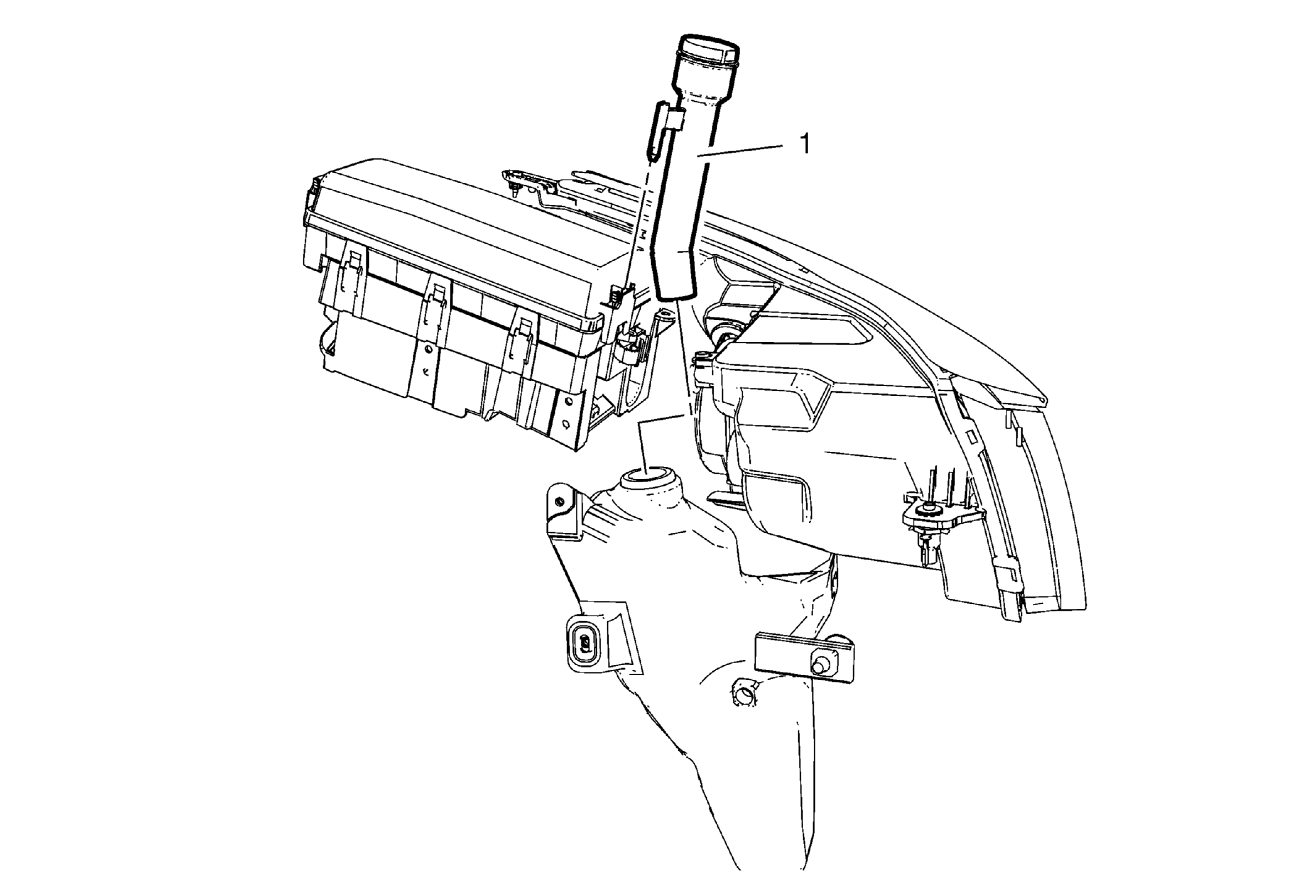

Fig 1: Windshield Washer Solvent Container Filler Tube

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Washer Solvent Container Filler Tube Assembly Procedure Pull the upper tube assembly from the lower washer container and inspect the grommet, replace if damaged. Insert the tube rib flush to the top seal at the lower container.
