Installation Procedure

Install the wheel speed sensor to the vehicle.

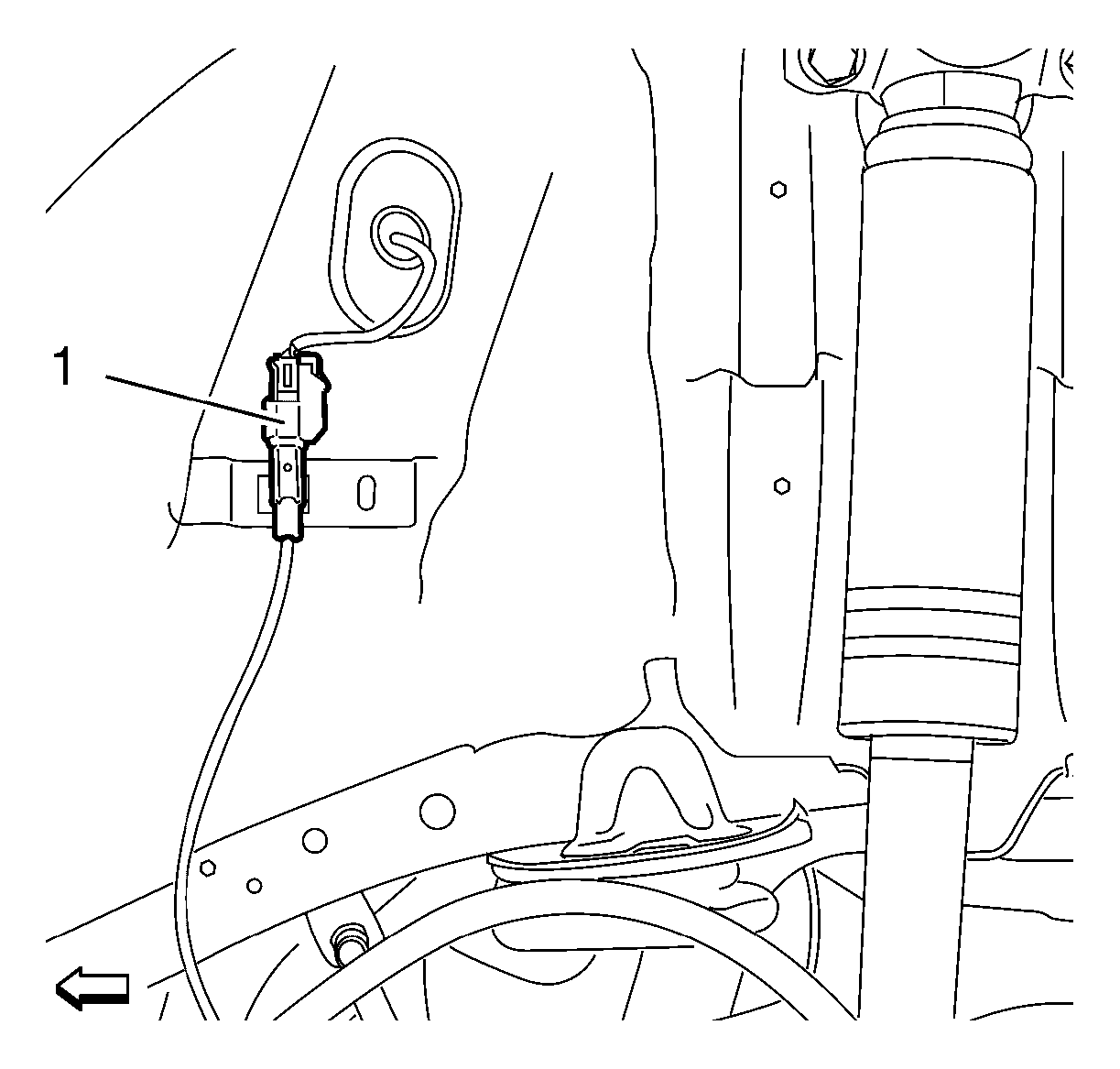

Fig 1: Wheel Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS COMPANY
Connect the electrical connector (1).
Install the wheel speed sensor (1) to steering knuckle.

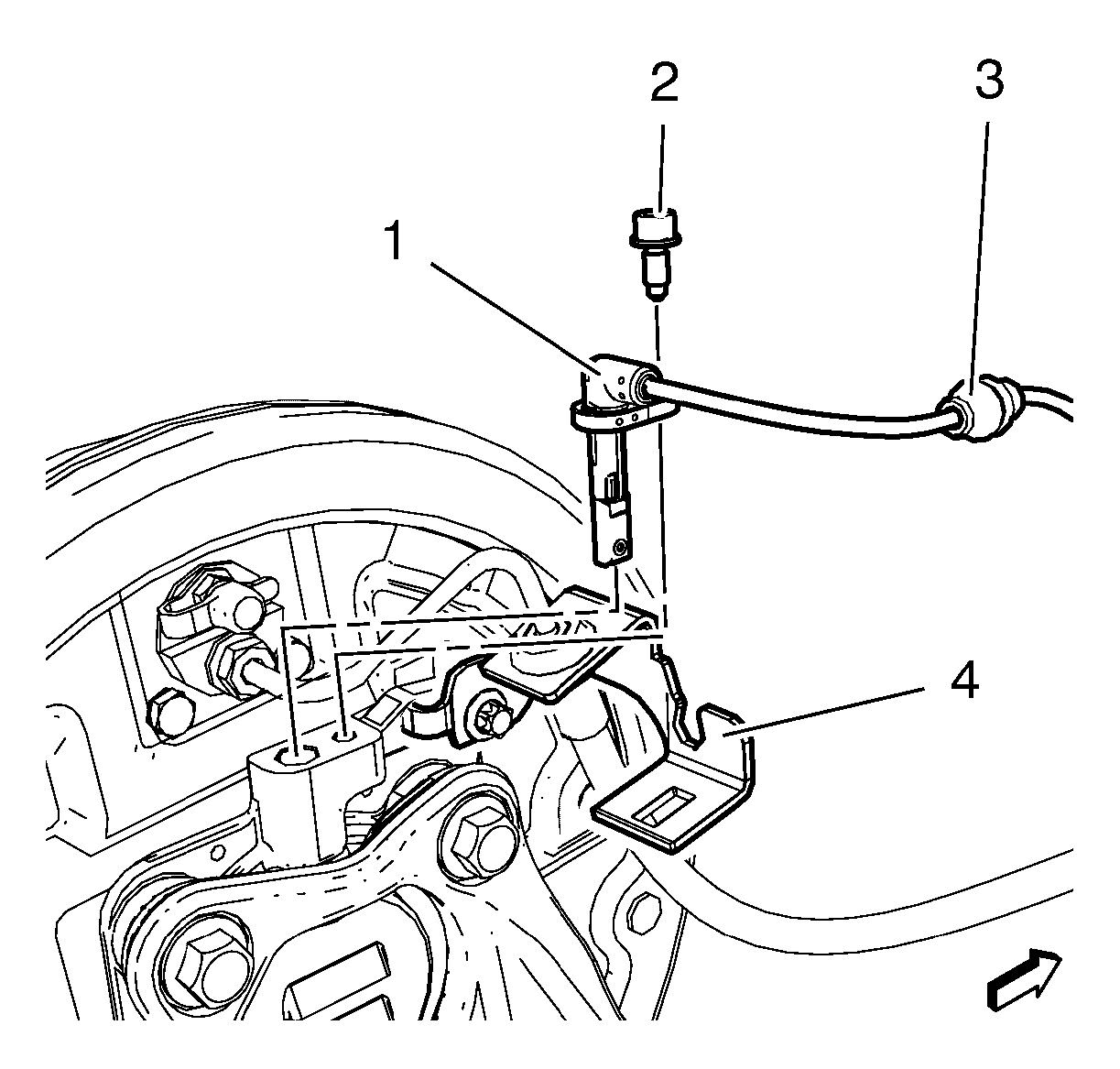

Fig 2: Wheel Speed Sensor And Wheel Speed Sensor Screw
Courtesy of GENERAL MOTORS COMPANY
Install wiring harness (3) at the bracket (4).
Install the wheel speed sensor screw (2) and tighten to 6 N.m (53 lb in).
CAUTION: Refer to Fastener Caution .
Install the rear brake hose to the wheel cylinder and the rear backing plate. Refer to Rear Brake Hose Replacement (Disc Brake) and Rear Brake Hose Replacement (Drum Brake)
Install rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .
