Rear Wheelhouse Liner Replacement

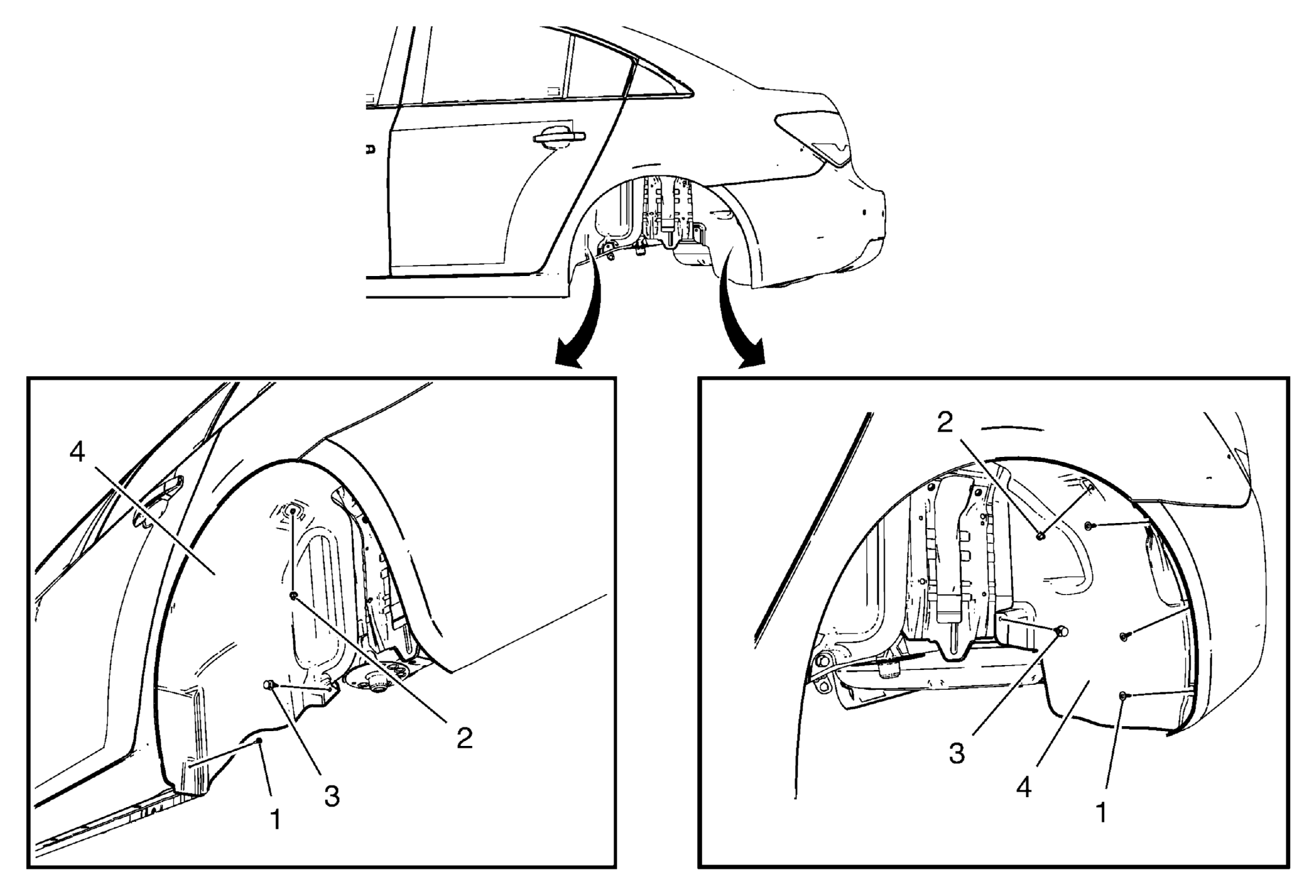

Fig 1: View Of Rear Wheelhouse Panel Liner, Retainers, Nuts And Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Rear Wheelhouse Panel Liner Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (23 lb in)
2	Rear Wheelhouse Panel Liner Nut (Qty: 2) Tighten 2.5 N.m (23 lb in)
3	Rear Wheelhouse Panel Liner Plastic Retainer (Qty: 2)
4	Rear Wheelhouse Panel Liner
