Power Brake Booster Vacuum Pipe Replacement (2.0L Diesel LUZ)

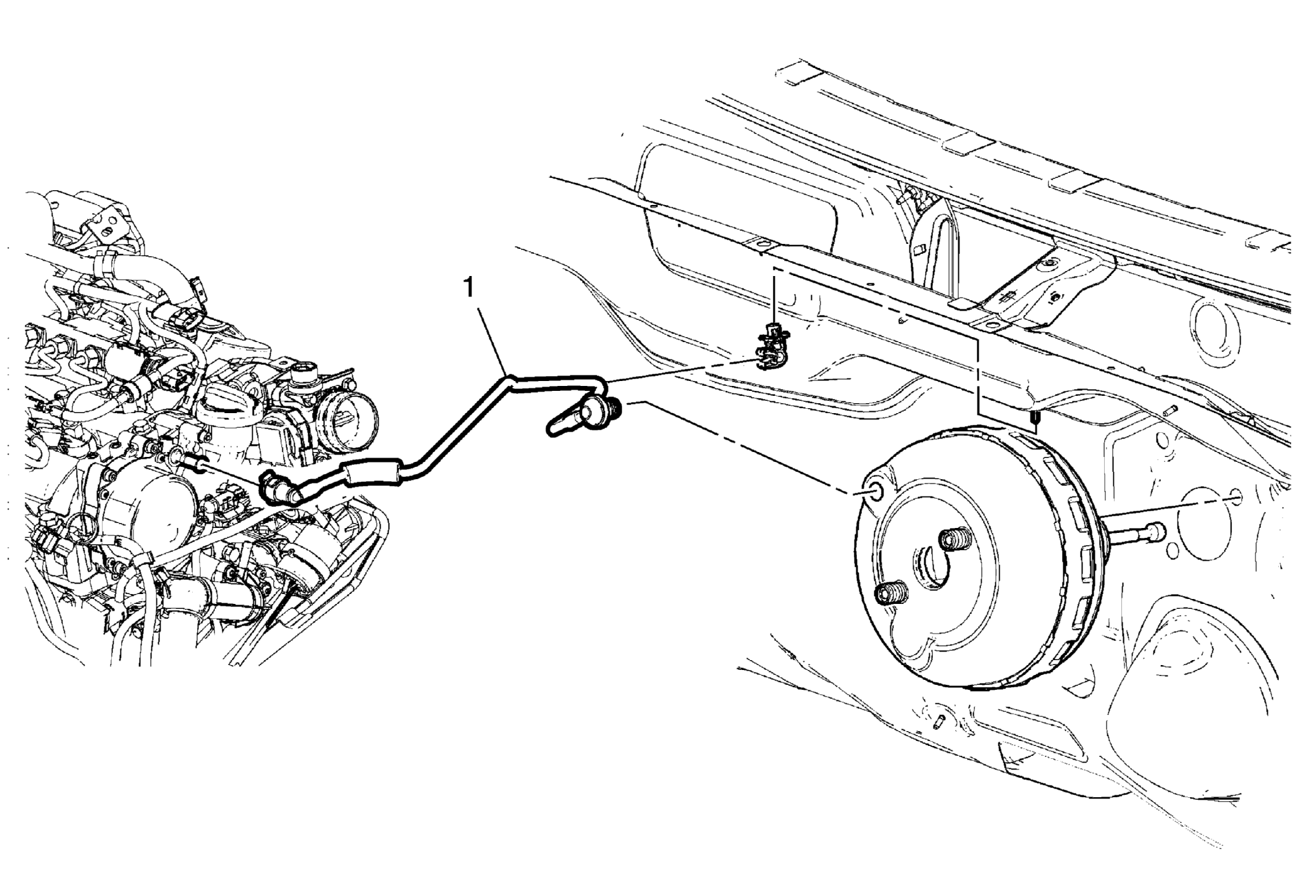

Fig 1: Power Brake Booster Vacuum Pipe (2.0L Diesel LUZ)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1	Power Brake Booster Vacuum Pipe Procedure Disconnect the quick fitting from the vacuum pump assembly. Refer to Plastic Collar Quick Connect Fitting Service . Disconnect the vacuum pipe from the power brake booster. Unclip the pipe from the booster vacuum hose clip.

Callout

Component Name

Preliminary Procedure
Remove the engine sight shield. Refer to Engine Sight Shield Replacement .

Power Brake Booster Vacuum Pipe

Procedure

Disconnect the quick fitting from the vacuum pump assembly. Refer to Plastic Collar Quick Connect Fitting Service .
Disconnect the vacuum pipe from the power brake booster.
Unclip the pipe from the booster vacuum hose clip.
