Rear Side Door Window Weatherstrip Replacement

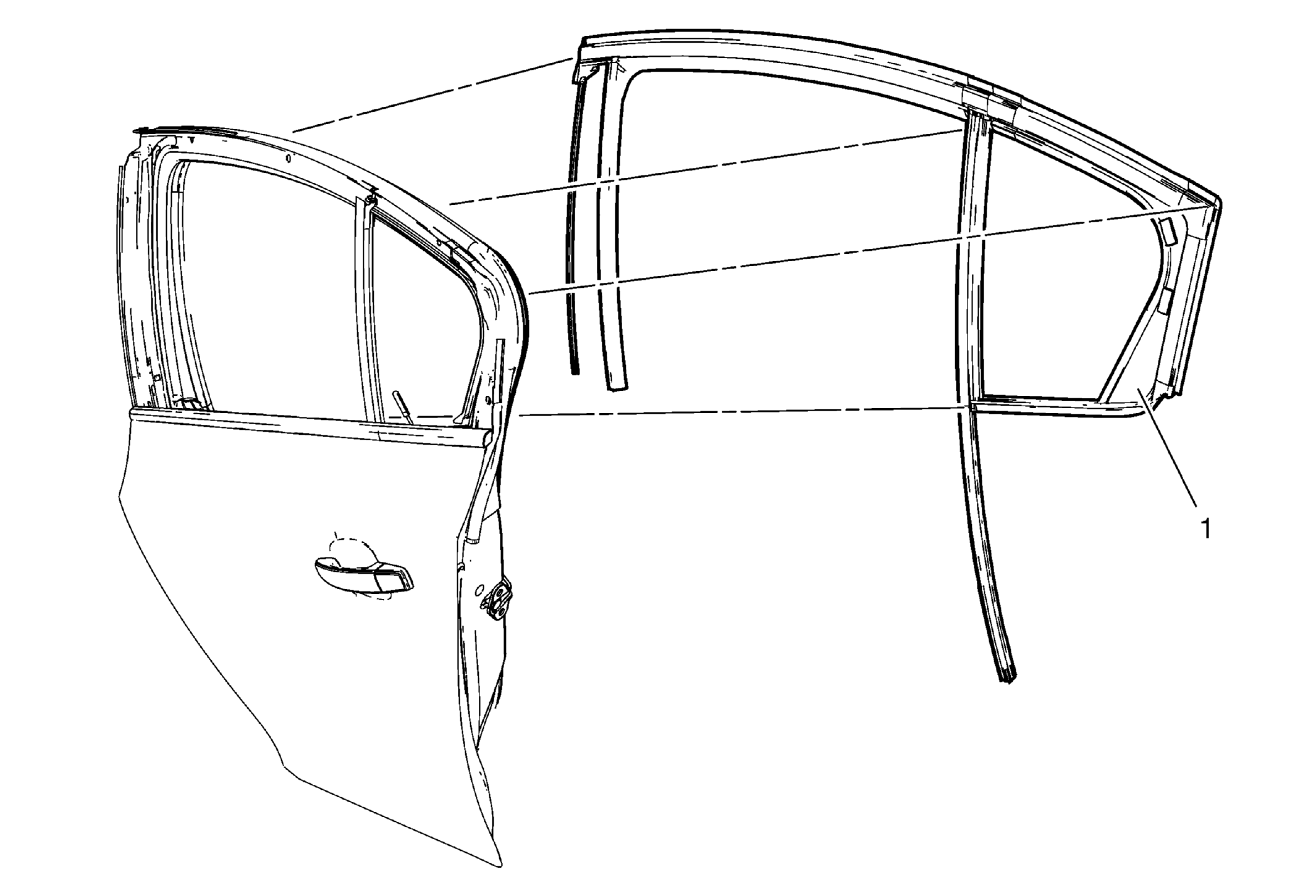

Fig 1: Rear Side Door Window Weatherstrip
GM2027682Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear side door window frame front cover. Refer to Rear Side Door Window Frame Front Cover Replacement .
  2. Remove the rear side door window. Refer to Rear Side Door Window Replacement .
1 Rear Side Door Window Weatherstrip

Procedure

  1. Pull the rear side door window weatherstrip away from the outer window flange to remove.
  2. Remove the rear side door stationary window from the rear side door window weatherstrip.
