Rear Side Door Window Frame Front Cover Replacement

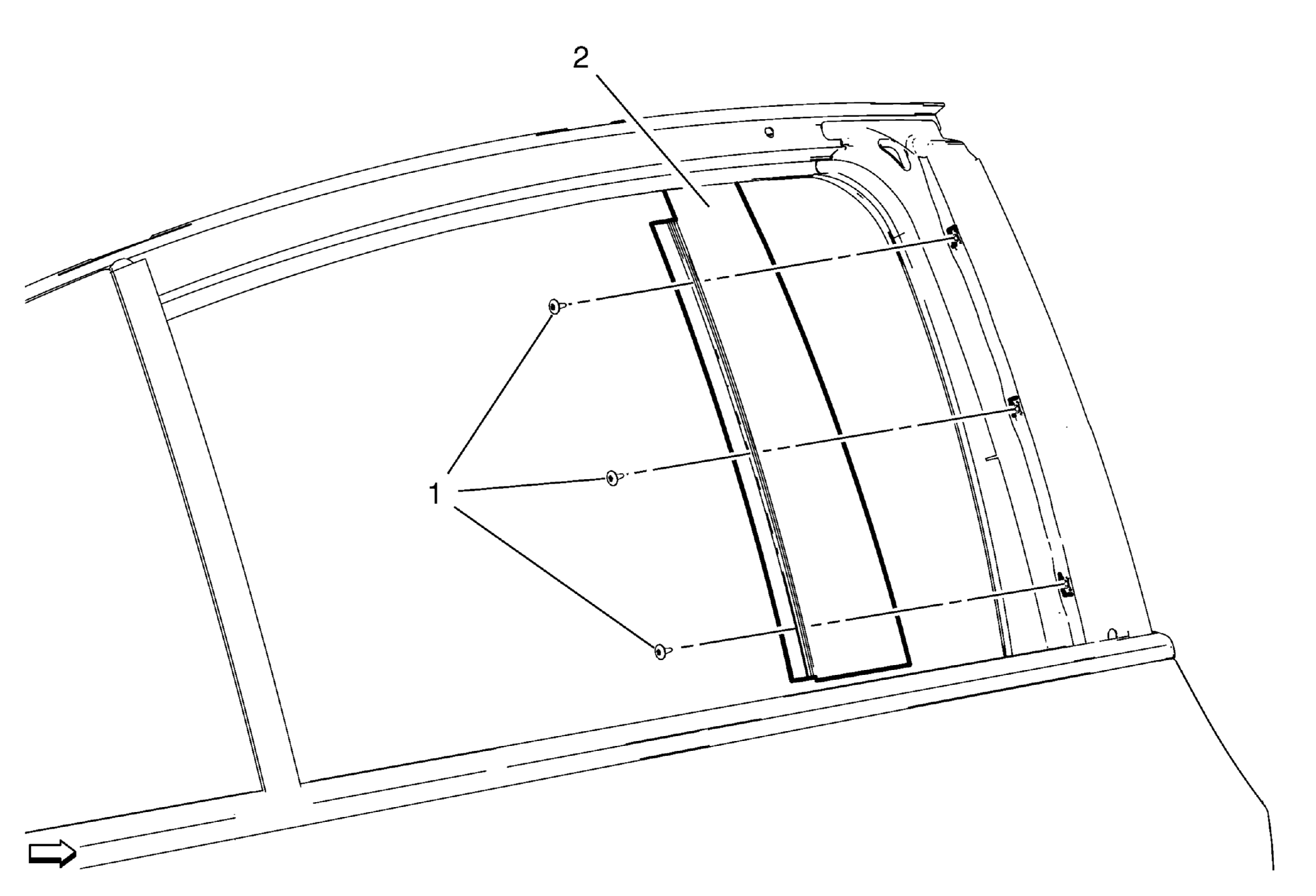

Fig 1: View Of Rear Side Door Window Frame Front Cover And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Window Frame Front Cover Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure  To access the bolts, loosen the rear side door window weatherstrip.
2	Rear Side Door Window Frame Front Cover
