Rear Seat Belt Buckle Replacement

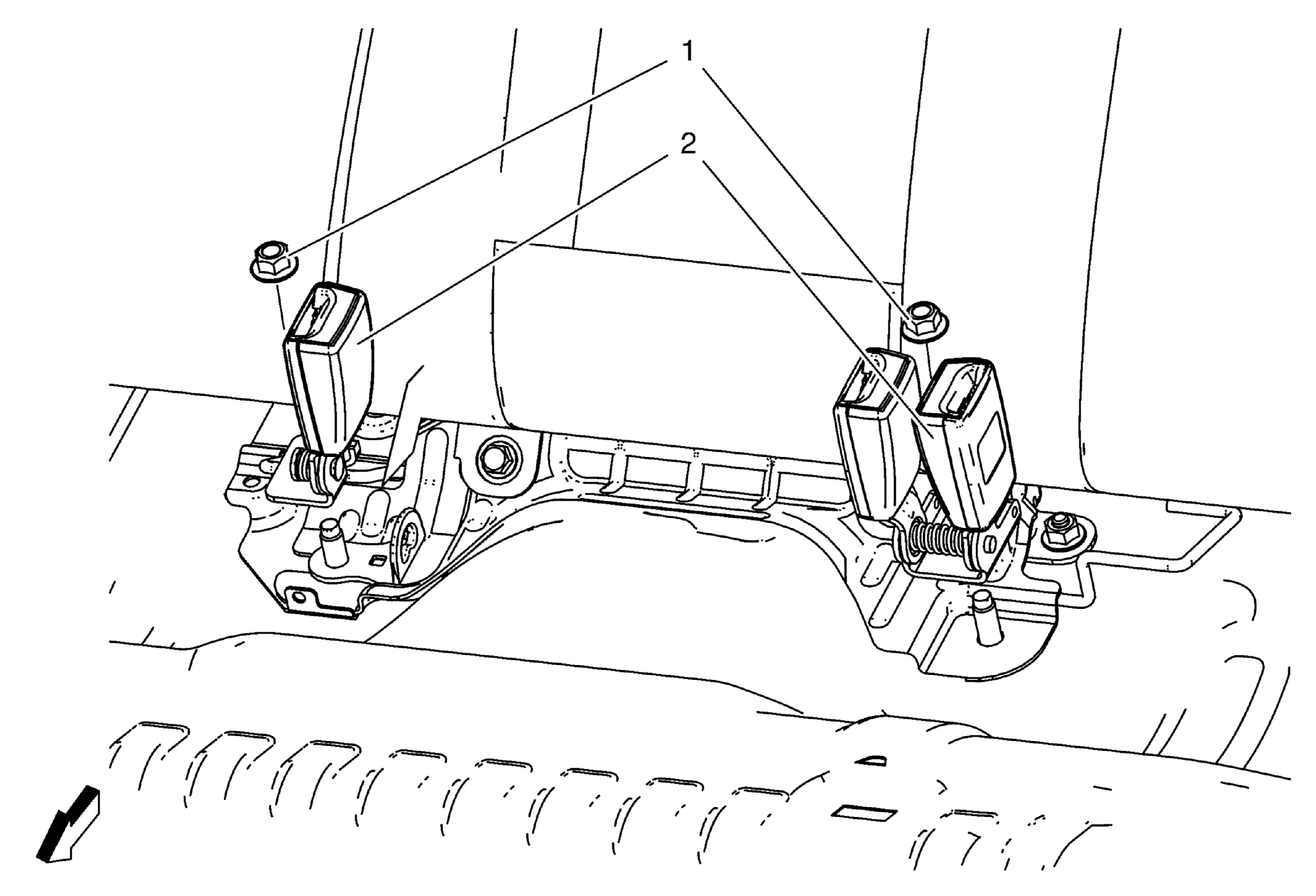

Fig 1: Rear Seat Buckle Side Belt
GM2027056Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Rear Seat Cushion Removal and Installation
1 Rear Seat Belt Buckle Nut [2x]
CAUTION: Refer to Fastener Caution

Tighten
45 N.m (33 lb ft)
2 Rear Seat Belt Buckle
