Rear Seat Back Cushion Panel Replacement (60 Percent Seat)

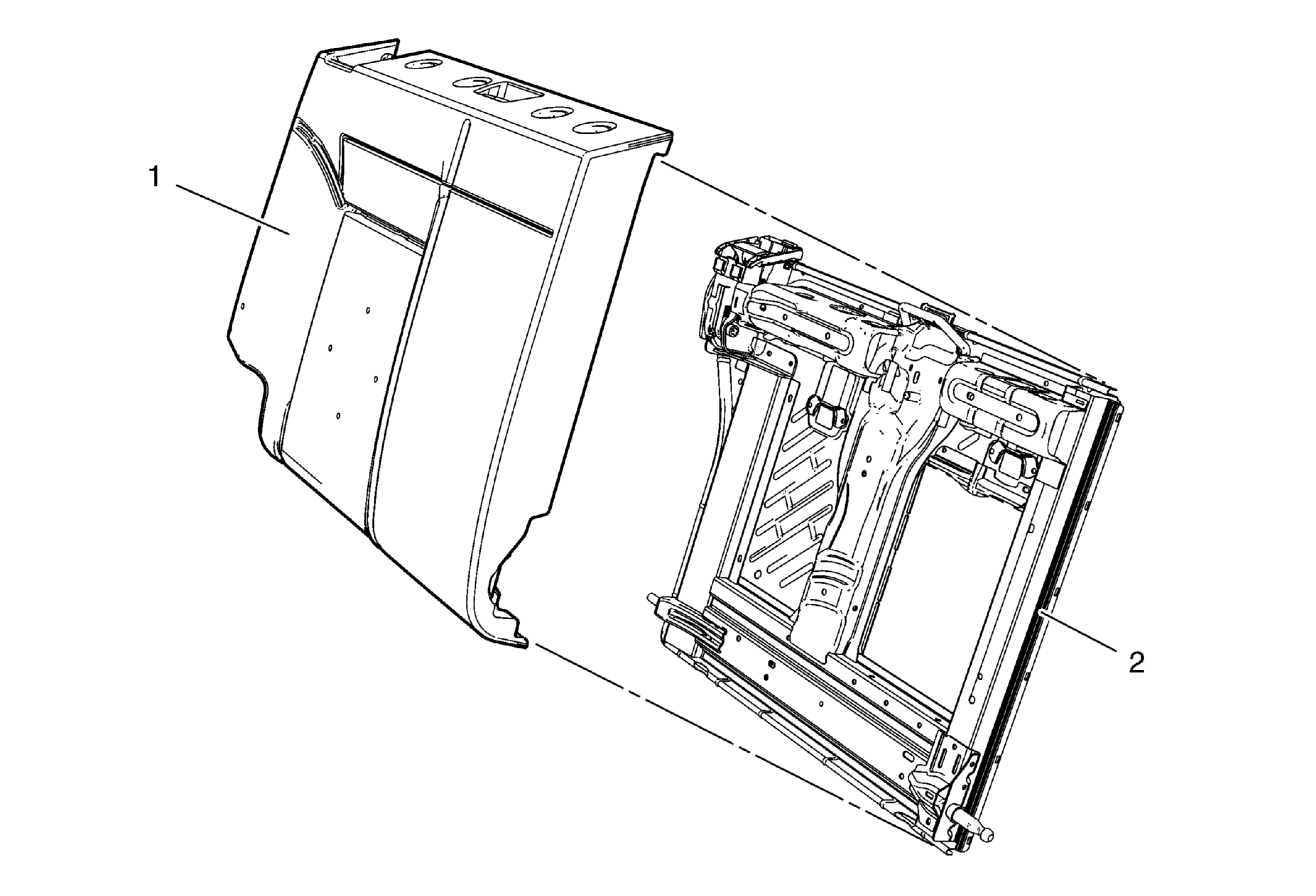

Fig 1: Rear Seat Back Cushion Panel, Cover And Pad (60 Percent Seat)
GM2191380Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat back. Refer to Rear Seat Removal and Installation (60 Percent Seat) .
  2. Remove the rear seat back cushion latch release knob bezel. Refer to Rear Seat Back Cushion Latch Release Knob Bezel Replacement (60 Percent Seat) .
  3. Remove the rear seat shoulder belt opening cover. Refer to Rear Seat Belt Opening Cover Replacement .
  4. Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement .
1 Rear Seat Back Cushion Cover and Pad
2 Rear Seat Back Cushion Panel
