Removal Procedure: Notes

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
WARNING:
When carrying a live inflator module, make sure the bag opening is pointed away from you. This minimizes the chance of injury in the case of an accidental deployment. Never carry the inflator module by the wires. Never carry the inflator module by the connector on the underside of the module.

Make sure that the bag and trim cover are facing up whenever you place a live inflator module on any surface. This is necessary to provide a free space for the bag to expand in the unlikely event of accidental deployment.

Never rest the steering column assembly on the steering wheel with the inflator module face down and the column vertical. This may result in personal injury.

WARNING: Refer to SIR Warning .
Disconnect the seat belt from the seat belt tensioner. Refer to Front Seat Belt Anchor Plate Tensioner Replacement
Remove and DISCARD the 2 bolts (1).

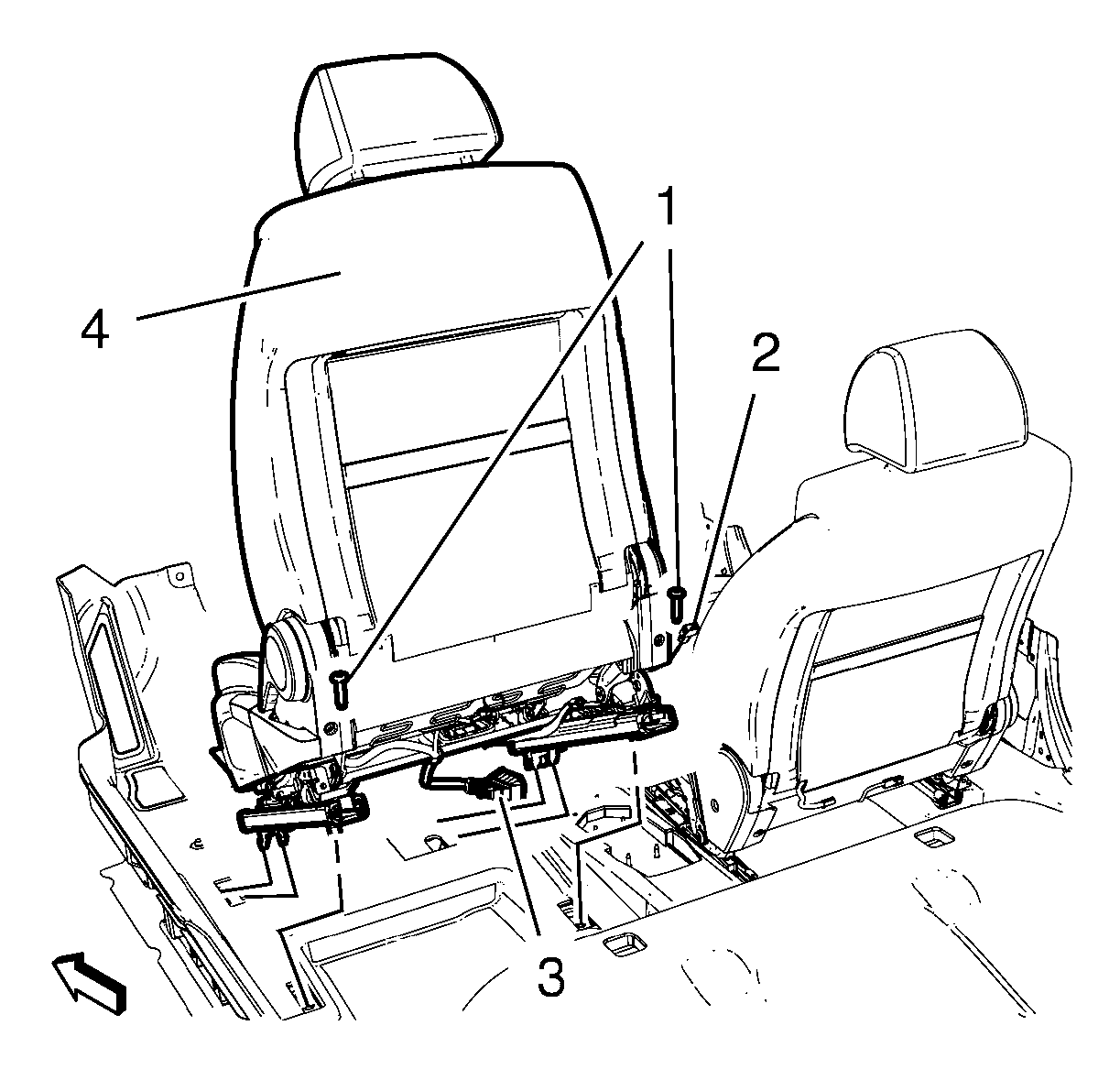

Fig 1: Locating Front Seat Components
Courtesy of GENERAL MOTORS COMPANY
Release and disconnect the wiring harness plug (3) front seat.
NOTE: If the seat adjuster has become inactive and the seat does not allow access to the rear bolts, then follow "Procedure A" below.
Remove the front seat (4) from the guide in front.
