Driver or Passenger Seat Head Restraint Guide Replacement

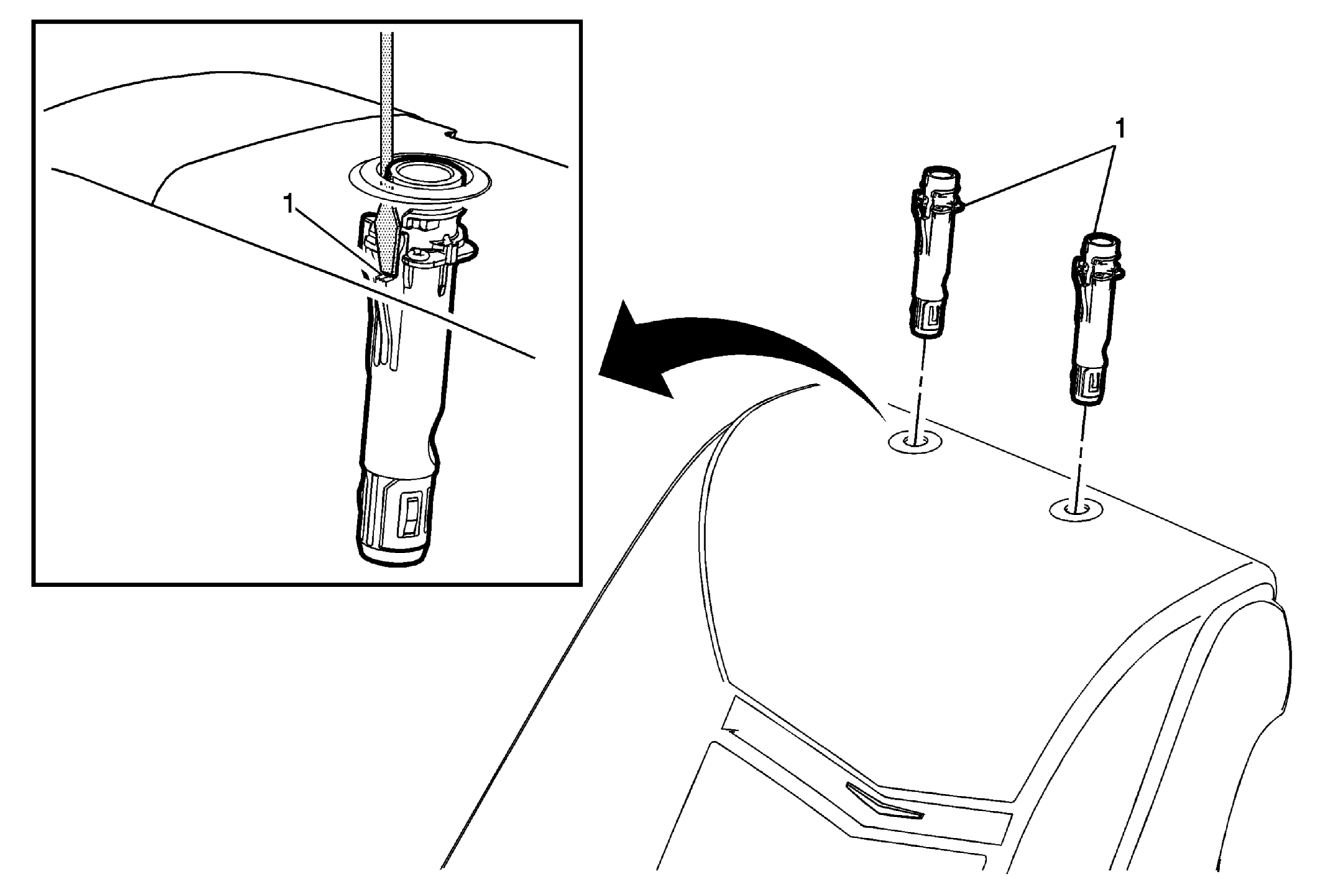

Fig 1: Driver or Passenger Seat Head Restraint Guides
GM2755719Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove front seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement .
1 Front Seat Head Restraint Guide
Procedure
Use a flat-bladed tool to release guide for removal.
