Driver or Passenger Seat Head Restraint Replacement

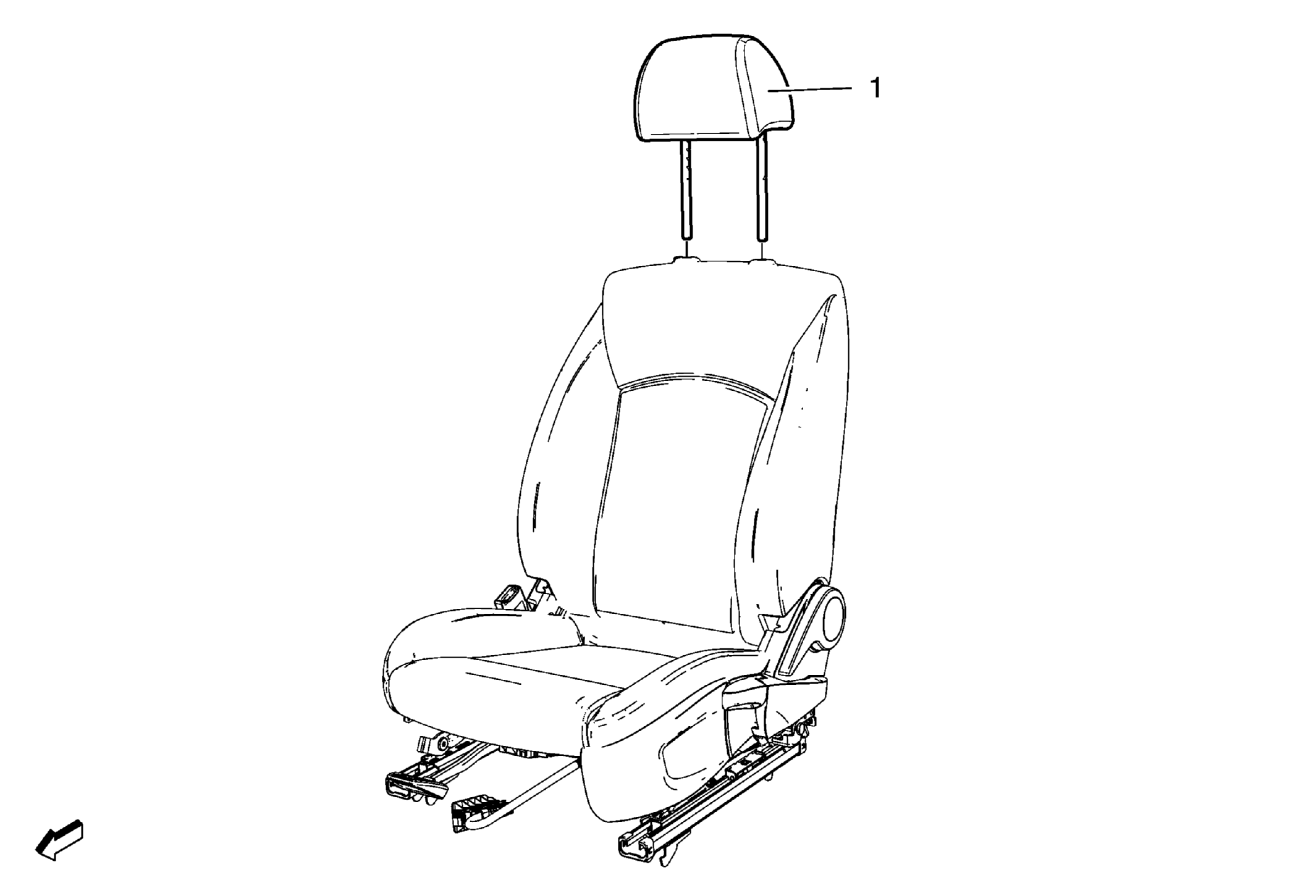

Fig 1: Driver Or Passenger Seat Head Restraint
GM2027439Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Head Restraint

Procedure

  1. Raise the headrest to the full upward position.
  2. Push both flush button on the head restraint guide.
  3. Remove the head restraint by pulling up on the restraint.
