Outside Rearview Mirror Housing Replacement

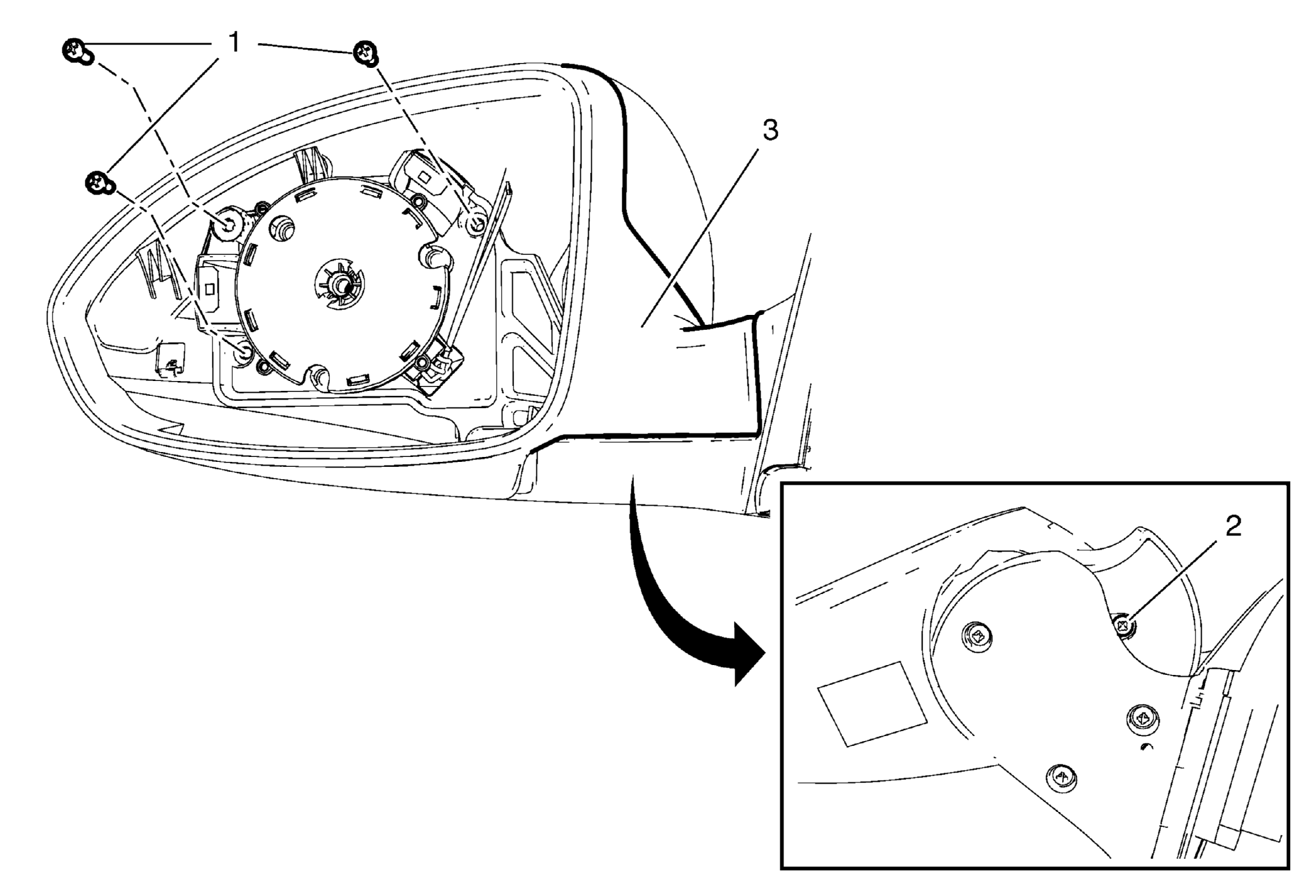

Fig 1: Outside Rearview Mirror Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement .
1	Outside Rearview Mirror Housing Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Lower Outside Rearview Mirror Housing Screw Tighten  2.5 N.m (22 lb in)
3	Outside Rearview Mirror Housing
