Outside Rearview Mirror Housing Cover Replacement

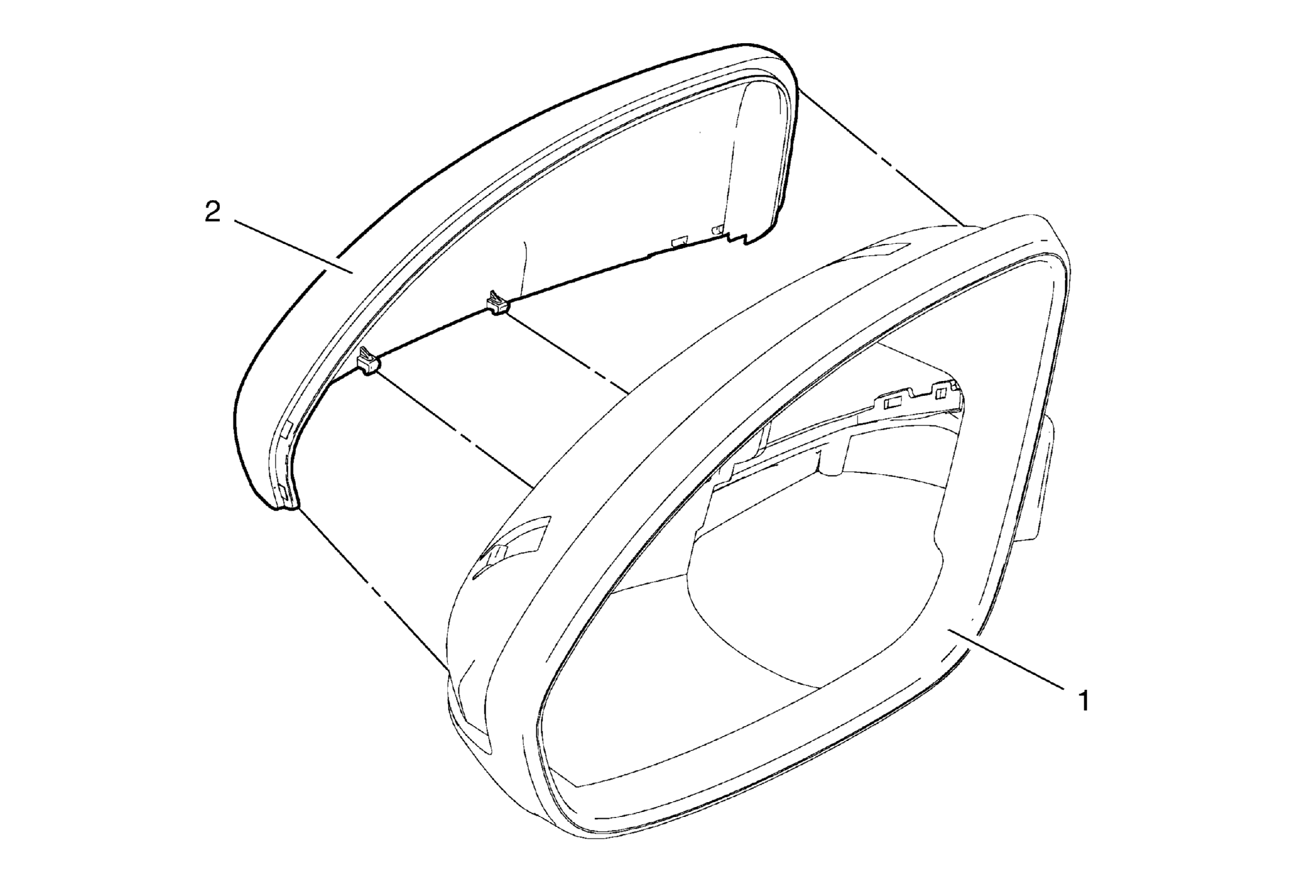

Fig 1: Outside Rearview Mirror Housing Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove outside rearview mirror bracket assembly from mirror housing. Refer to Outside Rearview Mirror Bracket Replacement .
1	Outside Rearview Mirror Housing
2	Outside Rearview Mirror Housing Cover Procedure Using plastic pry tools, insert tools on top and bottom between the housing cover and mirror body. Pry carefully and equally on top and bottom to release housing toward the front of vehicle. Install housing cover to mirror body by applying pressure on housing cover toward the rear of vehicle until retainers are engaged.

Callout

Component Name

Preliminary Procedure
Remove outside rearview mirror bracket assembly from mirror housing. Refer to Outside Rearview Mirror Bracket Replacement .

Outside Rearview Mirror Housing

Outside Rearview Mirror Housing Cover

Procedure

Using plastic pry tools, insert tools on top and bottom between the housing cover and mirror body.
Pry carefully and equally on top and bottom to release housing toward the front of vehicle.
Install housing cover to mirror body by applying pressure on housing cover toward the rear of vehicle until retainers are engaged.
