Rear Side Door Window Switch Bezel Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . |
|

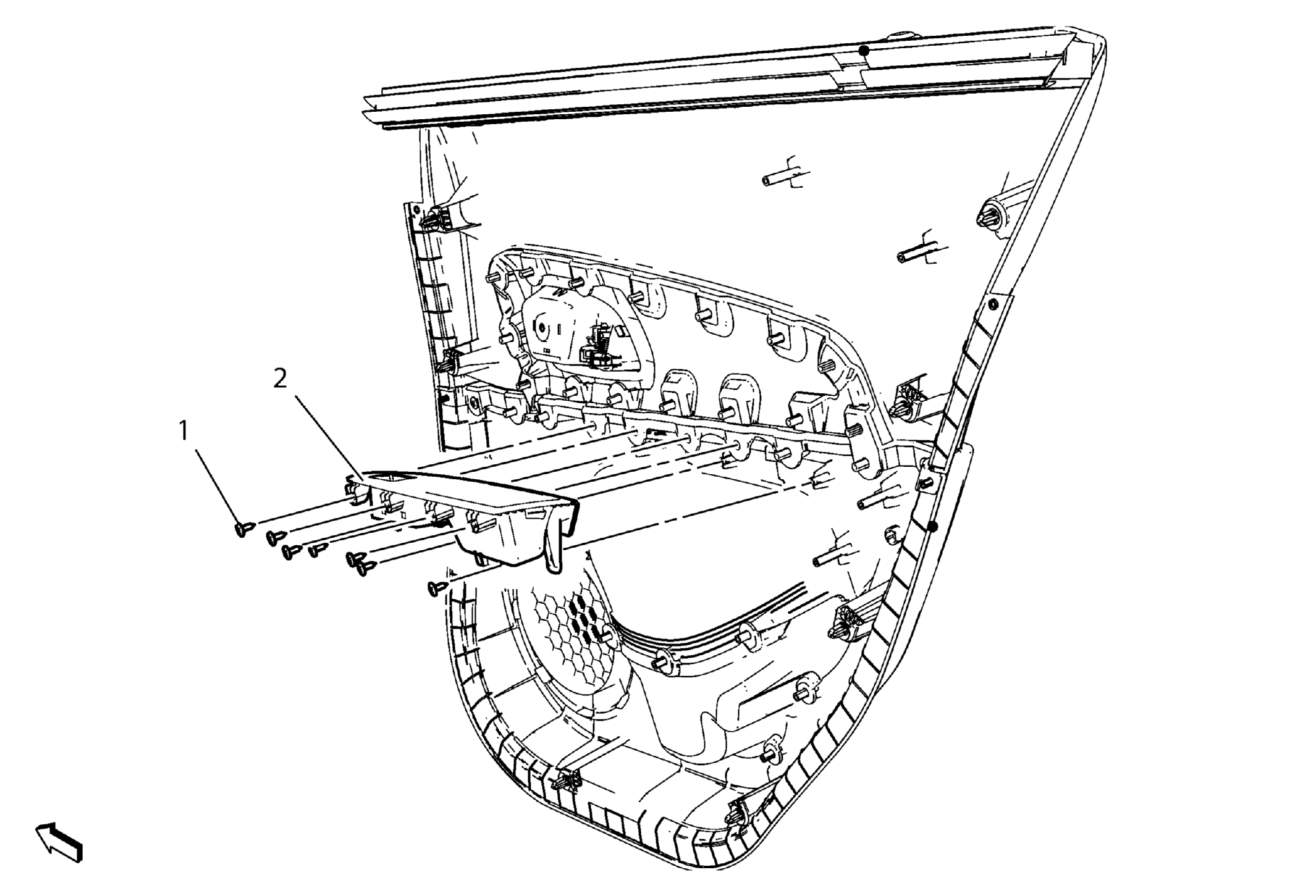

| 1 | Rear Side Door Window Switch Bezel Screw (Qty: 7)
CAUTION:
Refer to Fastener Caution
. Procedure Remove screws from the backside of the door trim panel. Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Side Door Window Switch Bezel Procedure Lift and remove the switch bezel from the door trim panel. |
