Rear Compartment Lid Inner Panel Trim Replacement

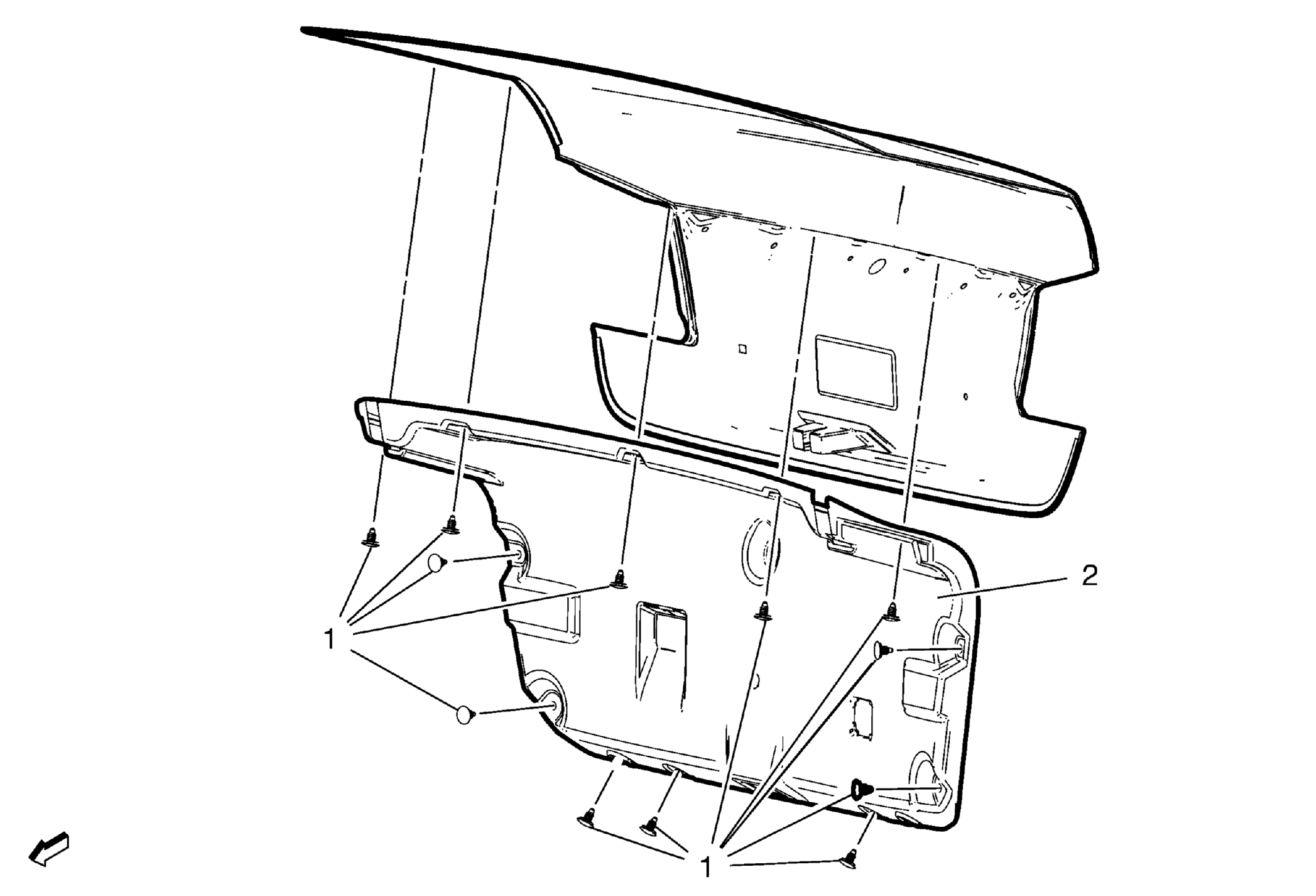

Fig 1: Rear Compartment Lid Inner Panel Trim

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment lid pull handle. Refer to Rear Compartment Lid Pull Handle Replacement . Remove the rear compartment lid latch cover. Refer to Rear Compartment Lid Latch Cover Replacement .
1	Rear Compartment Lid Inner Panel Trim Retainer (Qty: 12)
2	Rear Compartment Lid Inner Panel Trim Procedure Reposition the emergency release handle as required.

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid pull handle. Refer to Rear Compartment Lid Pull Handle Replacement .
Remove the rear compartment lid latch cover. Refer to Rear Compartment Lid Latch Cover Replacement .

Rear Compartment Lid Inner Panel Trim Retainer (Qty: 12)

Rear Compartment Lid Inner Panel Trim
Procedure
Reposition the emergency release handle as required.
