Rear Compartment Lid Pull Handle Replacement

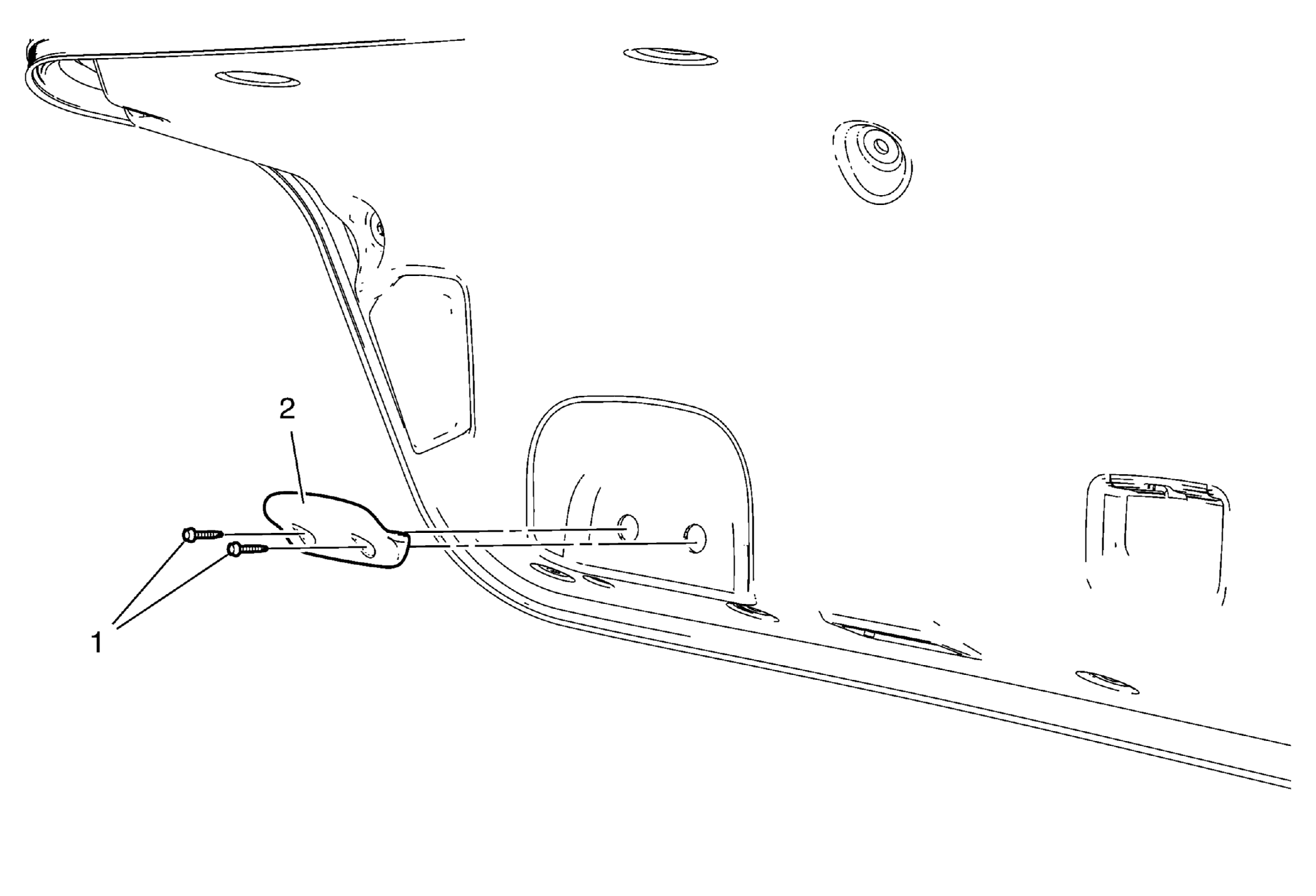

Fig 1: Rear Compartment Lid Pull Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Compartment Lid Pull Handle Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Compartment Lid Pull Handle
