Front Side Door Window Switch Bezel Replacement

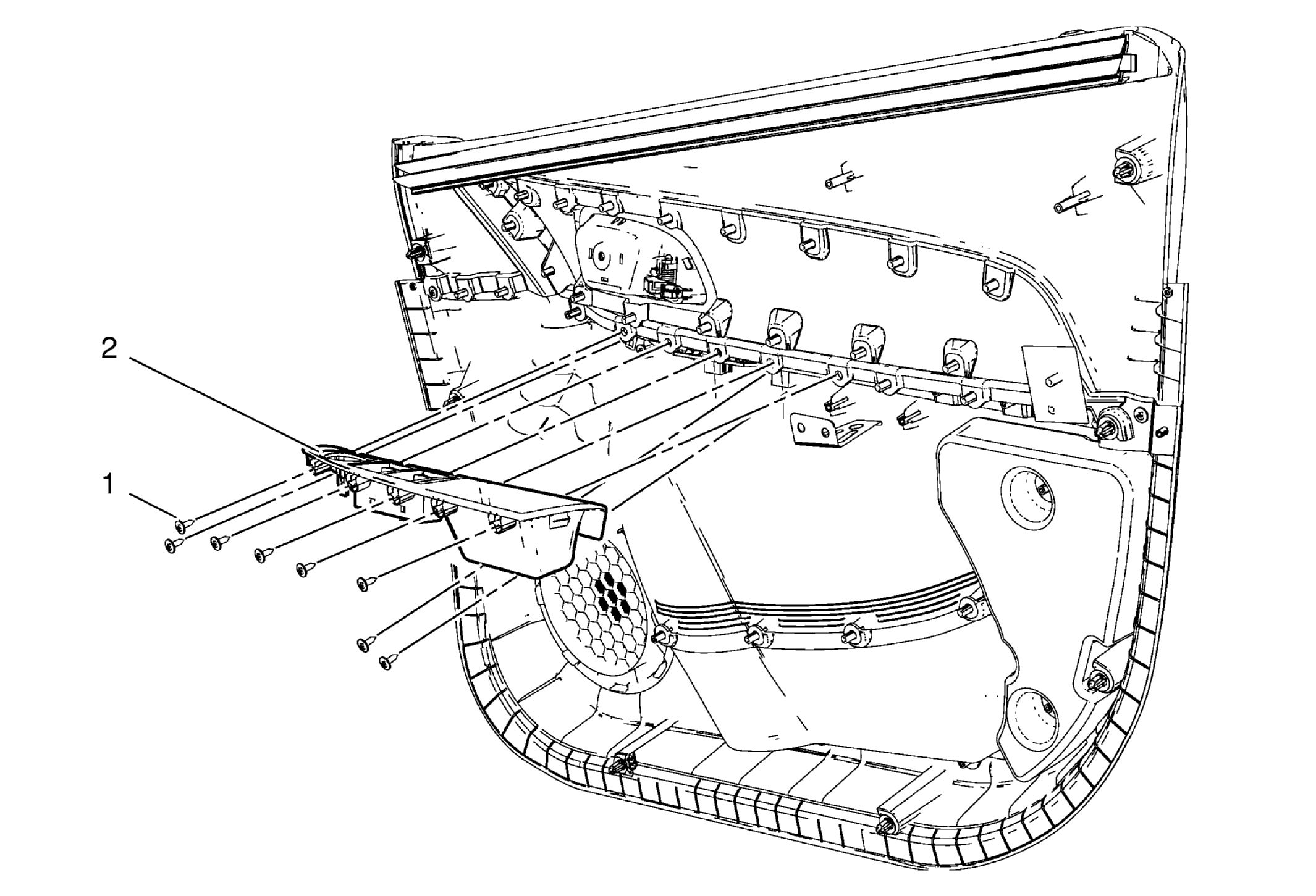

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front side door trim. Refer to Front Side Door Trim Replacement . |
|
| 1 | Front Side Door Window Switch Bezel Screw (Qty: 8)
CAUTION:
Refer to Fastener Caution
. Procedure Remove screws from the backside of the door trim panel. Tighten 2.5 N.m (22 lb in) |
| 2 | Front Side Door Window Switch Bezel Procedure Lift and remove the switch bezel from the door trim panel. |
