Front Side Door Upper Trim Cover Replacement

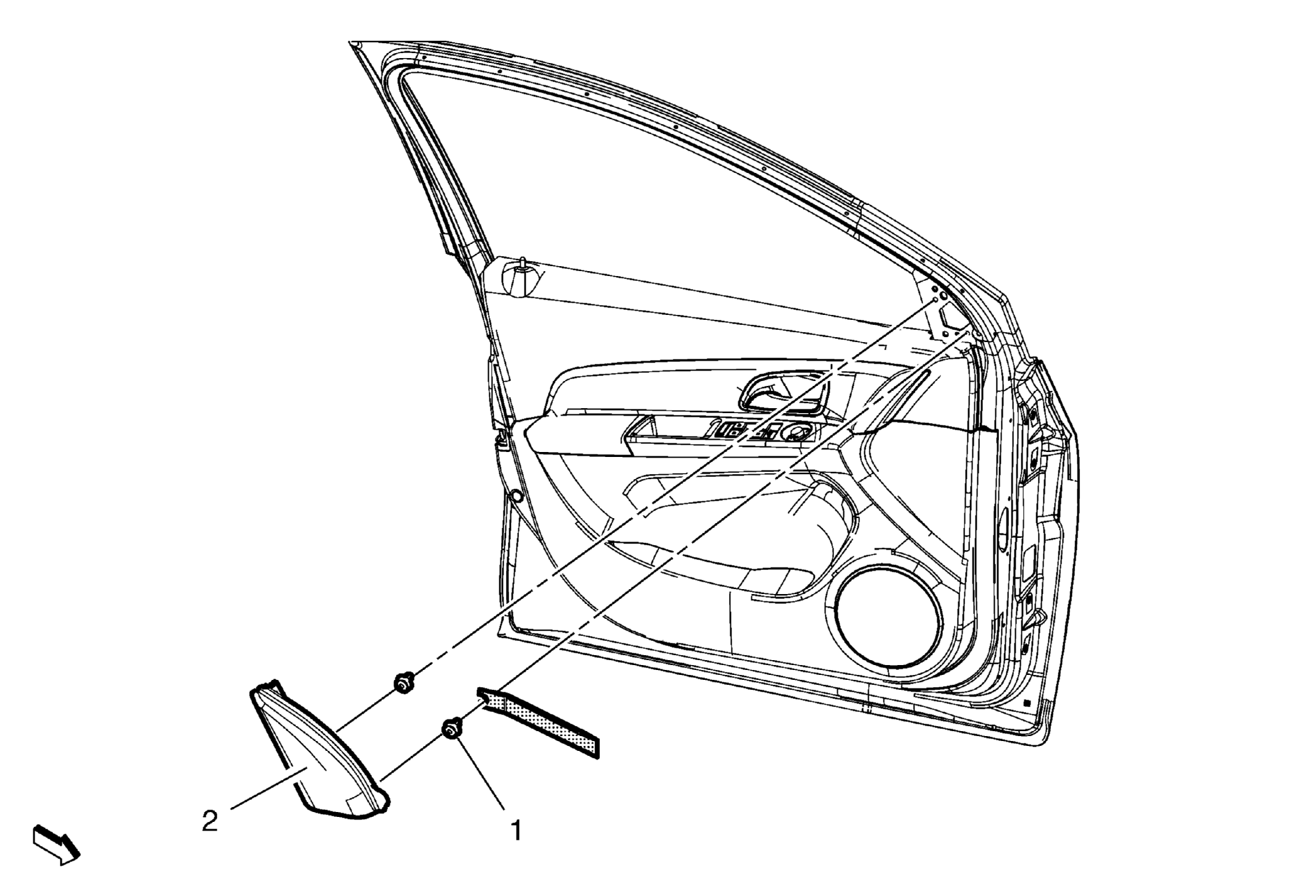

Fig 1: Front Side Door Upper Trim Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Upper Trim Cover Clip (Qty: 2) CAUTION: To prevent damage to the trim cover and clips, remember the following: DO NOT disengage the clips by pulling the trim cover for removal, since trim cover clips damage could result. If a detached clip is damaged or broken, it must be replaced. Properly align and gently press the trim cover for installation. Procedure Use B0-38778 remover or equivalent tools to disengage the front side door trim cover from the door. Special Tools B0-38778 Door Trim Panel Clip Remover For equivalent regional tools, refer to Special Tools .
2	Front Side Door Upper Trim Cover

Callout

Component Name

Front Side Door Upper Trim Cover Clip (Qty: 2)

CAUTION: To prevent damage to the trim cover and clips, remember the following:

DO NOT disengage the clips by pulling the trim cover for removal, since trim cover clips damage could result.
If a detached clip is damaged or broken, it must be replaced.
Properly align and gently press the trim cover for installation.

Procedure
Use B0-38778 remover or equivalent tools to disengage the front side door trim cover from the door.
Special Tools
B0-38778 Door Trim Panel Clip Remover
For equivalent regional tools, refer to Special Tools .

Front Side Door Upper Trim Cover
