Installation Procedure

  1. After comparing the new with the old harness install the harness (1) on the tie bar (2).

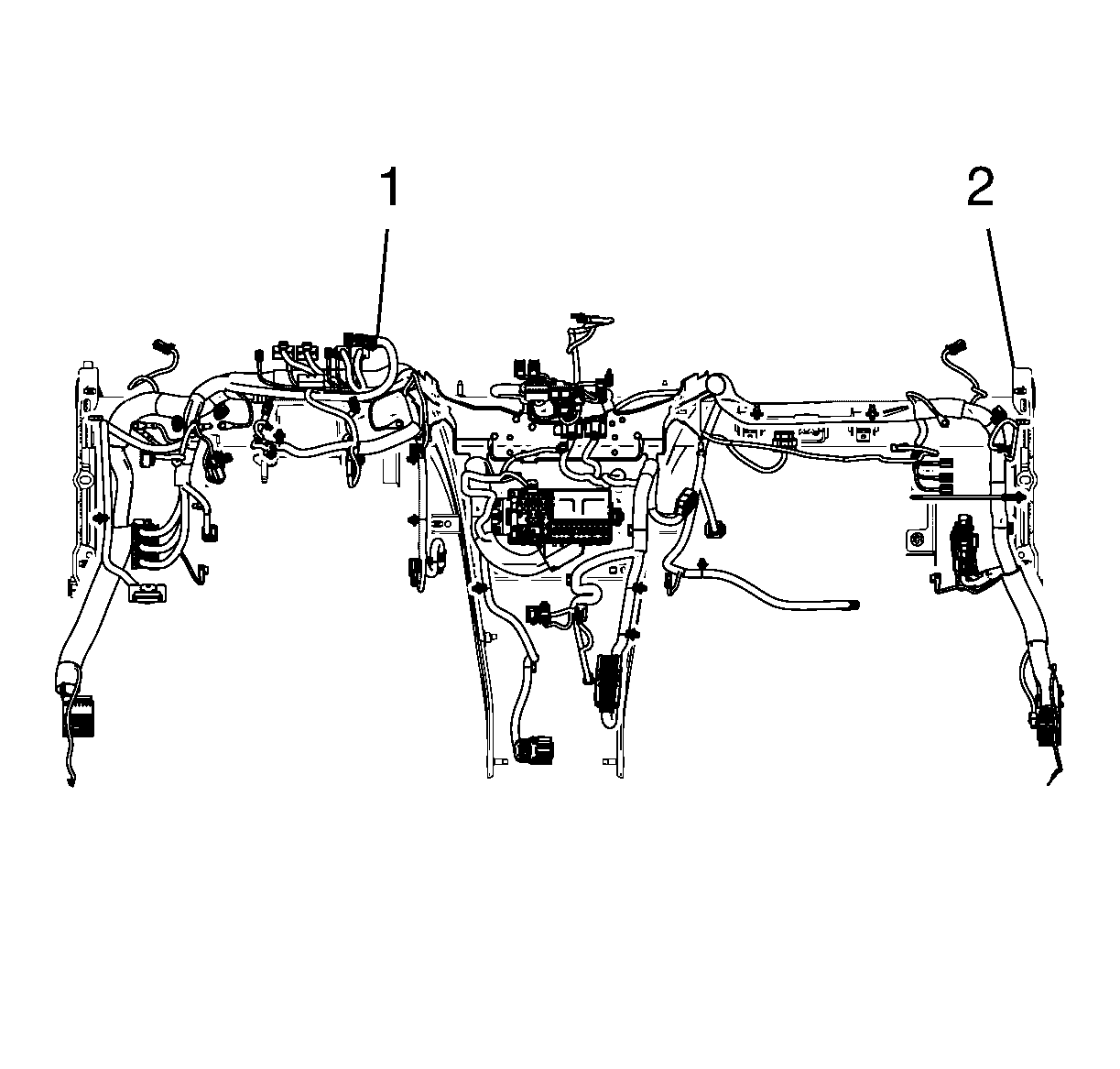

    Fig 1: Identifying Instrument Panel Wiring Harness And Instrument Panel Tie Bar
    GM3686312Courtesy of GENERAL MOTORS COMPANY
    • Check if there is no twisting and bending and fix the new wiring harness.
    • Use new cable straps and pins. Connect all electrical connectors.
    • Take care for the correct counterpart and the pin assignment.
    • Use the pictures for orientation.
  2. Tighten all mass cables to the weld studs to 9 N.m (80 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Instrument Panel Assembly Replacement »Install
  4. Battery Negative Cable Disconnection and Connection »Connect
  5. Install the MDI, turn on the ignition and read the diagnostic trouble codes.

    Delete all diagnostic trouble codes and read trouble codes again.

  6. Check all electrical functions and perform a test run.
