Instrument Panel Tie Bar Replacement

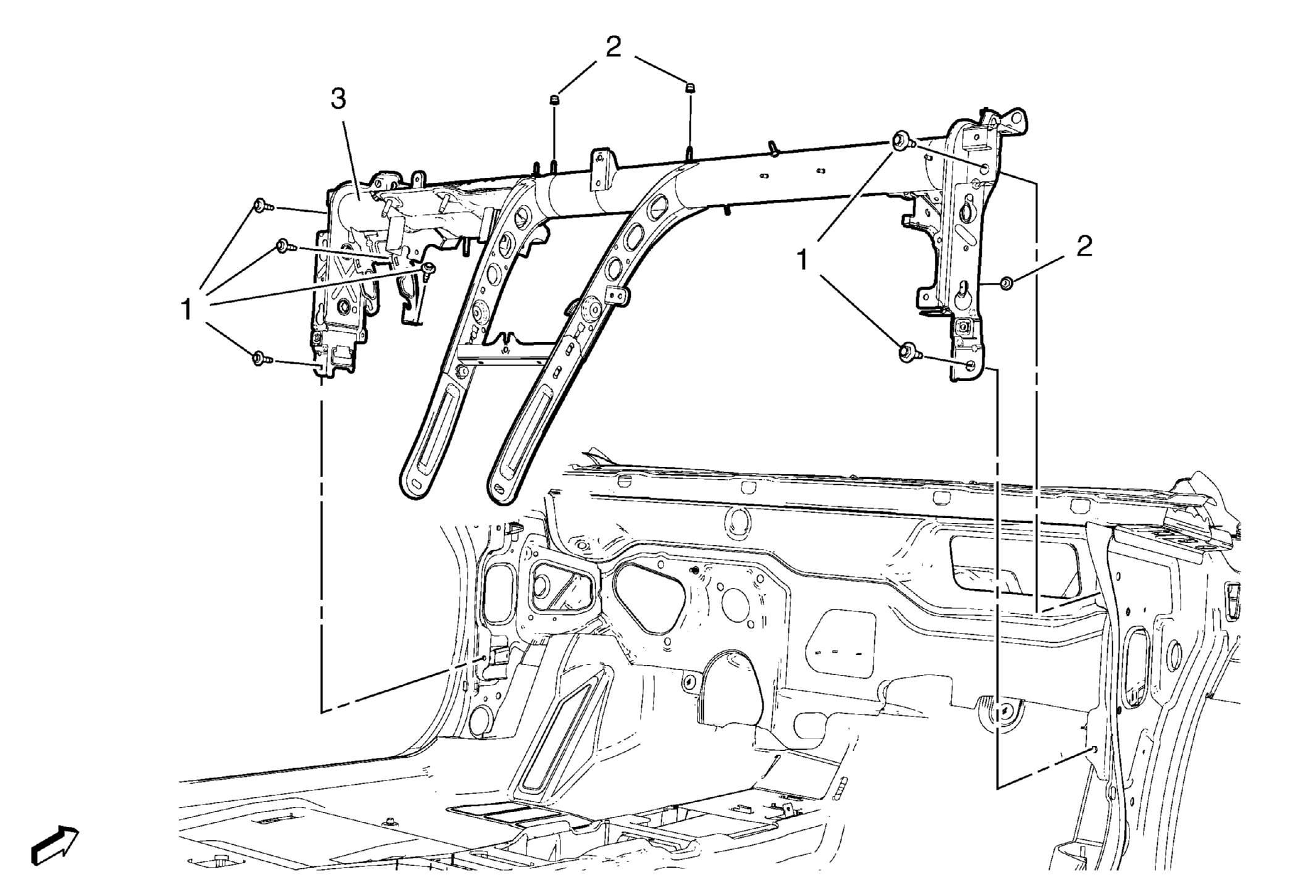

Fig 1: Instrument Panel Tie Bar

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Sill Trim Plate Replacement Instrument Panel Wiring Harness Replacement Instrument Panel Tie Bar Brace Replacement Brake, Accelerator and Clutch Pedal Replacement »Loosen
1	Instrument Panel Tie Bar Fastener [6x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Heater and Air Conditioning Evaporator Case Nut [3x] Tighten 5 N.m (44 lb in)
3	Instrument Panel Tie Bar Procedure Note location and routing of the I/P wiring harness prior to removal of the I/P tie bar assembly to ensure proper reinstallation. With the aid of an assistant, remove the I/P tie bar assembly from the vehicle. If replacing the I/P tie bar assembly, transfer all necessary components.
