Instrument Panel Tie Bar Brace Replacement

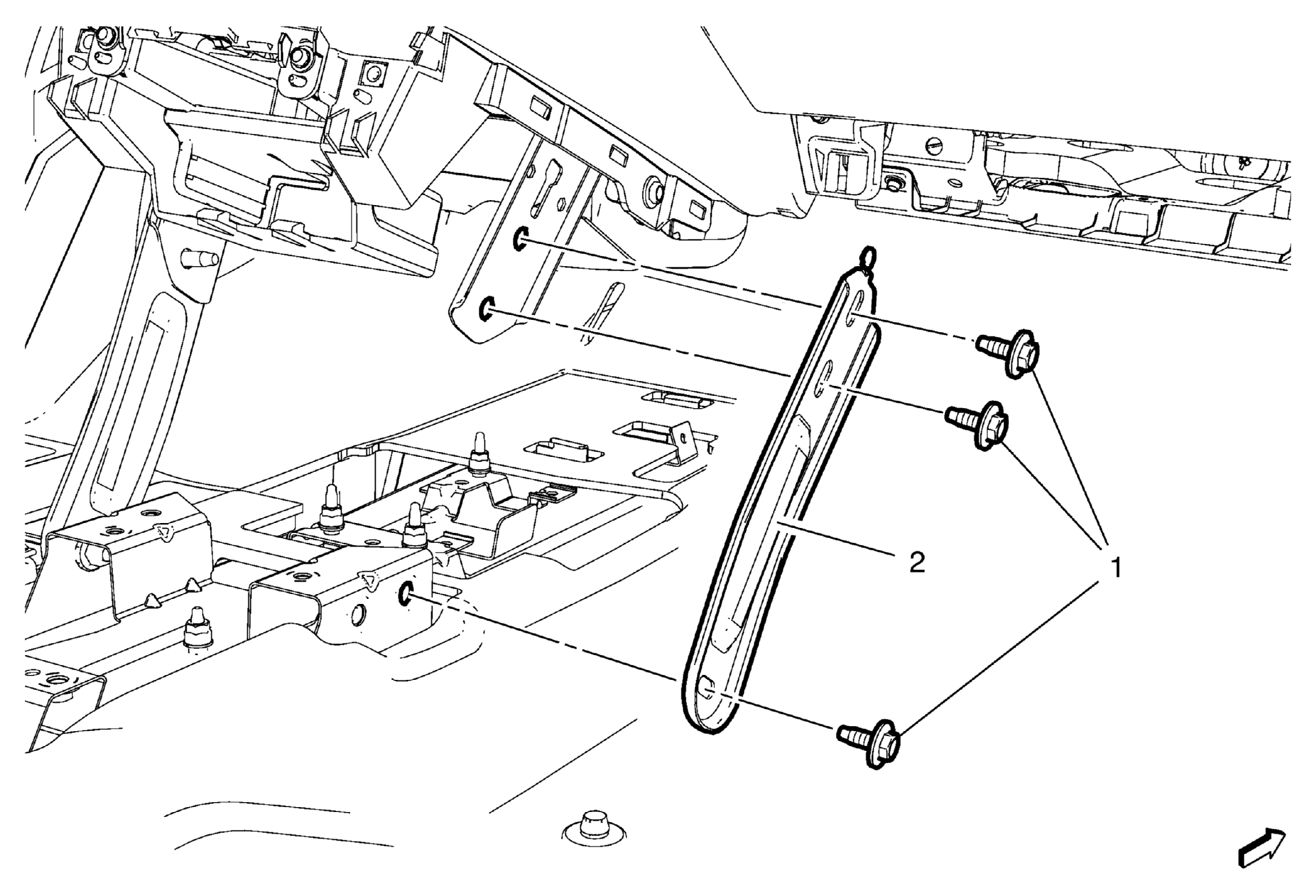

Fig 1: Instrument Panel Tie Bar Brace
GM2577155Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel lower trim panel - left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
  2. Remove the instrument panel lower trim panel - right side. Refer to Instrument Panel Lower Trim Panel Replacement - Right Side .
1 Instrument Panel Tie Bar Brace Fastener (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)
2 Instrument Panel Tie Bar Brace
