Headlamp Switch Replacement

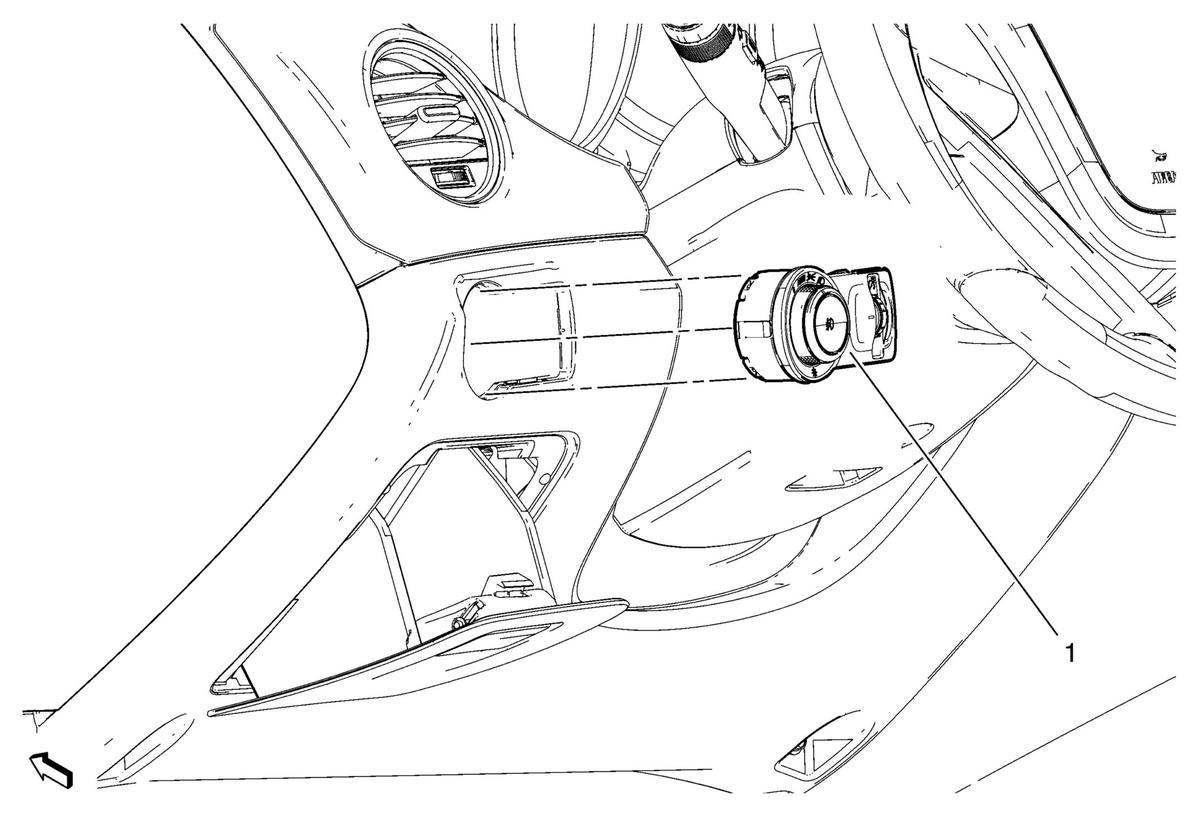

Fig 1: Headlamp Switch
GM2027483Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Headlamp Switch Assembly

Procedure

  1. Open the compartment or remove the fuse access cover to remove the headlamp switch.
  2. Disconnect the electrical connection.
