Instrument Panel Lower Airbag Replacement - Passenger Side

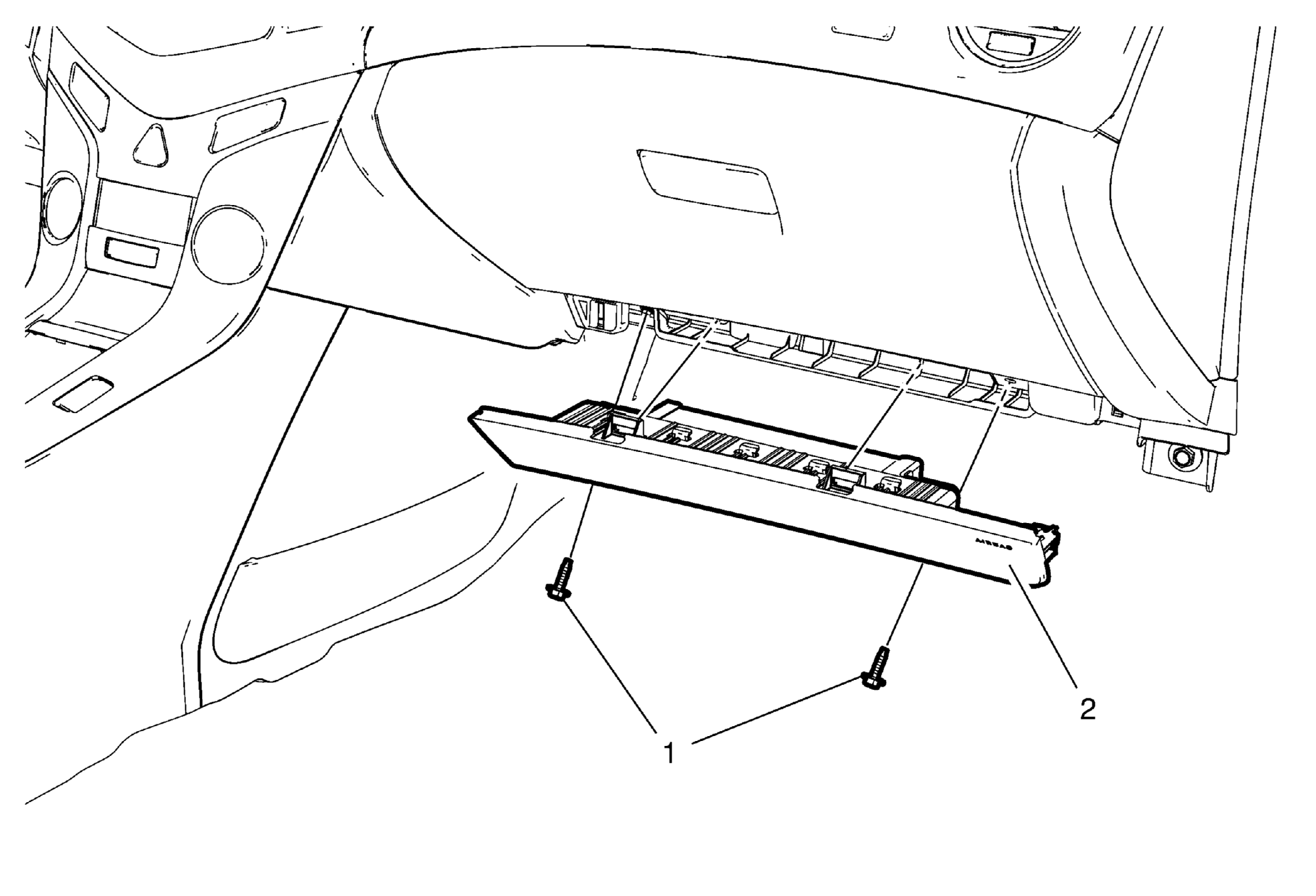

Fig 1: Inflatable Restraint Instrument Panel Lower Module And Fasteners
GM2373061Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to SIR Warning .

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the instrument panel insulator panel replacement - right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side
1 Inflatable Restraint Instrument Panel Lower Module Fastener (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)
2 Inflatable Restraint Instrument Panel Lower Module

Procedure

  1. Disconnect electrical connector.
  2. For proper handling and scrapping, refer to Inflatable Restraint Module Handling and Scrapping
