Instrument Panel Airbag Bracket Replacement

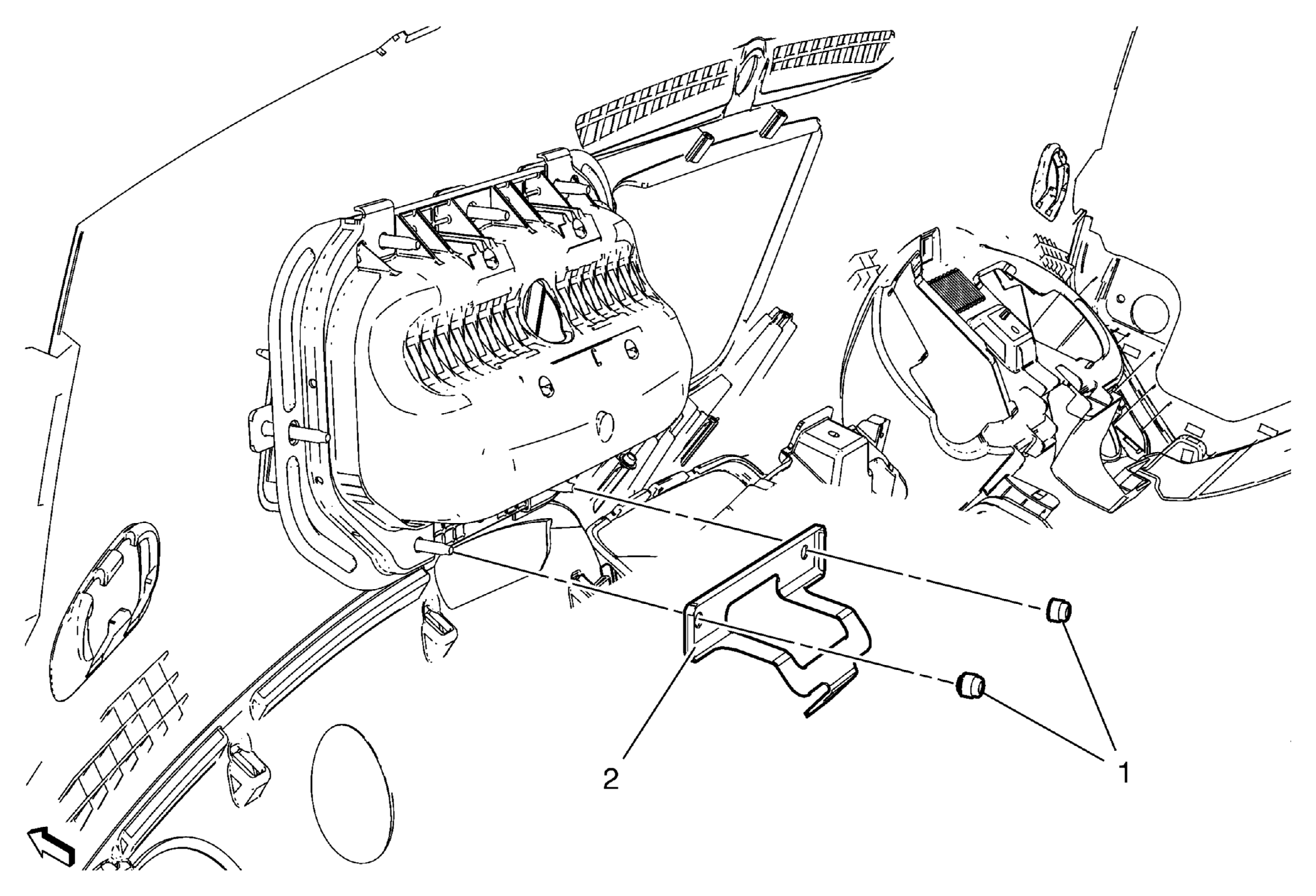

Fig 1: View Of Instrument Panel Inflatable Restraint Module Bracket Assembly And Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1	Instrument Panel Inflatable Restraint Module Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Instrument Panel Inflatable Restraint Module Bracket Assembly
